1-S20
GR1600EC2, WSM
ENGINE

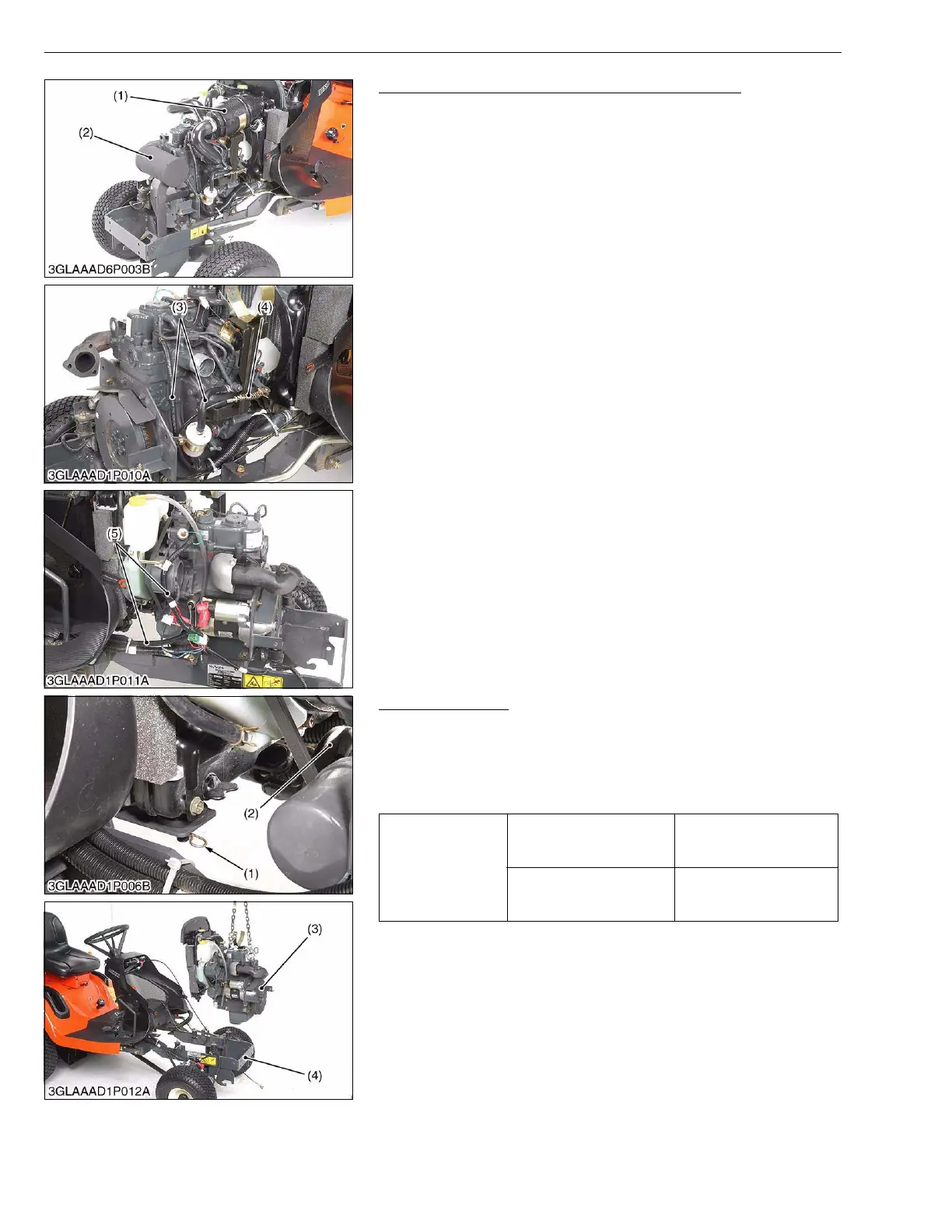

Air Cleaner, Muffler, Fuel Hose and Wire Harness
1. Remove the air cleaner (1) and muffler (2).
2. Disconnect the fuel hoses (3).
3. Disconnect the accelerator wire (4).
4. Disconnect the wire harness (5).
W1043365
Engine Assembly
1. Remove the radiator retaining snap pins (1).
2. Disconnect the front coupling (2).
3. Separate the engine assembly (3) with radiator from the frame
(4).
(When reassembling)
W1043585
(1) Air Cleaner
(2) Muffler
(3) Fuel Hose
(4) Accelerator Wire
(5) Wire Harness
Tightening torque
Front coupling mounting
screw
23.5 to 27.4 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 ft-lbs
Engine mounting nut
23.5 N·m
2.4 kgf·m
17.4 ft-lbs
(1) Radiator Retaining Snap Pin
(2) Front Coupling
(3) Engine Assembly
(4) Frame
To Next Page
