32
Wiring DISH Network Wally receivers requires
additional equipment and modified wiring
configurations, as explained below.
Wiring Wally Receivers
To wire Wally receivers, you need to install a
DISH Pro hybrid switch (model DPH42) (KVH
part no. 19-1122) in-line between the TV-Hub and
the receivers. To connect more than two Wally
receivers
(up to a maximum of 32) to the DPH42,
you also need one or more 2-way (19-1120) or
4-way (19-1121) channel stack splitters.
NOTE: Additional 2-way and 4-way channel stack
splitters are available from KVH.
Follow the steps below and on the proceeding
pages to connect Wally receivers to the
TracVision system.
Connecting 1 or 2 Wally Receivers
a. Connect an RF cable from the “Receiver” jack
on the TV-Hub to the first “To Dish” jack on a
DPH42.
b. Connect the first “Receiver Satellite In” jack
on the DPH42 to the “To Switch Input” jack
on the power inserter (supplied with the
DPH42).
NOTE: The SWM power inserter requires 120 VAC.
DC-AC power inverters are available from third party
suppliers, if required.
c. Connect the "To Receiver Satellite In" jack on
the power inserter to the “Satellite In” jack on
the receiver.
d. If desired, connect the second “Receiver
Satellite In” jack on the DPH42 to the
“Satellite In” jack on the second receiver (see
Figure 29).

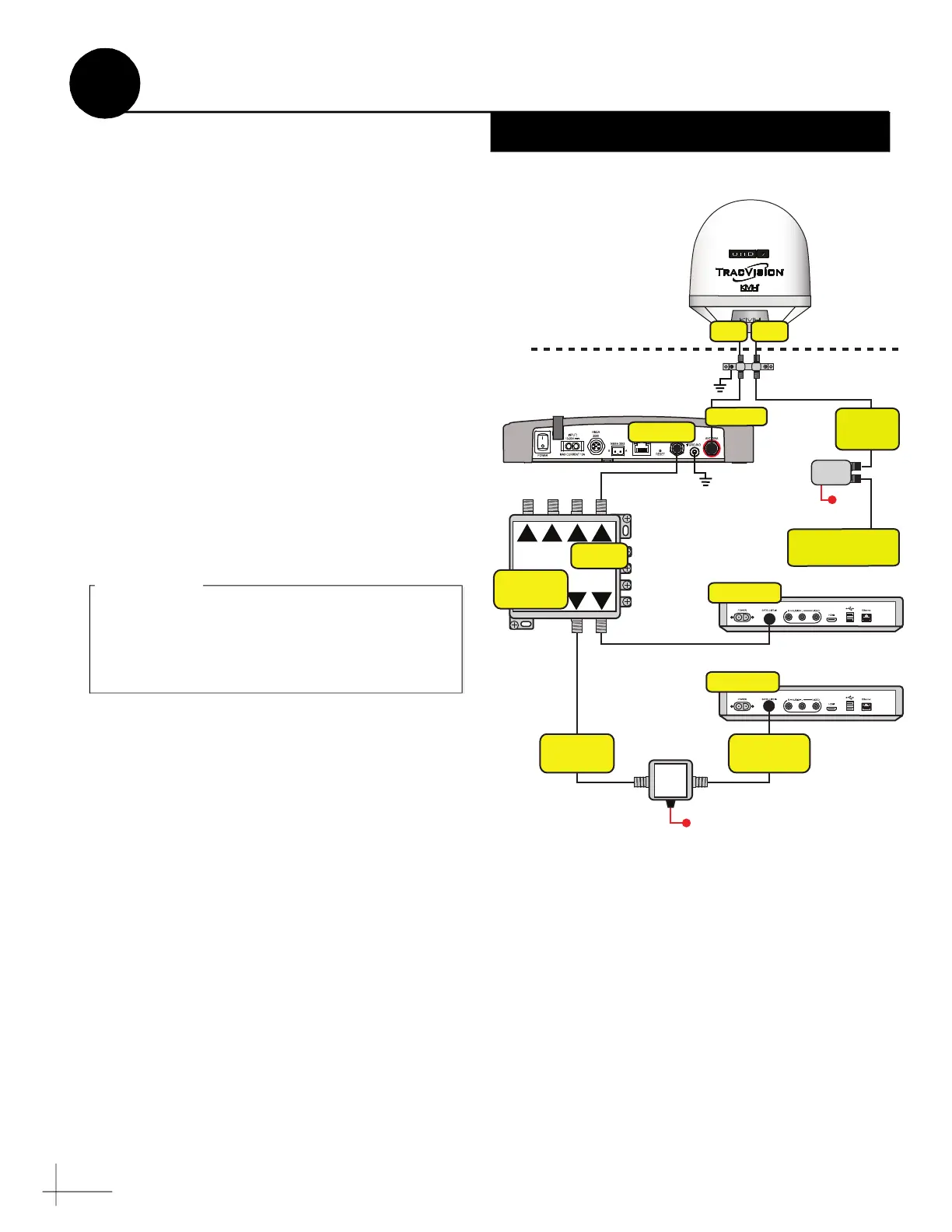

Figure 51: Wiring 1 or 2 DISH Wally Receiver
DIRECTV U.S.
SWM Receivers
Deck
Antenna
AC Power
SWM
Power
Inserter
POWER
TO SWM
TV-Hub
Receiver
4
3
1
2
2
1
DPH42
Satellite In
Wally Receiver
Receiver
Satellite In
To Dish
Satellite In
Wally Receiver
Power
Inserter
AC Power
To Receiver
Satellite In
To Switch
Input
Grounding
Block
RF1 RF2
Antenna
A Using Wally Receivers
Appendix
You must connect the SWM power inserter to
the antenna’s RF2 cable for all DISH
configurations. The SWM power inserter
supplies power to the antenna’s LNB.
IMPORTANT!
