KVH Industries TracVision UHD7 Installation Guide

34
Connecting Up to 16 Wally Receivers
a. Connect an RF cable from the “Receiver” jack
on the TV-Hub to the first “To Dish” jack on
the DPH42.
b. Connect the first “Receiver Satellite In” jack
on the DPH42 to the “To Switch Input” jack
on the power inserter (supplied with the
DPH42).
NOTE: The SWM power inserter requires 120 VAC.
DC-AC power inverters are available from third party
suppliers, if required.
c. Connect the "To Receiver Satellite In" jack on
the power inserter to the “In” jack on a 2-way
or 4-way channel stack splitter.
d. Connect the channel stack splitter’s outputs
to any combination of 2-way and 4-way
channel stack splitters, as necessary.
e. Connect the outputs of all the splitters to the
“Satellite In” jacks of up to a maximum of 16
Wally receivers (see Figure 53).

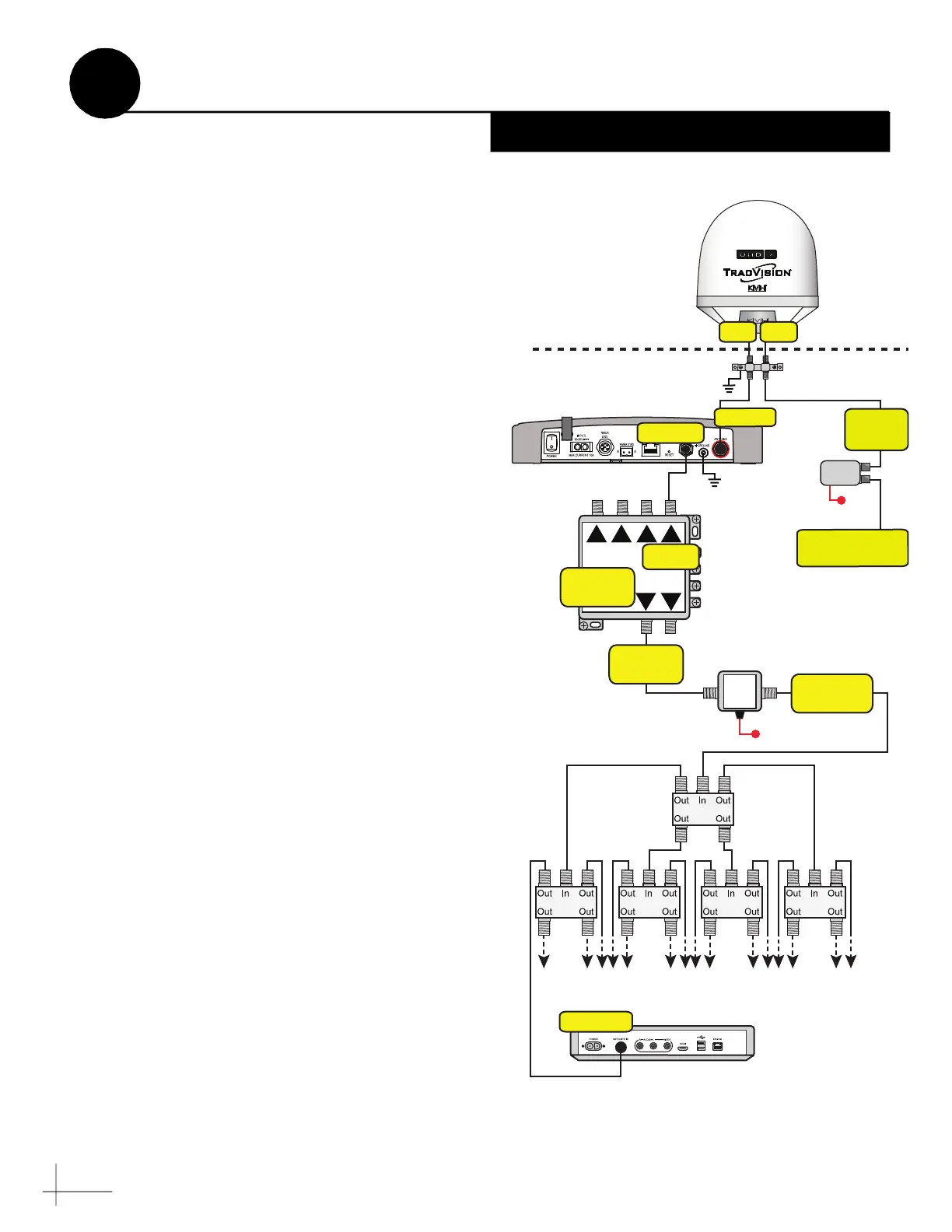

Figure 53: Wiring Up to 16 Wally Receivers
DIRECTV U.S.
SWM Receivers
Deck
TV-Hub
Grounding
Block
RF1
Antenna
Antenna
AC Power
SWM
Power
Inserter
POWER
TO SWM
RF2
Receiver
Connect up to 16 Wally receivers (Max.)
Channel
Stack
4-Way
Splitters
Satellite In
Wally Receiver
4
3
1
2
2
1
DPH42
Receiver
Satellite In
To Dish
Power
Inserter
AC Power
To Receiver
Satellite In
To Switch
Input
Continued Using Wally Receivers
A
Appendix
