Connecting a Mix of Wally and Non-Wally Receivers
a. Connect an RF cable from the “Receiver” jack
on the TV-Hub to the “Antenna” jack on the
DC block splitter (supplied in kit).
b. Connect the “Primary” jack on the DC block
splitter to the first “To Dish” jack on the
DPH42.
c. Connect the first “Receiver Satellite In” jack
on the DPH42 to the “To Switch Input” jack
on the power inserter (supplied with the
DPH42).
NOTE: The SWM power inserter requires 120 VAC.
DC-AC power inverters are available from third party
suppliers, if required.
d. Connect the "To Receiver Satellite In" jack on
the power inserter to the “In” jack on a 2-way
or 4-way channel stack splitter.
e. Connect the channel stack splitter’s outputs
to any combination of 2-way and 4-way
channel stack splitters, as necessary.
f. Connect the outputs of all the channel stack
splitters to the “Satellite In” jacks of up to 16
Wally
receivers.
g. Connect up to 16 receivers at the second
“Receiver Satellite In” jack, using any
combination of 2-way and 4-way channel
stack splitters, as necessary, to connect a
maximum of 32 Wally receivers.
h. Connect the “Secondary” jack on the DC
block splitter to the “18V” port on a
multiswitch. KVH offers a 4-output passive
multiswitch (KVH part no. 72-0676) and an
8-output active multiswitch (KVH part no.
72-0677).
i. Connect the multiswitch outputs to the
“Satellite In” jacks on non-Wally receivers
(see Figure 55).

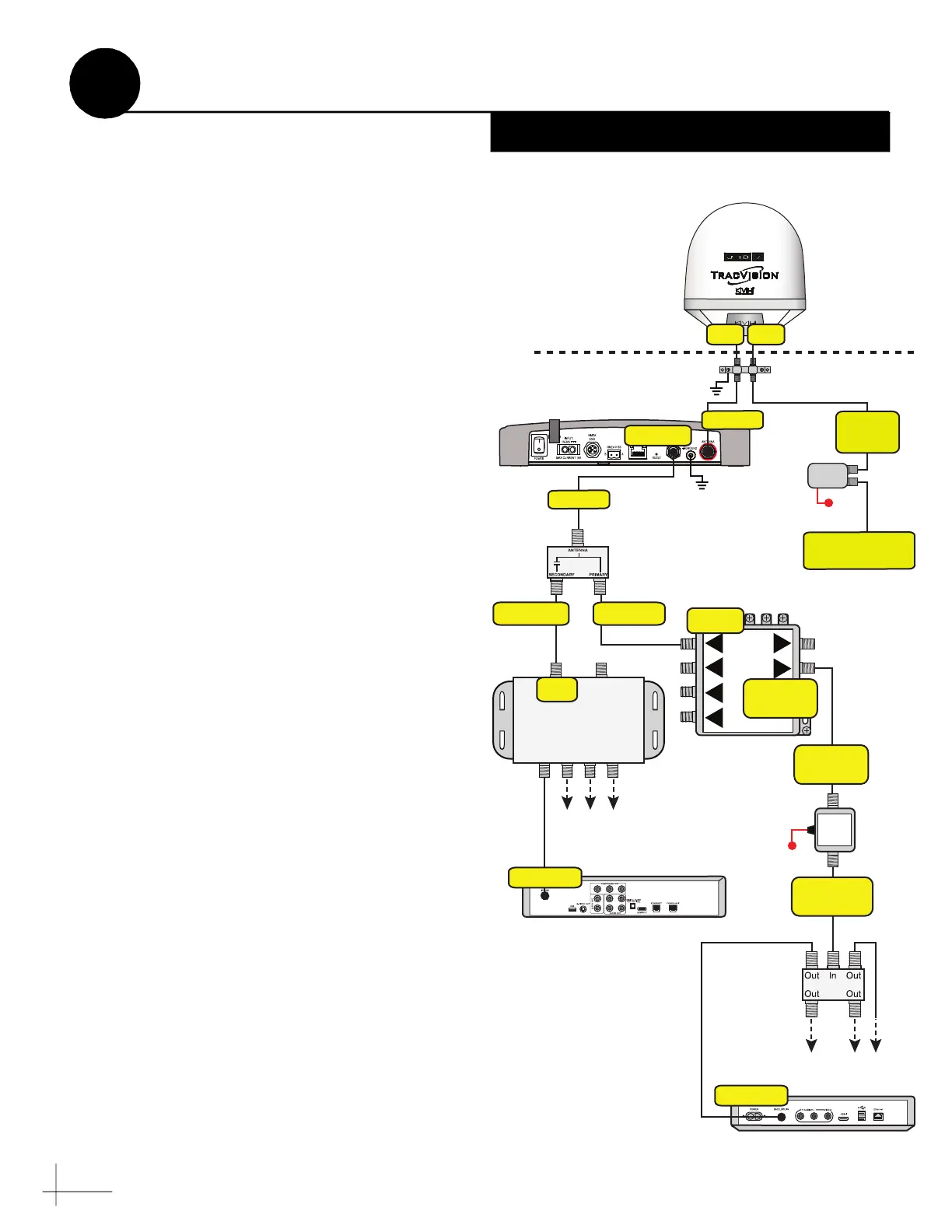

Figure 55: Wiring a Mix of Wally/Non-Wally Receivers
DIRECTV U.S.
SWM Receivers
Deck
TV-Hub
Grounding
Block
RF1
Antenna
Antenna
AC Power
SWM
Power
Inserter
POWER
TO SWM
RF2
Receiver
4-Way
Channel
Stack
Splitter
DC Block
Splitter
Secondary Primary
Connect DISH Pro
non-Wally Receivers
13V18V
Multiswitch
18V
Connect Wally receivers
Antenna
Satellite In
Satellite In
Wally Receiver
Non-Wally Receiver
4
3
1
2
2
1
DPH42
Receiver
Satellite In
To Dish
Power
Inserter
AC
Power
To Switch
Input
To Receiver
Satellite In
Continued Using Wally Receivers
