KYMCO DINK50 - Crankcase Assembly

10. CRANKCASE/CRANKSHAFT
10-7

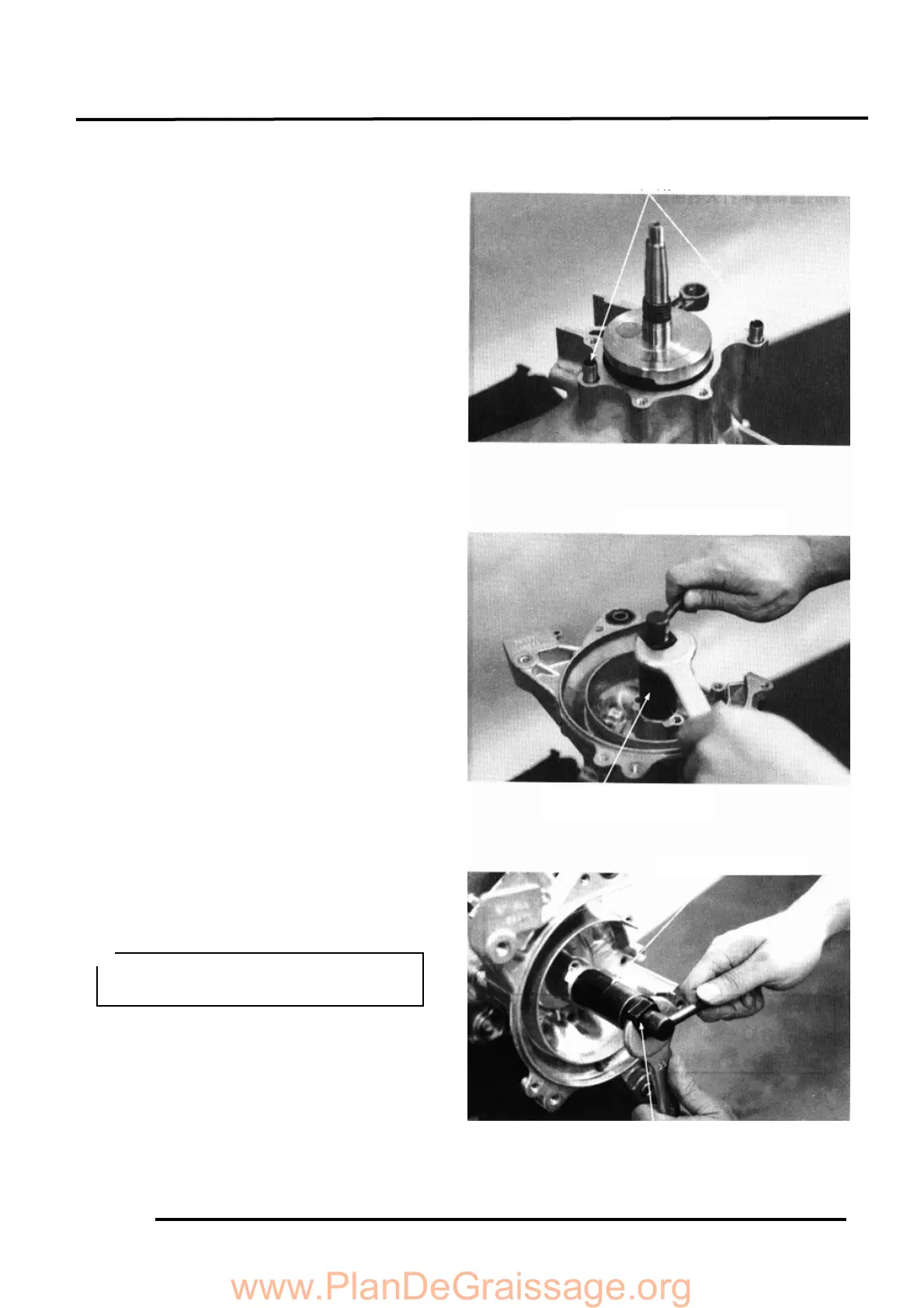

CRANKCASE ASSEMBLY
Install the dowel pins and a new gasket to
the crankcase mating surface.
Assemble the crankcase halves.
The distance between the right crankcase oil
seal and crankcase surface is about 12.5±0.5
mm.
When installing the oil seal, be careful to
press it with even force.
＊
Dowel Pins
Crankcase Assembly Collar
Crankcase Assembly Tool
Crankcase Assembly Tool
