KYMCO DINK50 - Float Chamber

12. CARBURETOR/FUEL PUMP
12-8
AUTO BYSTARTER INSTALLATION
Install the auto bystarter into the carburetor
body until it bottoms..
Install the set plate and then tighten the two
screws.

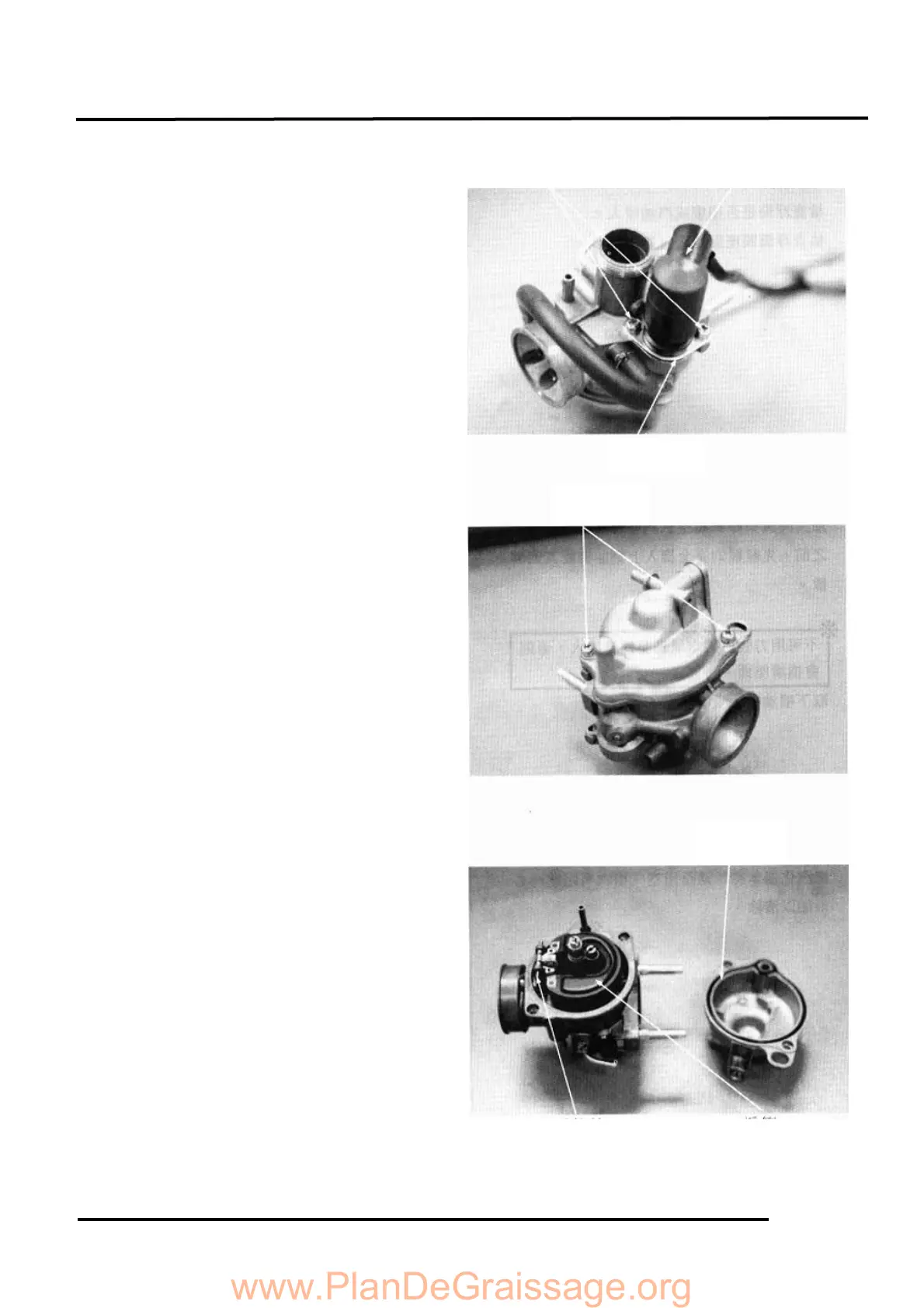

FLOAT CHAMBER
Remove the two float chamber screws and
the float chamber.
Remove the screw and O-ring.
Remove the float pin, float and float valve.
Auto Bystarter
Float
Bolt
O-ring
Set Plate
Float Pin
Screws
Bolt
Screws
Bolt
