DRIVE BELT
Remove the left crankcase cover.
INSPECTION
Check the drive belt for cracks, separation
or abnormal or excessive wear.

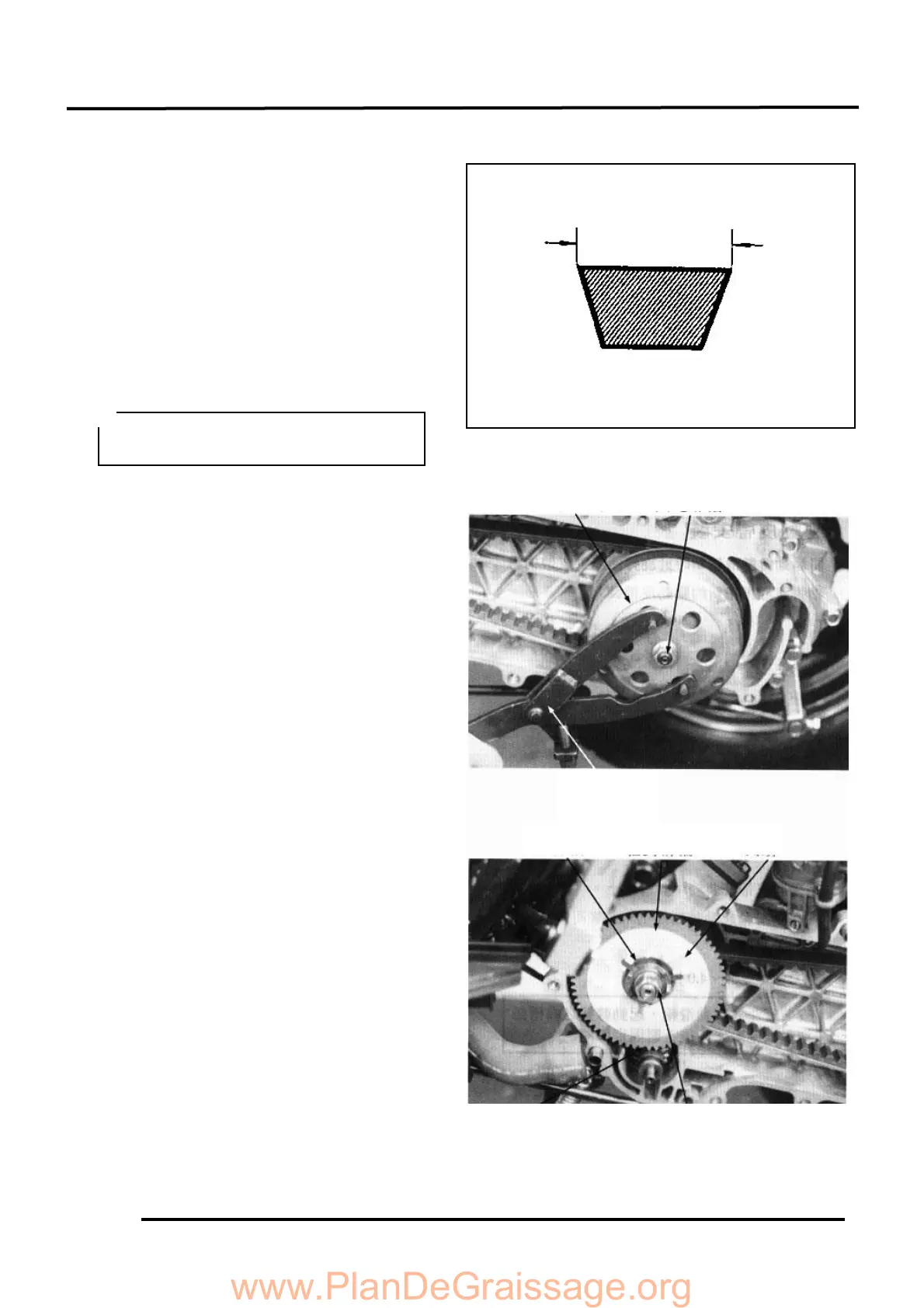

Measure the drive belt width.
Service Limit:
SH10BA: 16.5mm replace if below
SH10AA: 16.5mm replace if below
REPLACEMENT
Remove the nine left crankcase cover bolts
and left crankcase cover. (
7-3)
Hold the clutch outer with the universal
holder and remove the 10mm clutch outer
nut and clutch outer.
Hold the drive pulley with the holder and
remove the 12mm drive face nut.
Remove the starting ratchet.
Remove the drive pulley face.
