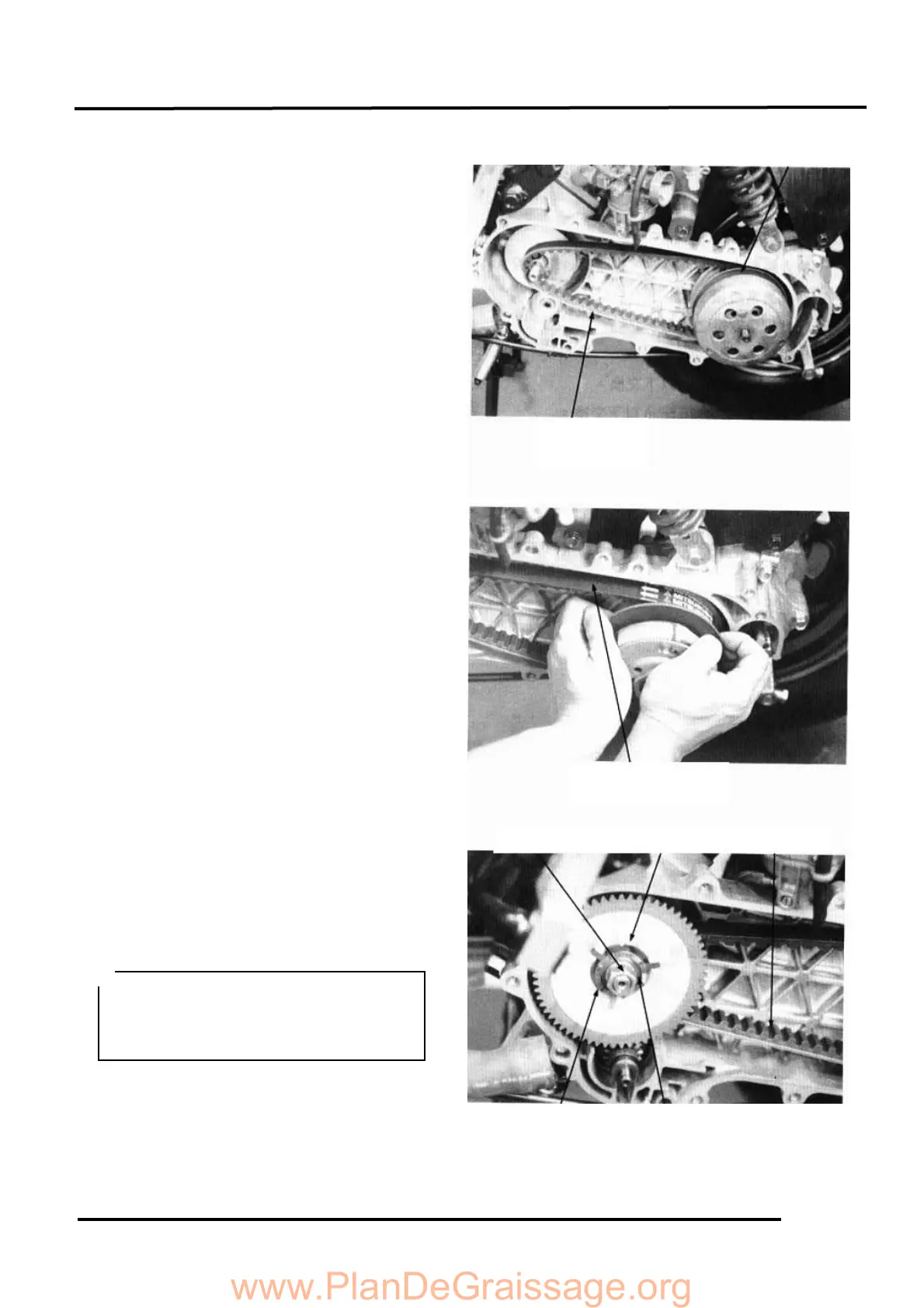

Remove the drive belt from the clutch/
driven pulley.
DRIVE BELT INSTALLATION
Turn the driven pulley clockwise and lift it
up to expand the drive belt groove and then
install a new drive belt.
Set the drive belt on the drive pulley.
Install the drive pulley face, starting ratchet
and 12mm washer, then tighten the drive
face nut.
Torque: 3.5_ 4.0kg-m
When installing the drive face nut, make
sure that the tooth spaces of the drive
pulley face and starting ratchet align
with the teeth of the crankshaft.
