19. SWITCHES/HORN/FUEL UNIT/THERMOSTATIC SWITCH
/TEMPERATURE GAUGE/INSTRUMENTS/LIGHTS
19-3
SWITCHES

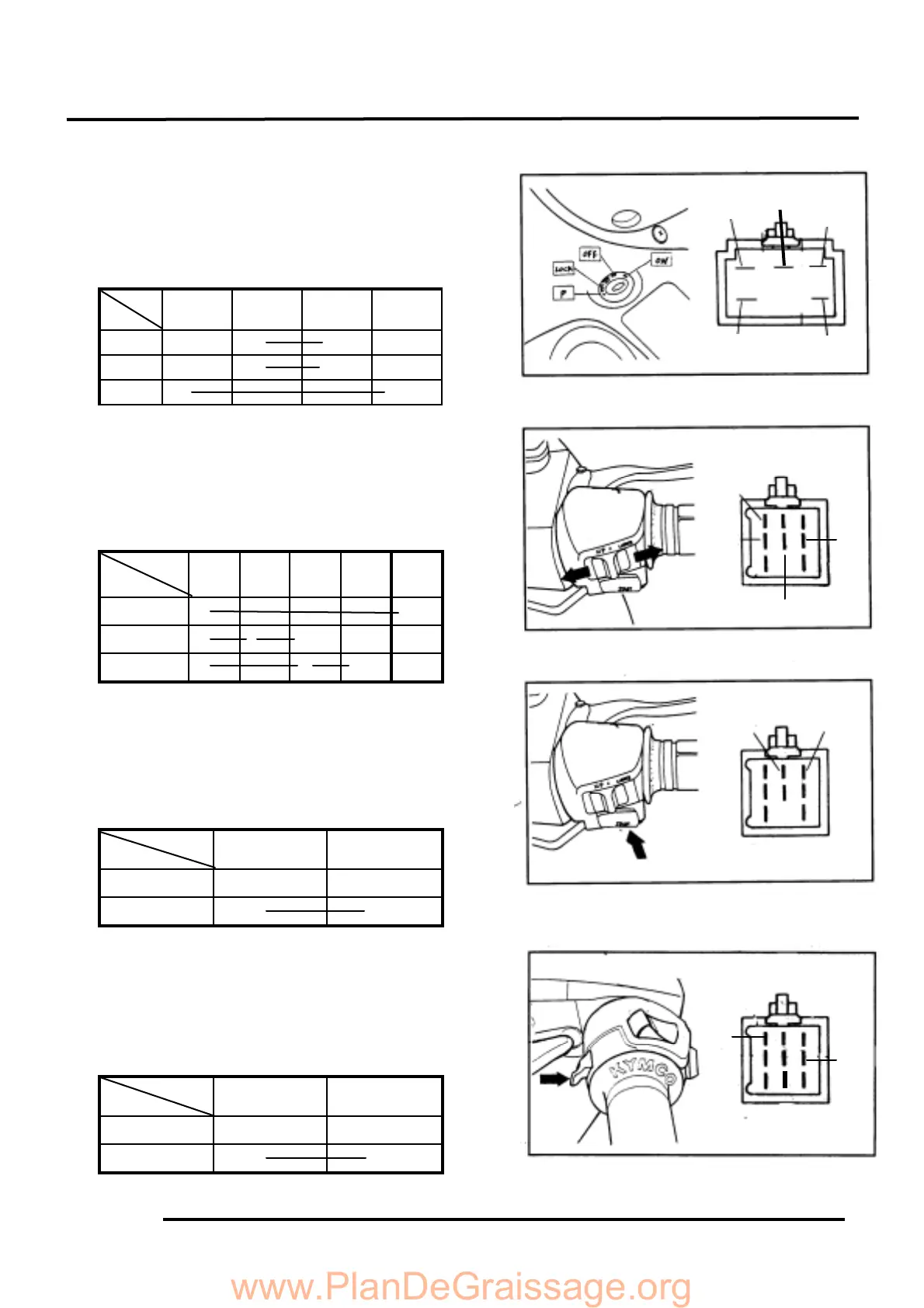

IGNITION SWITCH INSPECTION
Remove the frame front covers. (

2-5)
Disconnect the ignition switch wire couplers.
Check for continuity between the wire
terminals.
Color
Position
R
B/W
G
B
LOCK
○
○
OFF
○
○
ON
○
○
HEADLIGHT SWITCH INSPECTION
Remove the frame front covers. (

2-5)
Disconnect the headlight switch wire
couplers. Check for continuity between the
wire terminals.
Color
Position
Y
BR/W
BR
L/W
P

○
○
P
○
○
○
H
○
○
○
STARTER SWITCH INSPECTION
Remove the frame front covers. (

2-5)
Disconnect the starter switch wire couplers.
Depress the starter button and check for
continuity between the wire terminals.
Color
Position
Y/R
G
FREE
PUSH
○
○
PASSING SWITCH
Remove the front upper cover. (

2-5)
Disconnect the headlight switch wire
couplers. Check for continuity between the
passing switch wire terminals.
Color
Position
L
L/W
FREE
PUSH
○
○
Passing Switch
Ignition Switch
Headlight Switch
G
B
B/W
G
R
BR
Y
L/W
P
G
Y/R
L
L/W
Starter Switch
Passing
