KYMCO DINK50 - Brake System

3. INSPECTION/ADJUSTMENT
3-4
BRAKE SYSTEM

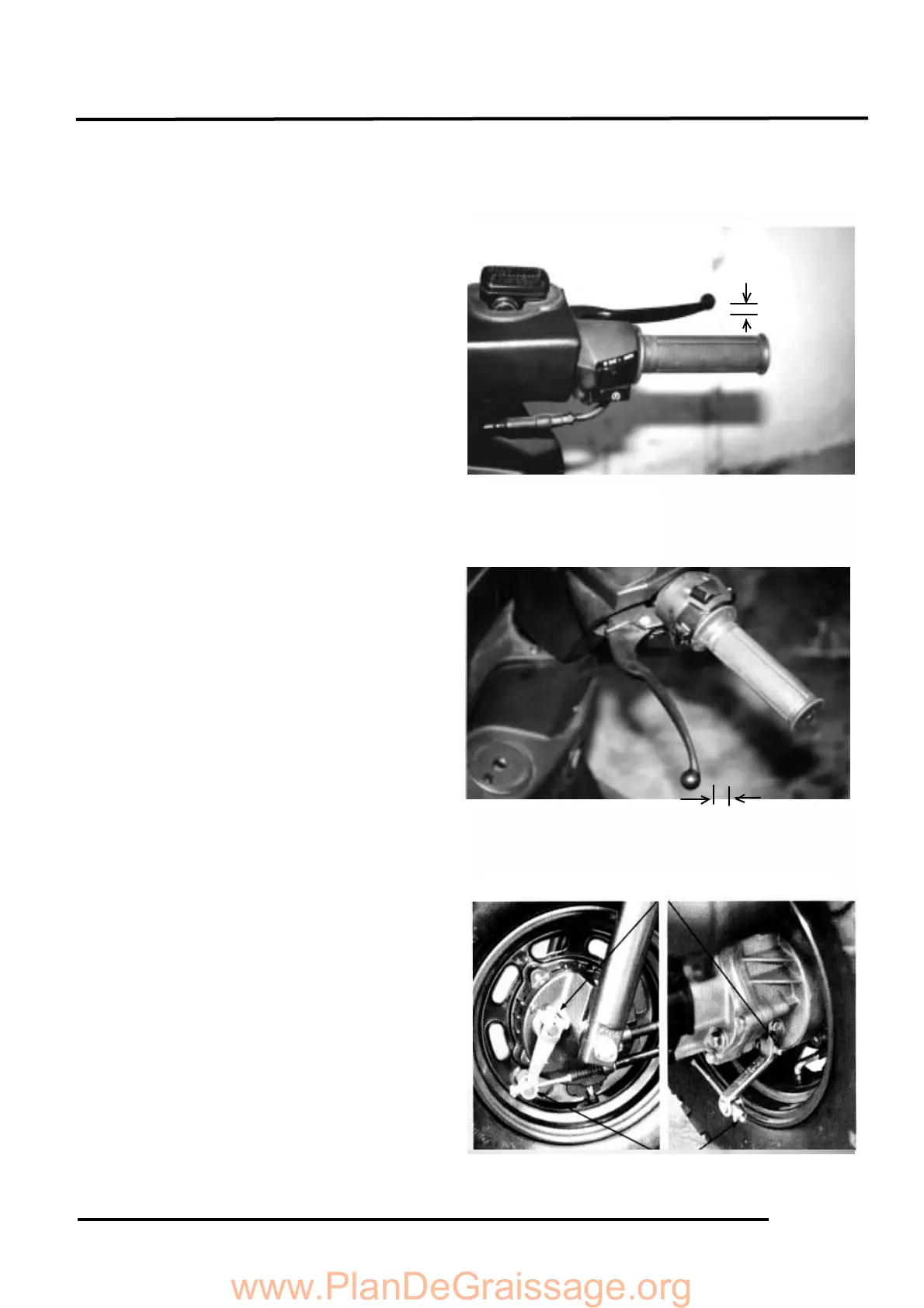

BRAKE LEVER
《 Free Play》
Measure the front and rear brake lever free
plays.
Free Play: Front: 10_ 20mm
Rear: 10_ 20mm
If the free plays do not fall within the
limits, turn the right and left adjusting nuts
for adjustment.
<Front> “△ ” Marks <Rear>
Adjusting Nuts
Front 10_ 20mm
Rear 10_ 20mm
