3. INSPECTION/ADJUSTMENT
3-12
FUEL SYSTEM

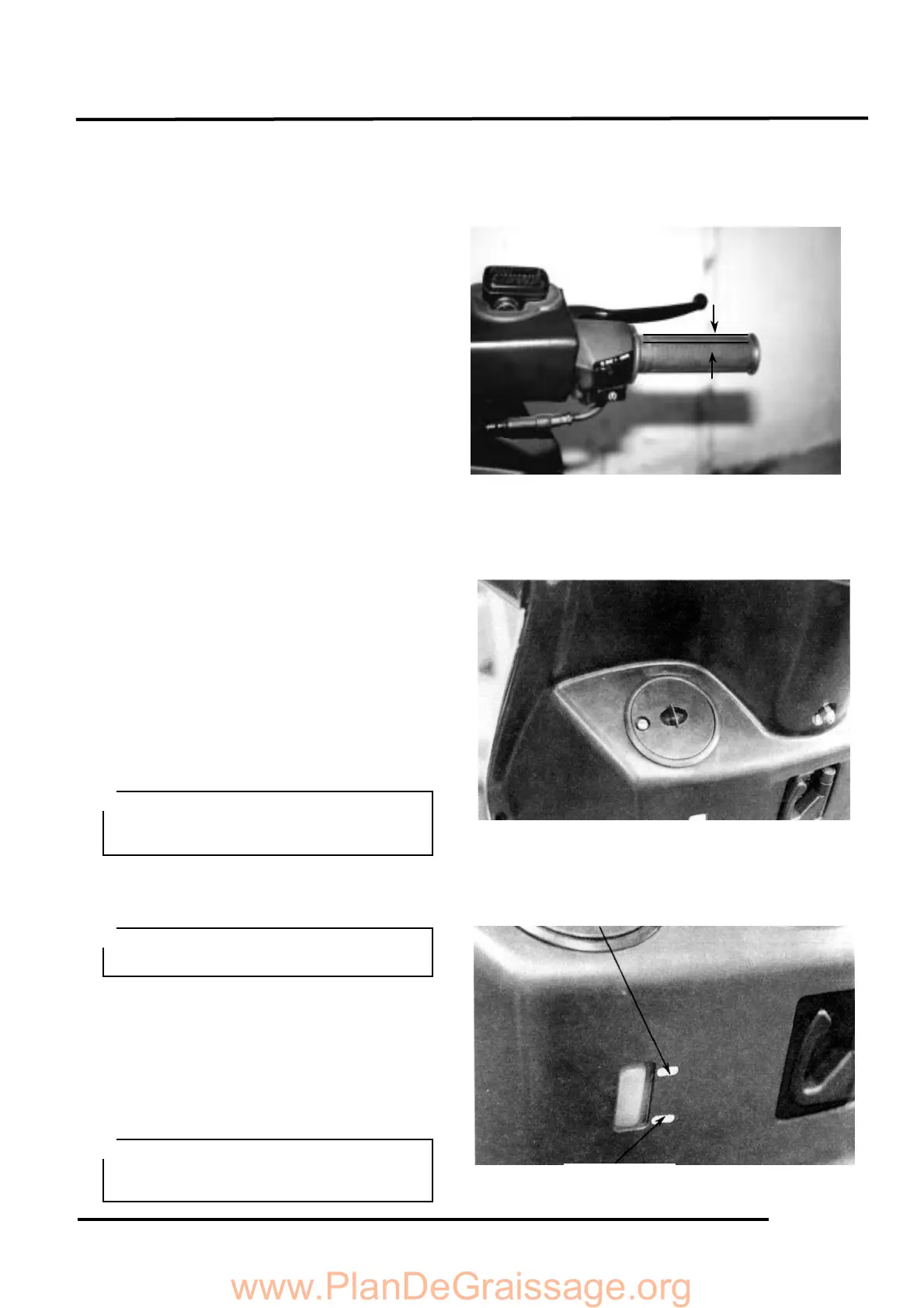

《 Throttle Grip Free Play》
Measure the throttle grip free play.
Free Play: 2_ 6mm
If the throttle grip free play does not fall
within the specified range, adjust by
loosening the lock nut and turning the
adjusting nut.
OTHERS
LIGHTS
《 Headlight》
Adjust the headlight beam by loosening the
headlight adjusting bolt and moving the
adjusting bolt forward and backward to a
proper position. Tighten the adjusting bolt.
COOLING SYSTEM
COOLANT LEVEL INSPECTION
Place the motorcycle on its main stand on
level ground.
Check the coolant level of the reserve tank
and the level should be between the upper
and lower level lines.
If necessary, fill the reserve tank with
recommended coolant to the “F” level line.
Recommended Coolant: SIGMA Coolant
(Standard Concentration 30%)
COOLANT REPLACEMENT
Remove the front cover.
Remove the radiator cap.
Remove the water hose to drain the coolant
and tilt the motorcycle to the right and the
coolant will drain more easily.
Drain the coolant in the reserve tank.
Reinstall the water hose.
Fill the radiator with the specified coolant.
• The coolant level does not change no
matter the engine is warm or cold. Fill
to the “F” (upper) line.
＊
• The coolant freezing point should be
5℃ lower than the temperature of
the riding area.
＊
• Perform this operation when the engine
is cold.
＊
Lower Line
Upper Line
