KYMCO DINK50 - Drive Pulley

7. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
7-9

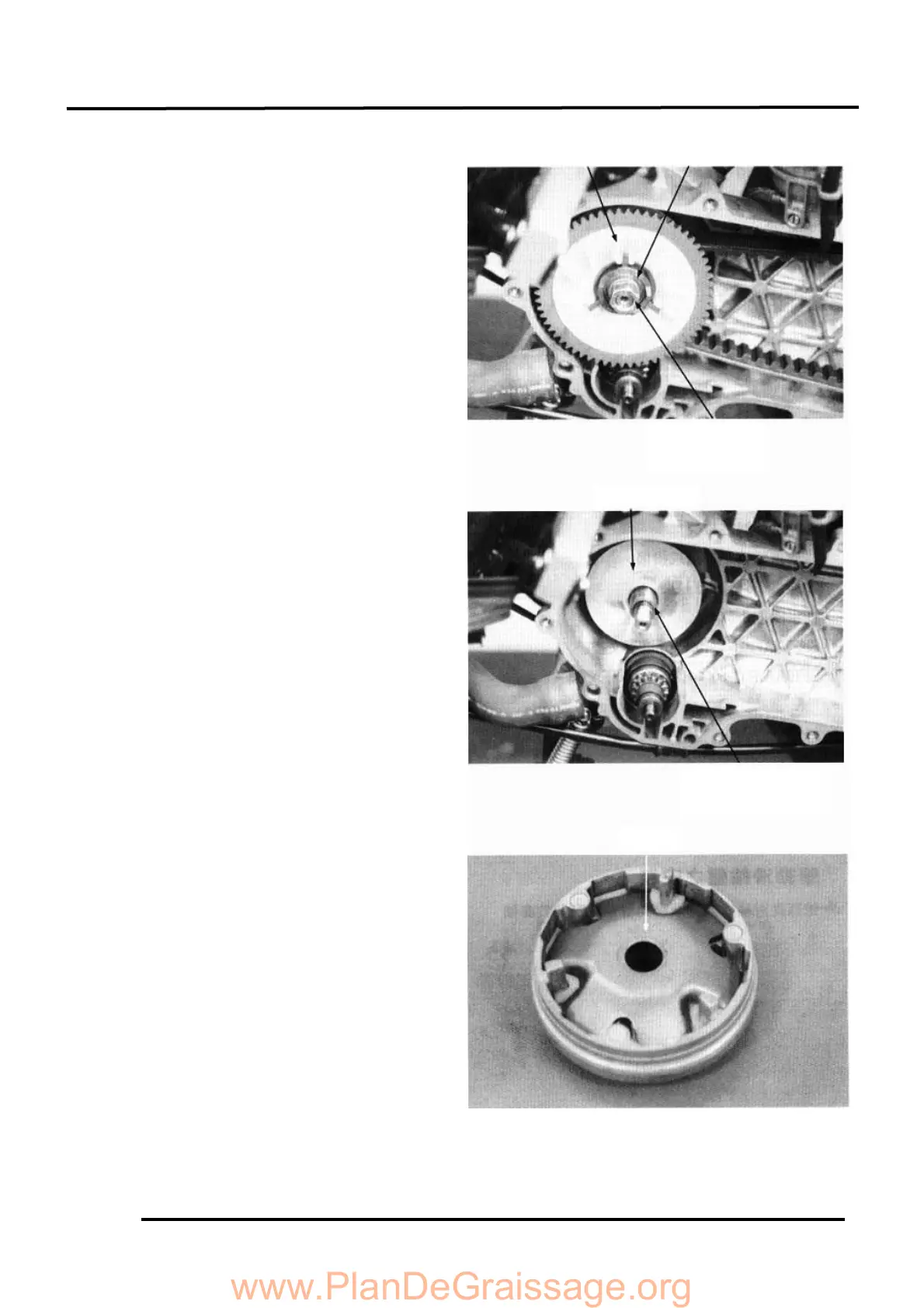

DRIVE PULLEY
REMOVAL
Hold the drive pulley with the holder and
remove the 12mm drive face nut.
Remove the starting ratchet, 12mm washer
and drive pulley face.
MOVABLE DRIVE FACE
DISASSEMBLY
Remove the movable drive face and drive
pulley collar from the crankshaft.
Remove the ramp plate.
Movable Drive Face
Ramp Plate
Drive Pulley Collar
12mm Drive Face Nut
Starting Ratchet
Drive Pulley Face
