7. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY
7-10

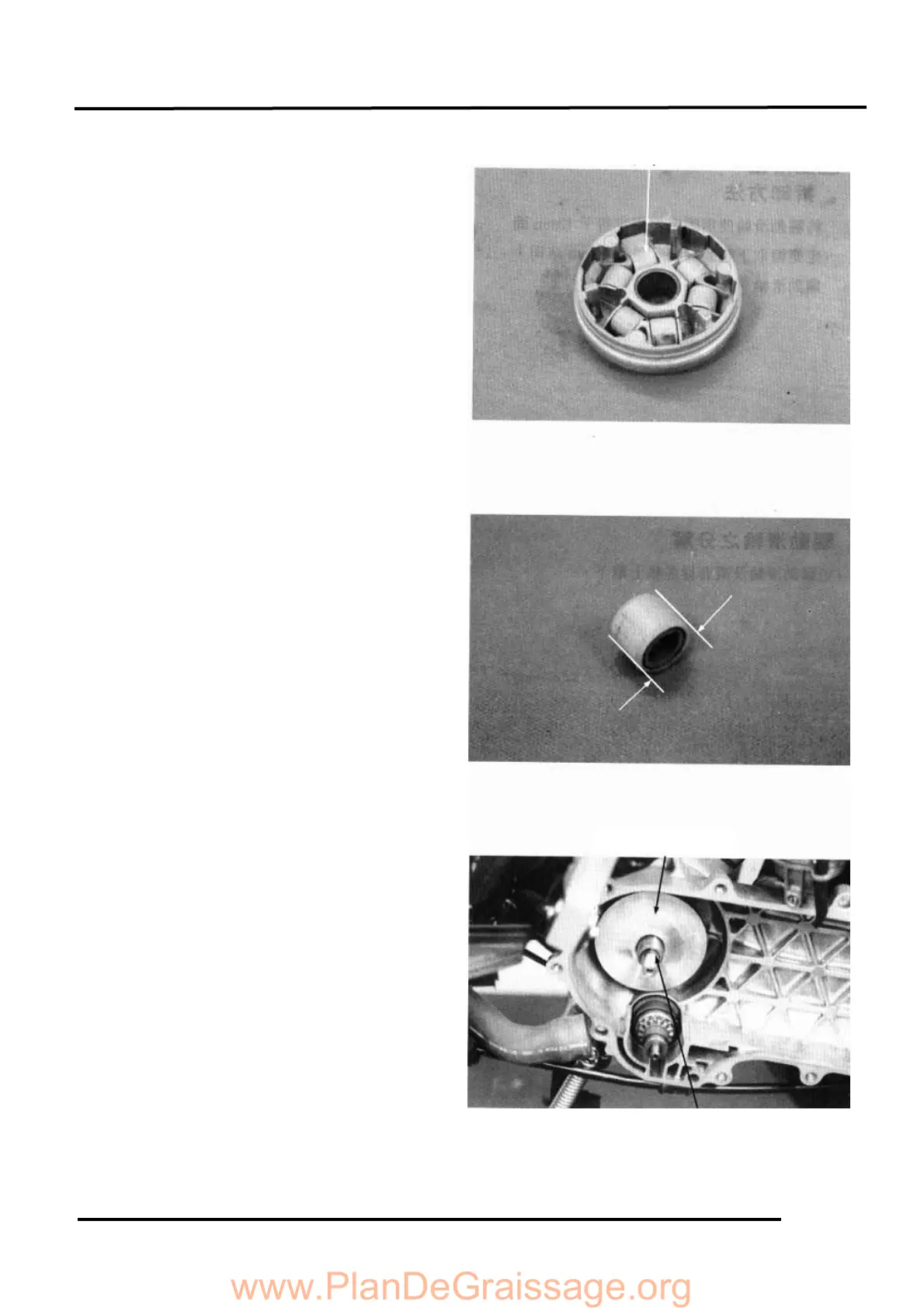

Remove the weight rollers.
MOVABLE DRIVE FACE INSPECTION
Check each weight roller for wear or
damage.
Measure each roller O.D.
Service Limit:
SH10BA: 12.4mm replace if below
SH10AA: 12.4mm replace if below
DRIVE PULLEY INSTALLATION
Install the drive pulley collar and movable
drive face onto the crankshaft.
Weight Roller
Movable Drive Face
Drive Pulley Collar
