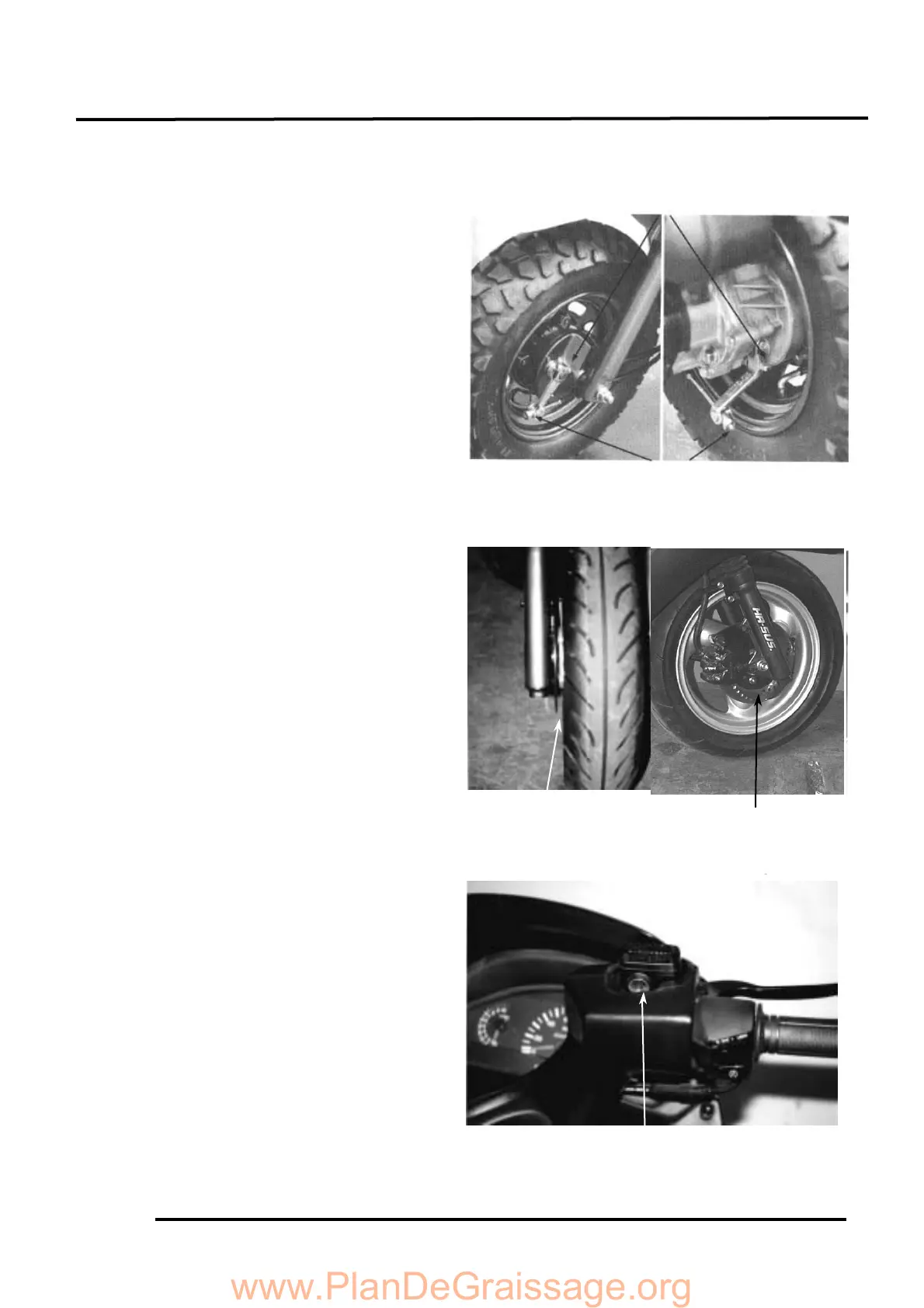

BRAKE DRUM/SHOE
《 Brake Shoe Wear》
Replace the brake shoes if the arrow on the
brake arm aligns with reference mark“△ ”
on the brake panel when the brake is fully
applied.
《 Brake Drum Wear/Damage》
Check the brake drum appearance for
damage. Check if the brake lining wear is
within the specified service limit. Check
the brake operation for abnormal noise and
brake drum inside for wear or damage.
BRAKE DISK/LINING
《 Brake Disk Surface and Brake Pad
Wear》
Check the brake disk surface for scratch.
Check if the brake pad wear is within the
specified service limit.
《 Brake Disk Runout Inspection》
Jack the motorcycle wheels off the ground
and check if the brake disk runout is within
the specified service limit.
BRAKE FLUID LEVEL INSPECTION
《 Brake Master Cylinder Fluid Level
Inspection》
Turn the steering handlebar upright and
check if the front brake fluid level is within
the specified limits through the front brake
master cylinder check hole.
To Next Page
