KYMCO DINK50 - Page 211

19. SWITCHES/HORN/FUEL UNIT/THERMOSTATIC SWITCH
/TEMPERATURE GAUGE/INSTRUMENTS/LIGHTS
19-4

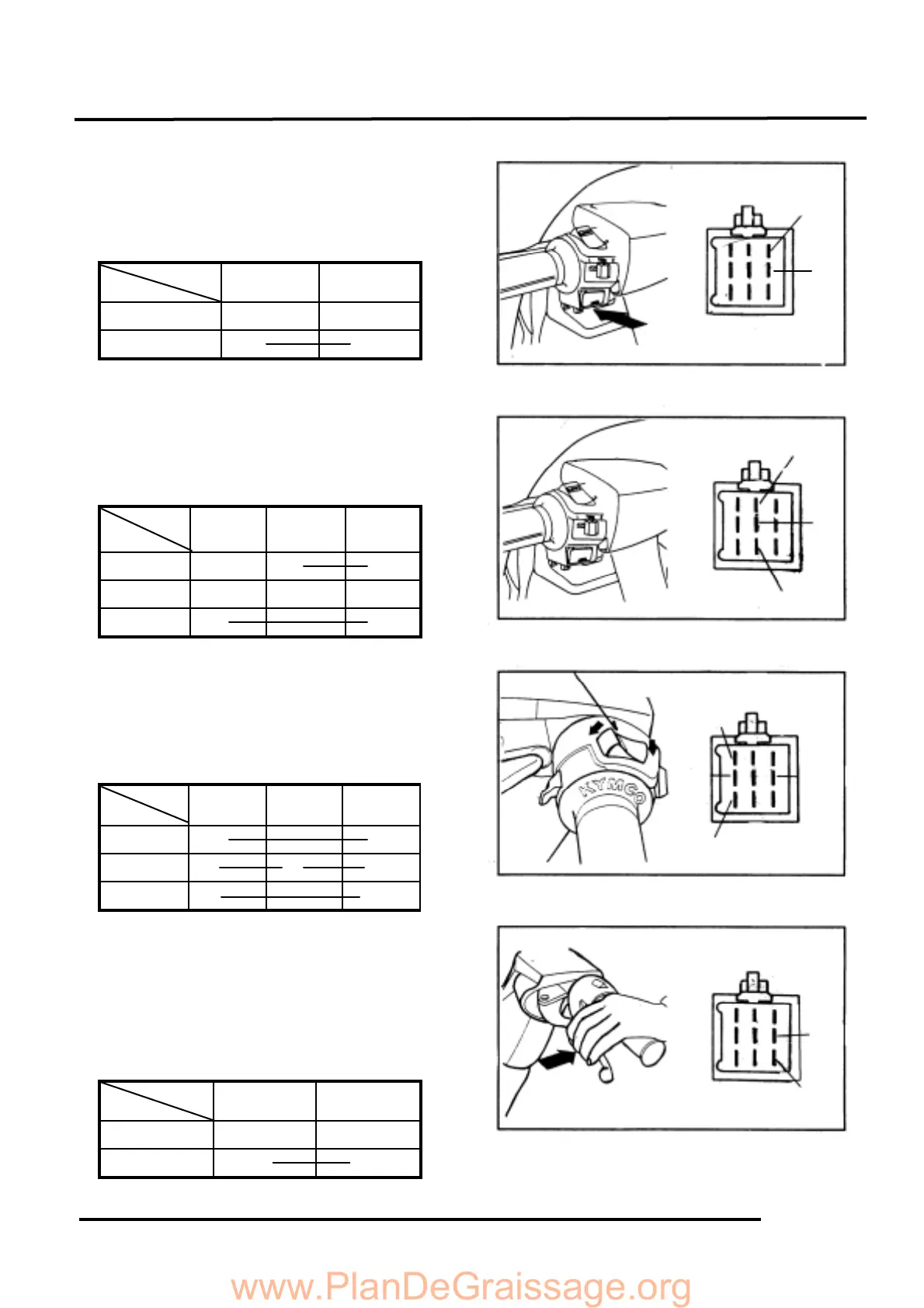

HORN BUTTON INSPECTION
Remove the frame front covers. (

2-5)
Disconnect the horn wire couplers.
Depress the horn button and check for
continuity between the wire terminals.
Color
Position
LG
BR/L
FREE
PUSH
○
○
TURN SIGNAL SWITCH INSPECTION
Remove the frame front covers. (

2-5)
Disconnect the turn signal switch wire
couplers and turn on the turn signal switch.
Check for continuity between the wire
terminals.
Color
Position
SB
O
GR
L
○
○
N
R
○
○
DIMMER SWITCH INSPECTION
Remove the frame front covers. (

2-5)
Disconnect the headlight dimmer switch wire
couplers.
Turn on the dimmer switch and check for
continuity between the wire terminals.
Color
Position
L/W
L
W
LO
○
○
N
○
○
○
HI
○
○
STOP SWITCH INSPECTION
Remove the frame front covers. (

2-5)
Disconnect the front/rear stop switch wire
couplers.
Check for continuity between the wire
terminals when the front brake lever is
applied.
Color
Position
BR/L
G/Y
FREE
APPLY
○
○
Horn Button
Turn Signal Switch
Dimmer Switch
Stop Switch
BR/L
G/Y
W
L/W
L
SB
O
GR
LG
BR/L
