KYMCO DINK50 - Page 181

14. REAR WHEEL/REAR BRAKE/REAR
SHOCK ABSORBER
14-5

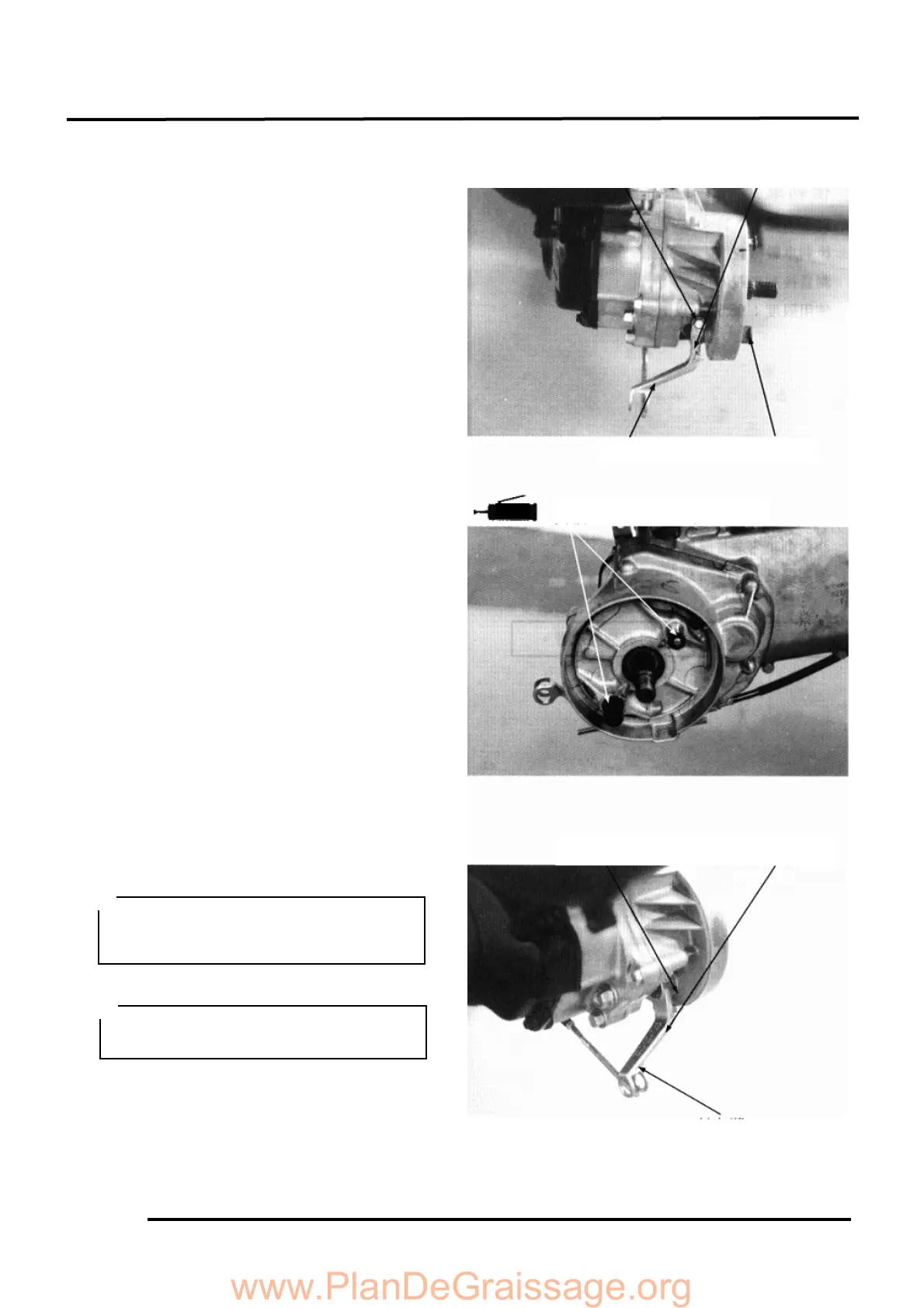

Remove the brake arm bolt to remove the
brake arm, wear indicator plate and felt seal.
Remove the brake cam.
REAR BRAKE ASSEMBLY
Apply grease to the anchor pin and brake
shoe moving parts.
Apply grease to the brake cam and install it.
Apply engine oil to the felt seal and install
it to the brake cam.
Install the wear indicator plate.
Install the brake arm onto the brake cam.
Install and tighten the brake arm bolt.
Install the brake arm return spring.
Install the brake shoes.
Brake Arm Bolt
Wear Indicator Plate
Brake Arm
Brake Cam
Grease
Brake Arm
Punch Mark
Wear Indicator Plate
Align the wide tooth of the wear
indicator plate with the wide groove on
the brake cam.
＊
Align the punch mark on the brake arm
with the scribed line on the brake cam.
＊
