6. CYLINDER HEAD/CYLINDER/PISTON
6-9

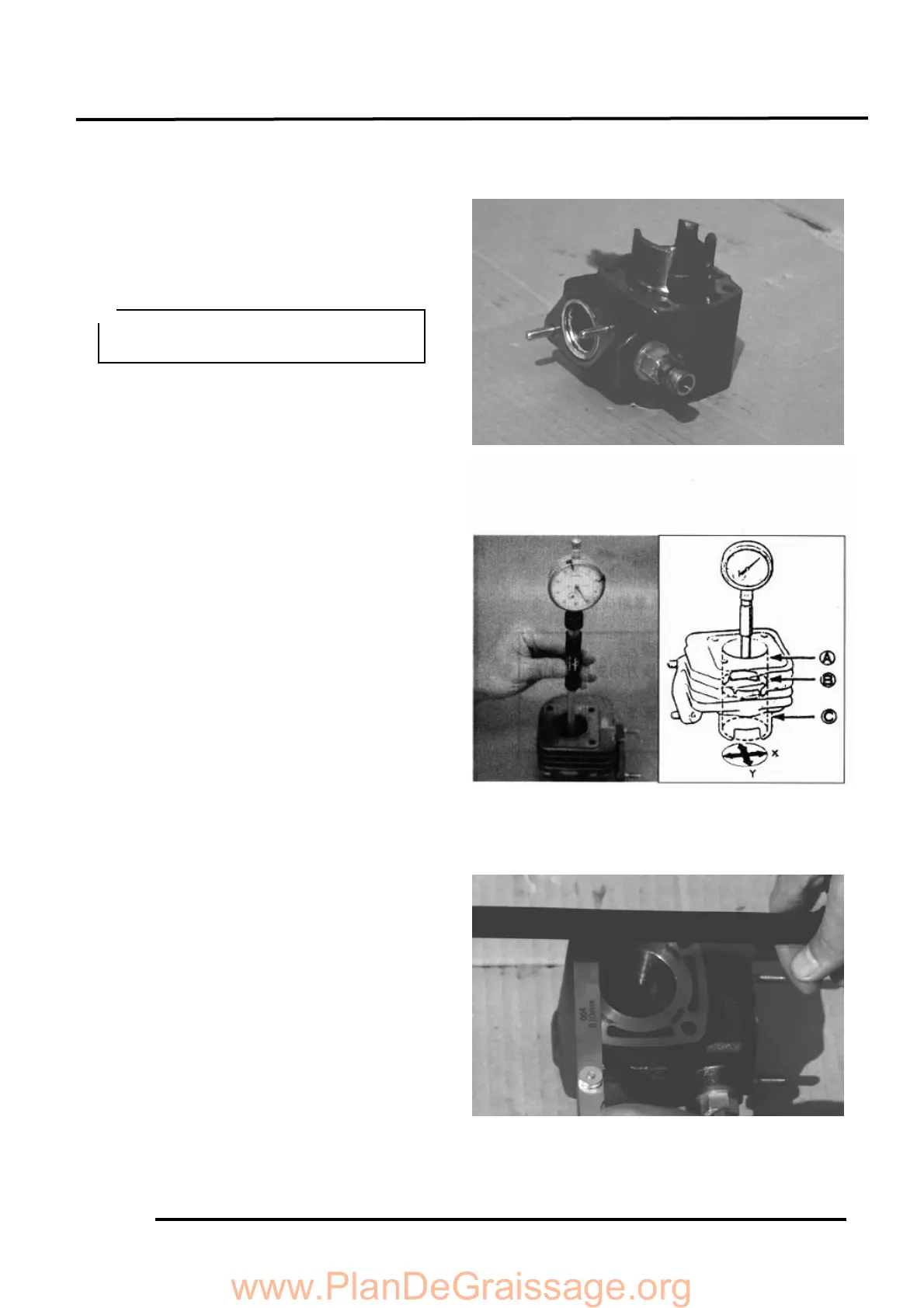

CYLINDER/PISTON INSPECTION
Check the cylinder and piston for wear or
damage.
Clean carbon deposits from the exhaust
port area.
Measure the cylinder bore at three levels of
A, B and C in both X and Y directions.
Avoid the port area. Take the maximum
figure measured to determine the cylinder
bore.
Service Limit:
SH10BA: 51.05mm replace if over
SH10AA: 51.05mm replace if over
Inspect the top of the cylinder for warpage.
Service Limit:
SH10BA: 0.10mm replace if over
SH10AA: 0.10mm replace if over
Be careful not to damage the cylinder
inside wall.
＊
