6. CYLINDER HEAD/CYLINDER/PISTON
6-11

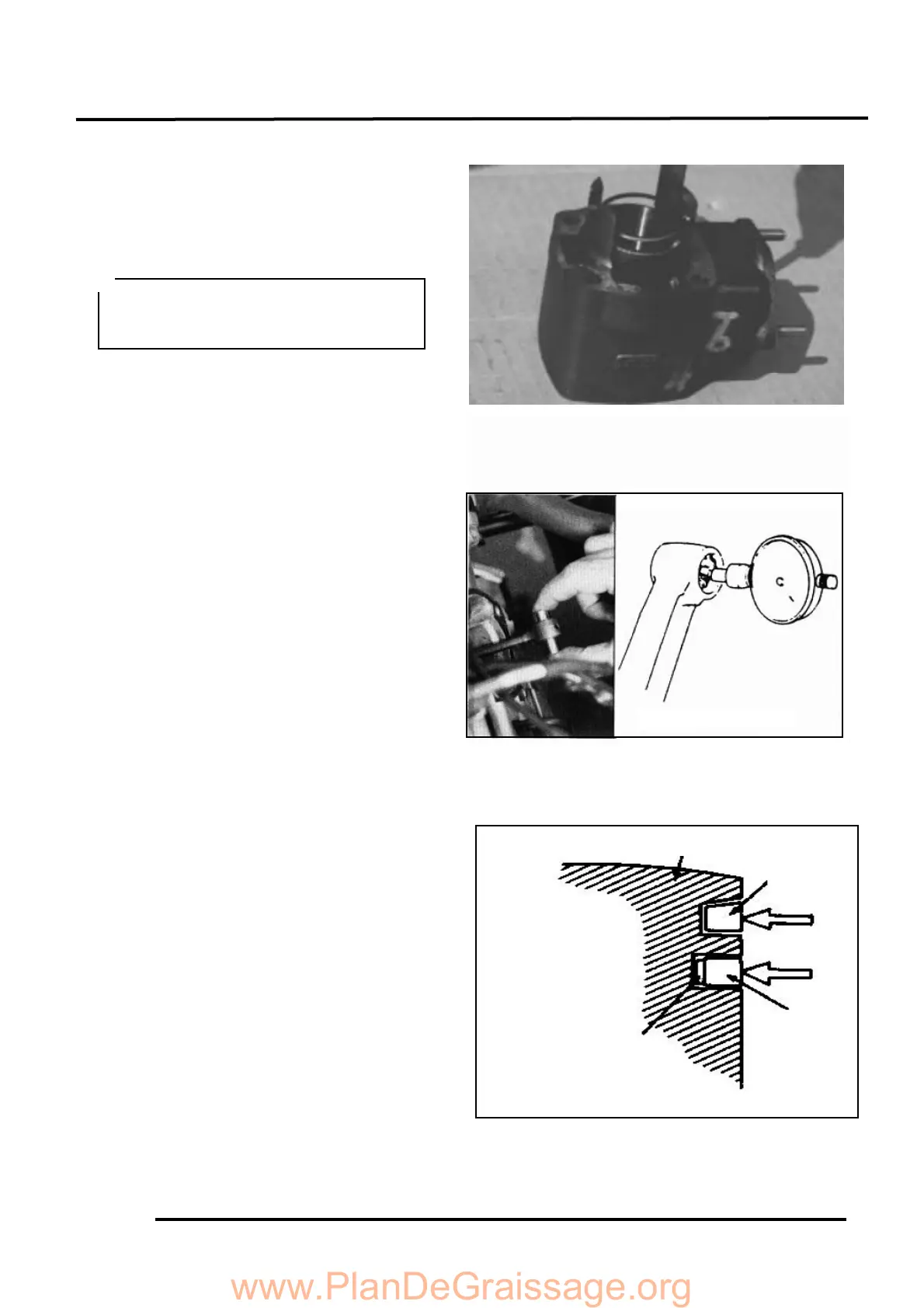

PISTON RING INSPECTION
Measure each piston ring end gap.
Service Limits: Top/Second
SH10BA: 0.40mm replace if over
SH10AA: 0.40mm replace if over
CONNECTING ROD SMALL END
INSPECTION
Install the piston pin and bearing in the
connecting rod small end and check for
excessive play.
Measure the connecting road small end I.D.
Service Limit:
SH10BA: 17.03mm replace if over
SH10AA: 17.03mm replace if over
PISTON/CYLINDER INSTALLATION
First install the expander in the second ring
groove.
Then install the top and second rings in
their respective ring grooves.
The piston rings should be pressed into the
grooves with even force.
After installation, check and make sure that
each ring is flush with the piston at several
points around the ring.
A ring that will not compress means that
the ring groove has carbon deposits in it and
should be cleaned.
Set each piston ring squarely into the
cylinder using the piston and measure
the end gap.
＊
<Small End I.D. Measurement>
Expander
Top Ring (1st Ring)
Piston
Second Ring
