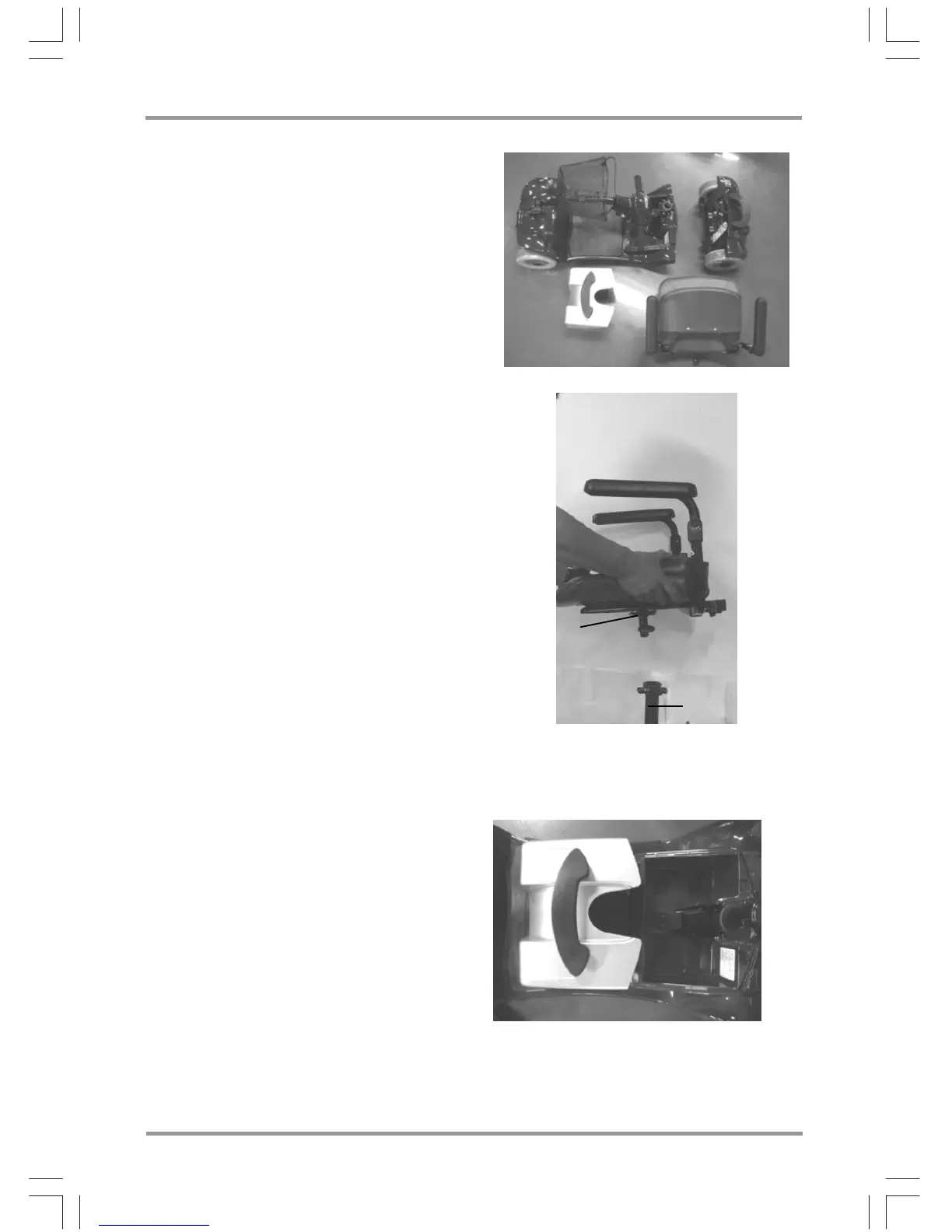

Transporting the scooter
45
In just a few steps you can
dismantle the scooter down to the
following components to make it
ready for transport:
1. Chassis
2. Drive unit
3. Battery case
4. Seat unit
13.3.1 Working step summary
1. Remove the seat unit.
2. Remove the battery case.
3. Fold the tiller down.
4. Disengage the drive unit from
the chassis.
13.3.2 Removing the seat and rear
panelling
Tilt the seat backrest forwards.
Lift the seat while pulling the
seat lock(a) out of the seat
support (1).
13.3.3 Removing the batteries
Remove the battery case upwards
out of the s scooter.
Removing the seat
Removing the battery case
a
