KYMCO Mini LS - Folding the Tiller down; Disengaging the Drive Unit from the Chassis; Installing Step in the Reverse Order of Removal

Transporting the scooter
46

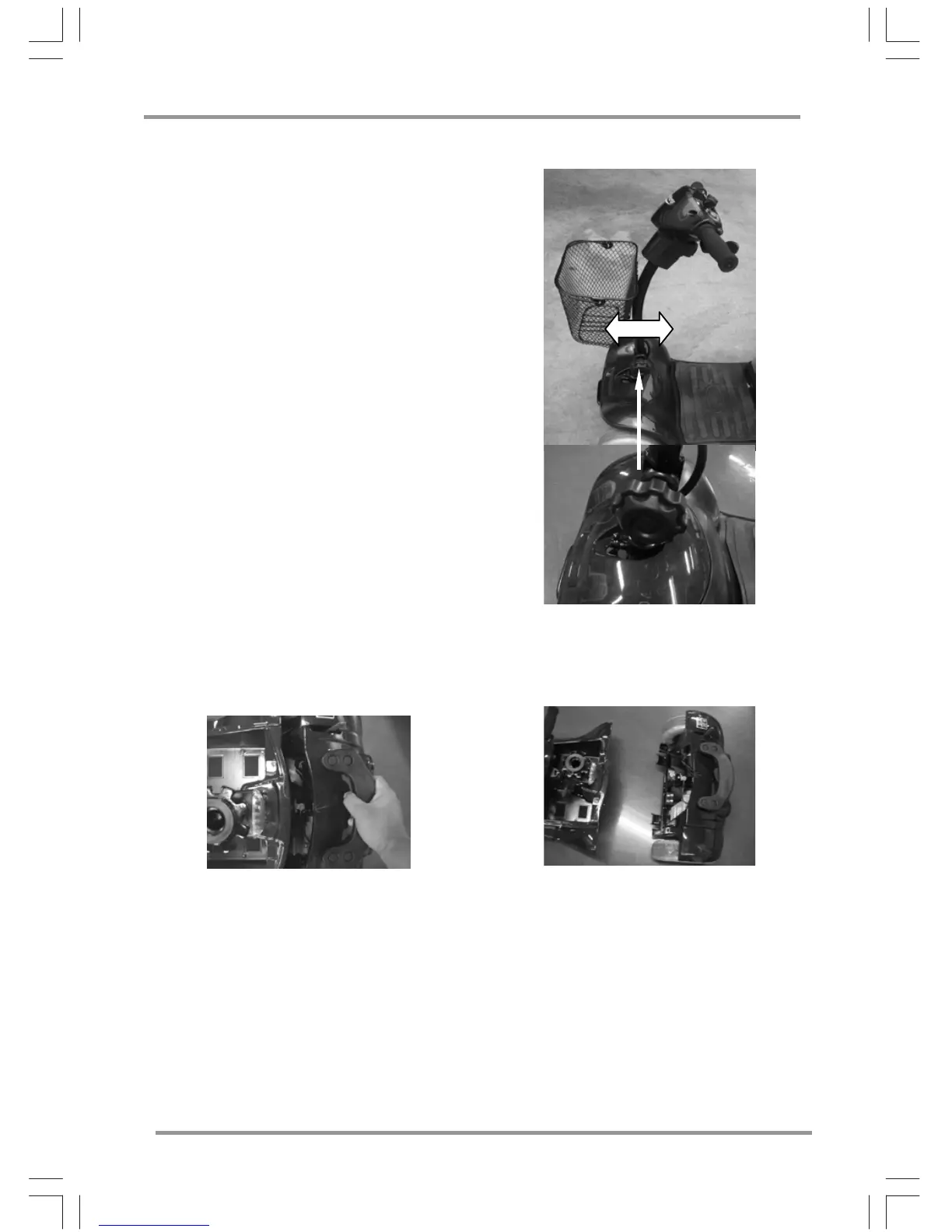

13.3.4 Folding the tiller down
Turn and loose the locking
knob(1)
Push the tiller forwards or
backwards into the required
position (2).
Tighten the locking knob .
Ensure that the tiller is engaged
properly by moving slightly
forwards and backwards
13.3.5 Disengaging the drive unit
from the chassis
Push the locking device (3)
and tilt drive unit to the rear
onto the anti tip wheels (4).
13.3.6 Installing step in the reverse
order of removal.

Folding the tiller down

(2)
(1)
