6. ENGINE REMOVAL/INSTALLATION
6-13
MXU 300/250

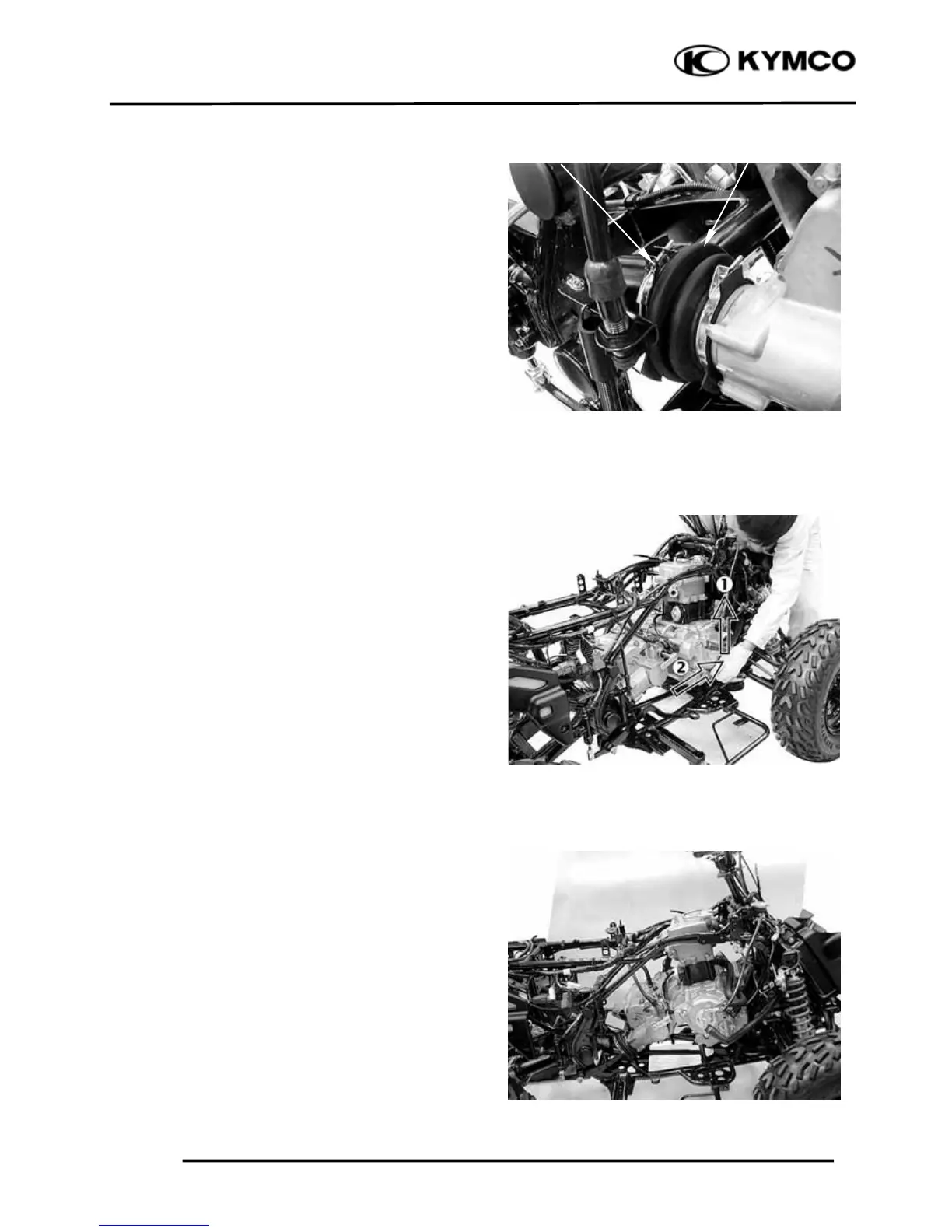

Loosen the joint boot band screw on the
swingarm side. Remove the joint boot from
the swingarm.
Rise the engine front side and move the
engine forward, then remove the engine
from the frame by disengaging the
countershaft from the universal joint in the
swing arm.
Screw (Only swingarm side) Joint Boo
