9.DRIVE AND DRIVEN PULLEYS
9-8
MXU 300/250

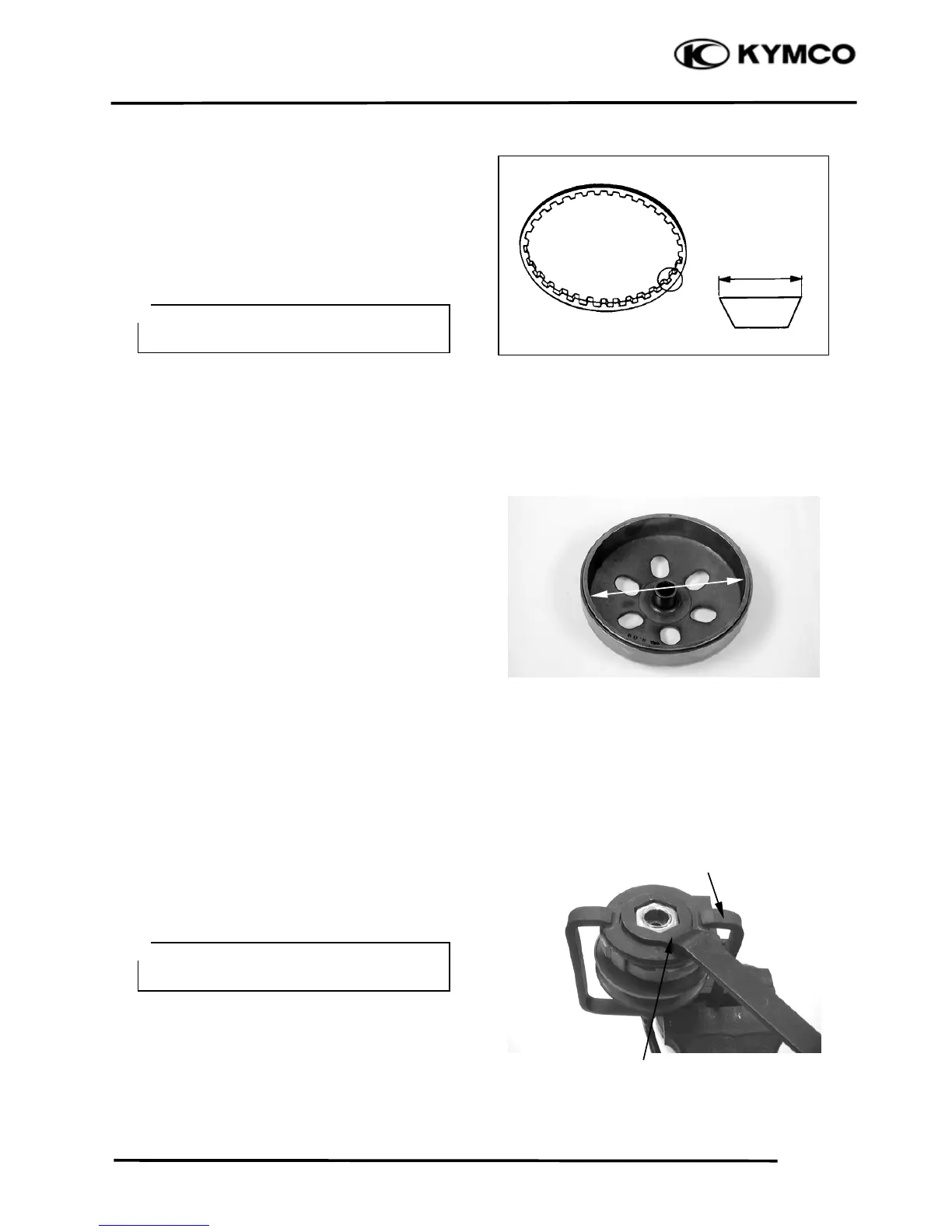

DRIVE BELT INSPECTION
Check the drive belt for cracks, separation or
abnormal or excessive wear.
Measure the drive belt width.
Service Limit (replace if below):
22 mm (0.88 in)
CLUTCH OUTER INSPECTION
Inspect the clutch outer for wear or damage.
Measure the clutch outer I.D.
Service Limit (replace if over):
153.5 mm (6.14 in)
CLUTCH/DRIVEN PULLEY
DISASSEMBLY
Hold the clutch/driven pulley assembly with
the clutch spring compressor.
Special tool:
Clutch Spring Compressor E027
Set the clutch spring compressor in a vise and
remove the clutch drive plate nut.
Clutch Spring Compressor
Lock Nut Wrench
Be sure to use a clutch spring
compressor to avoid spring damage.
＊
Use specified genuine parts fo
