9.DRIVE AND DRIVEN PULLEYS
9-11
MXU 300/250

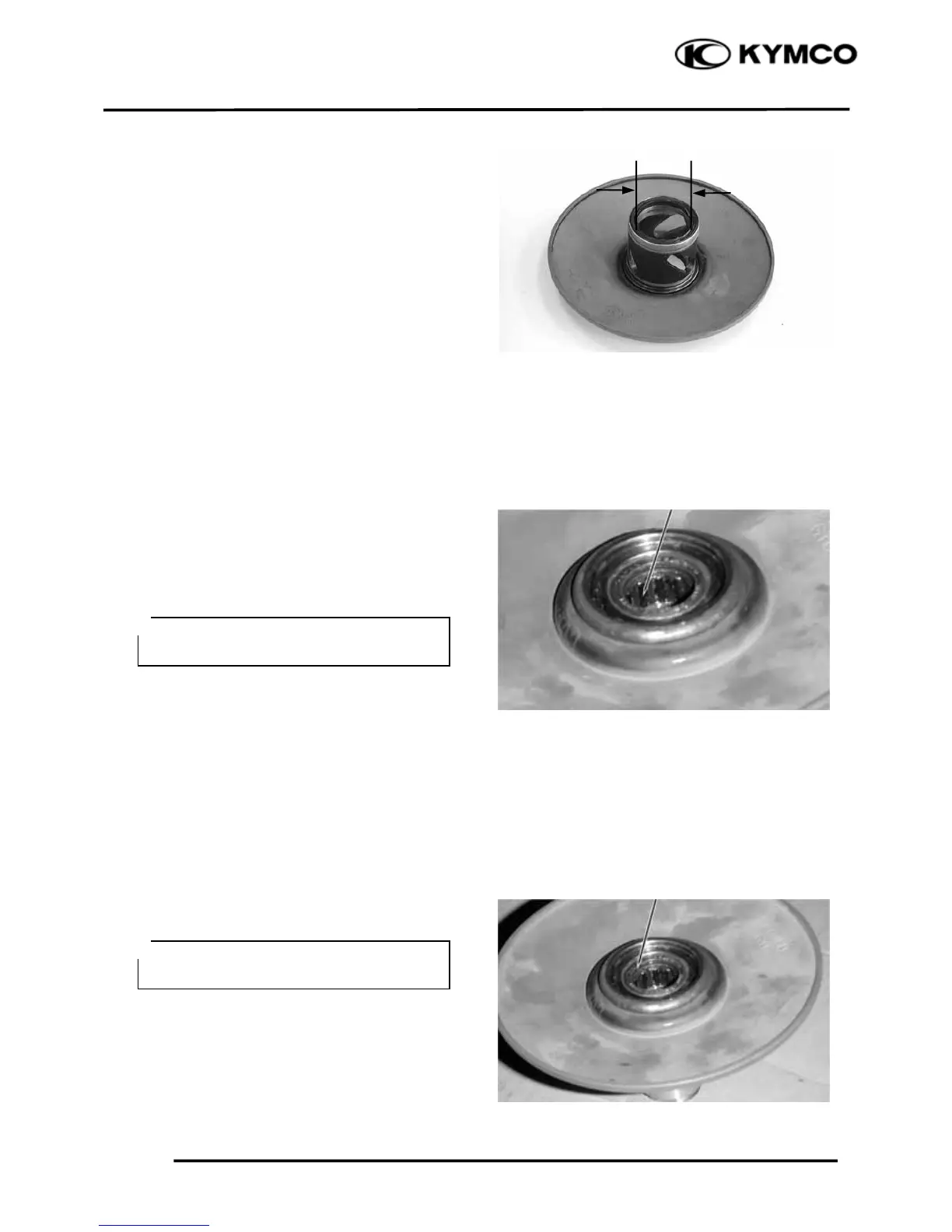

Check the movable driven face for wear or
damage.
Measure the movable driven face I.D.
Service Limit (replace if over):
40.06 mm (1.6024 in)
DRIVEN PULLEY FACE BEARING
REPLACEMENT
Drive the inner needle bearing out of the
driven pulley face.
Remove the snap ring and drive the outer
bearing out of the driven face.
Apply grease to the outer bearing.
Drive a new outer bearing into the driven face
with the sealed end facing up.
Special tool: Bearing Puller E008
Inner Bearing
Outer Bearing
Discard the removed bearing and replace
with a new one.
＊
Discard the removed bearing and replace
with a new one.
＊
