9.DRIVE AND DRIVEN PULLEYS
9-10
MXU 300/250

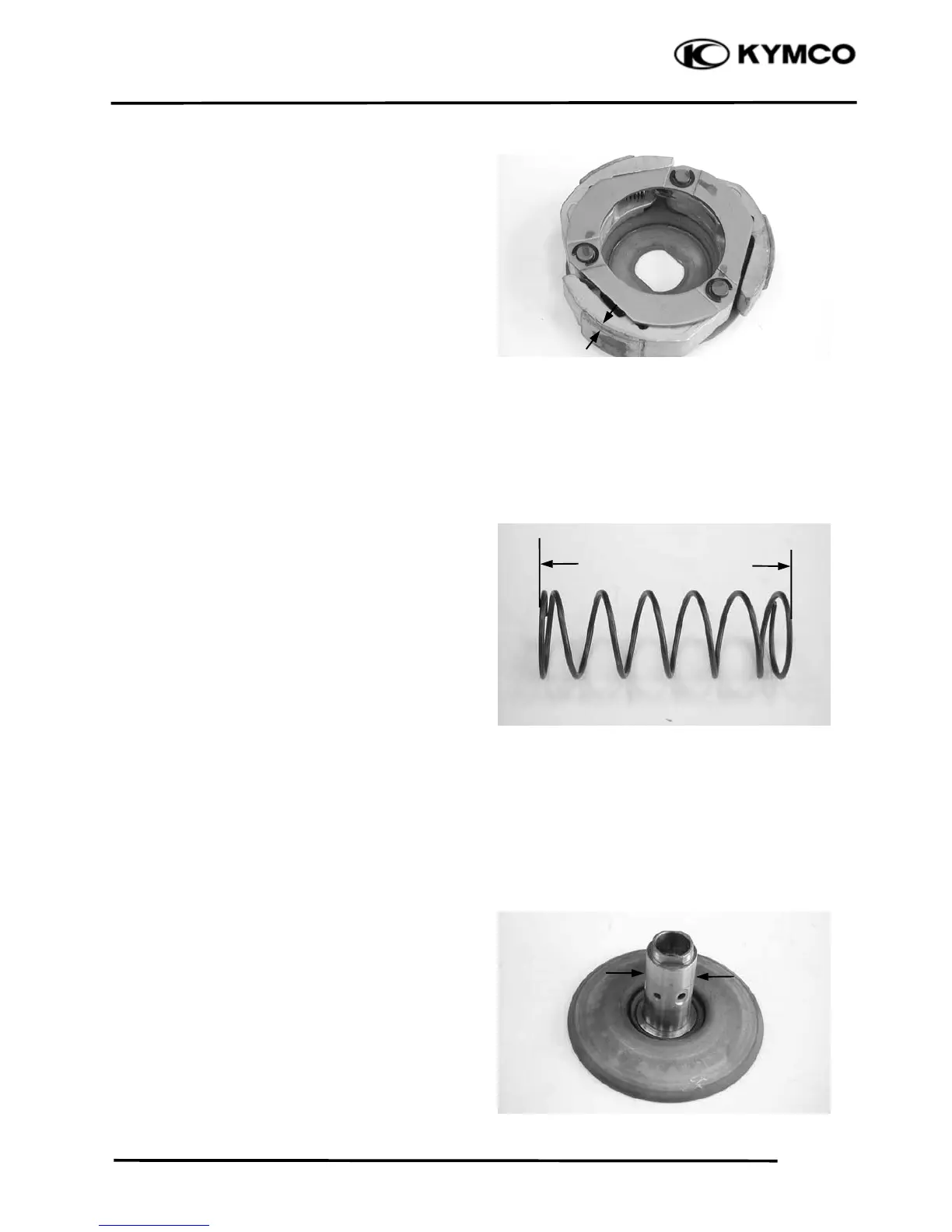

Measure the clutch lining thickness.
Service Limit (replace if below):
0.5 mm (0.02 in)
INSPECTION
Measure the driven face spring free length.
Service Limit (replace if below):
131 mm (5.24 in)
Check the driven face for wear or damage.
Measure the driven face O.D.
Service Limit (replace if below):
39.94 mm (1.5976 in)
