10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-12
MXU 300/250
Inspect the gear teeth.
Blue discoloration/pitting/wear → Replace.
Inspect the mated dogs.
Rounded edges/cracks/missing portions
→ Replace.

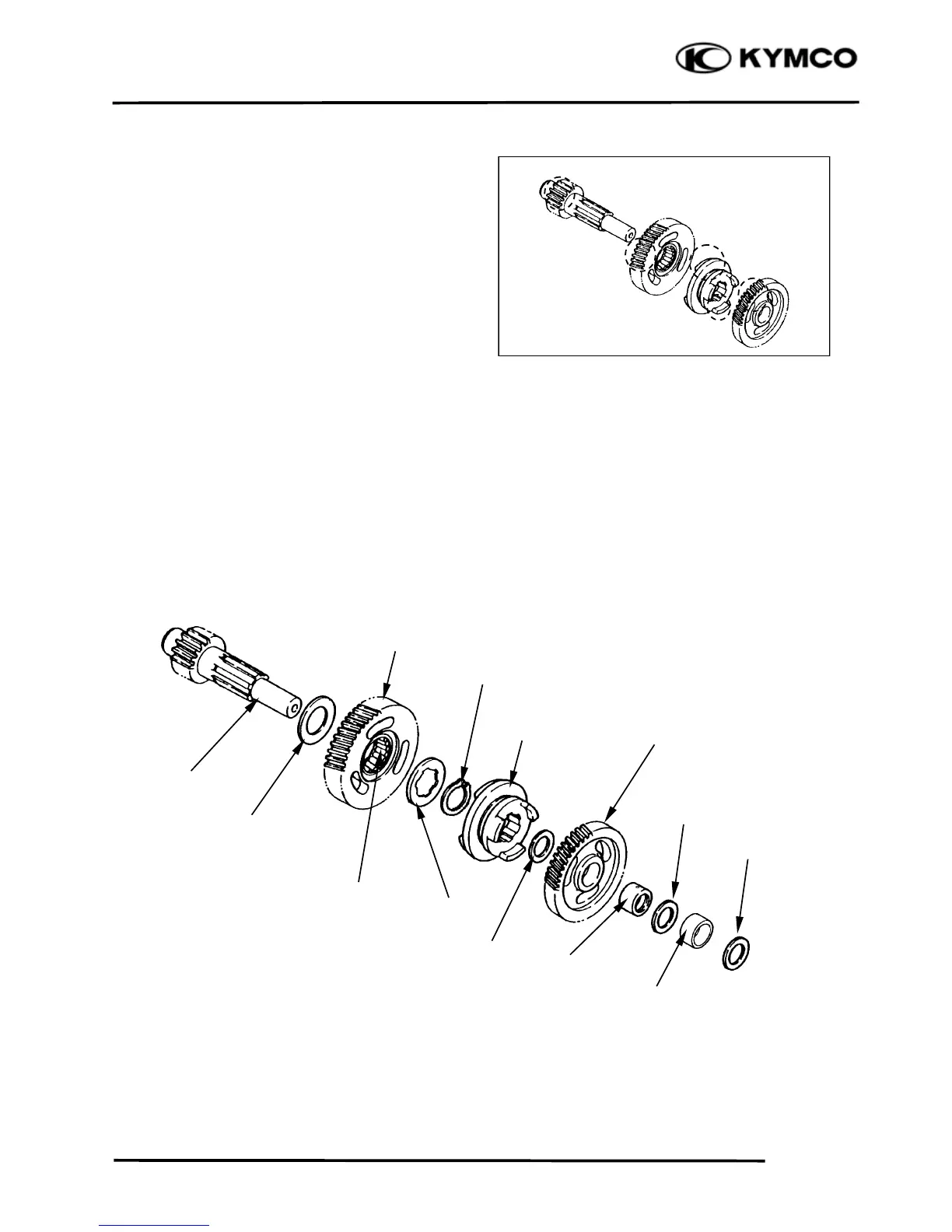

MAIN AXLE ASSEMBLY
Reverse the “MAIN AXLE
DISASSEMBLY” procedures.
Washer
Circlip
N
eedle Bearing
Reverse Wheel Gear
Main Axle
Washe
r
Primary Driven Gear
Clutch Dog
Collar
Bush
Washer
Washer
Washer
