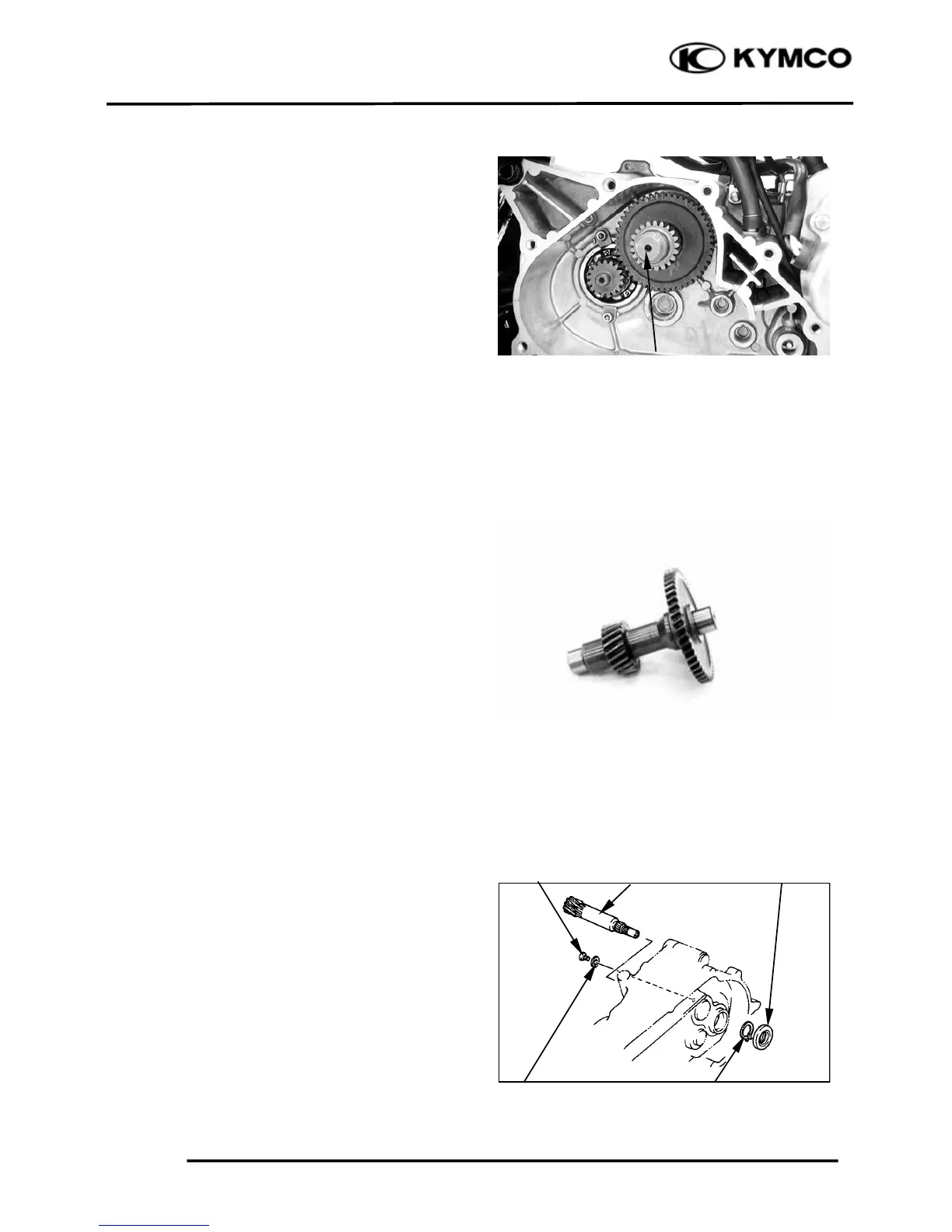

Remove the counter axle.
Inspect the gear teeth.
Blue discoloration/pitting/wear → Replace.
PRIMARY DRIVE AXLE REMOVAL
Remove the clutch/driven pulley. (Refer to
the chapter 9)
Remove the oil seal, circlip, bolts and plates.
Remove the primary drive axle.
Bolts
Primary Drive Axle
Plates Circli
p
Oil Seal
Counter Axle
