10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-28
MXU 300/250

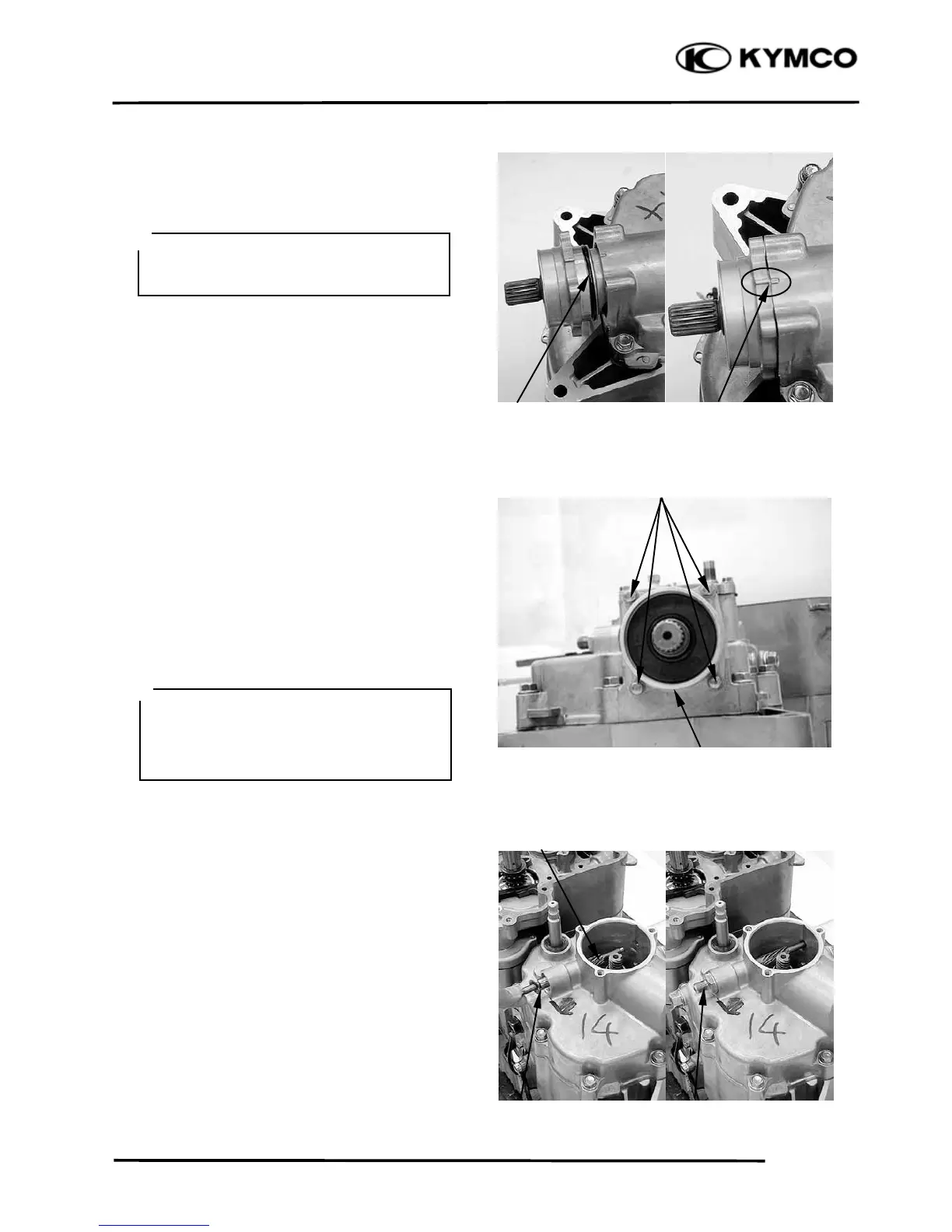

Replace a new O-ring and apply engine oil to
the O-ring.
Install the secondary driven bevel gear into
the transmission case cover.
Shift the shift shaft to neutral.
Install and tighten the four bolts in several
steps until the driven bevel gear shaft case
evenly touches the transmission case cover.
Then, while rotating the driven bevel gear
shaft, tighten the bolts in a crisscross pattern
in several steps.
Install the speedometer gear and washer.
Install the plug and tighten it.
O-ring Marks
Driven Bevel Gear Shaft Case
Bolts
Washer Plug
Speedometer Gea
Align the mark on the secondary bevel
driven gear shaft case with the index
mark on the transmission case cover.
＊
It is important to turn the driven bevel
gear shaft while tightening the bolts. If
the bevel gear shim is too thick, the gears
will lock after only light tightening.
＊
