10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-34
MXU 300/250

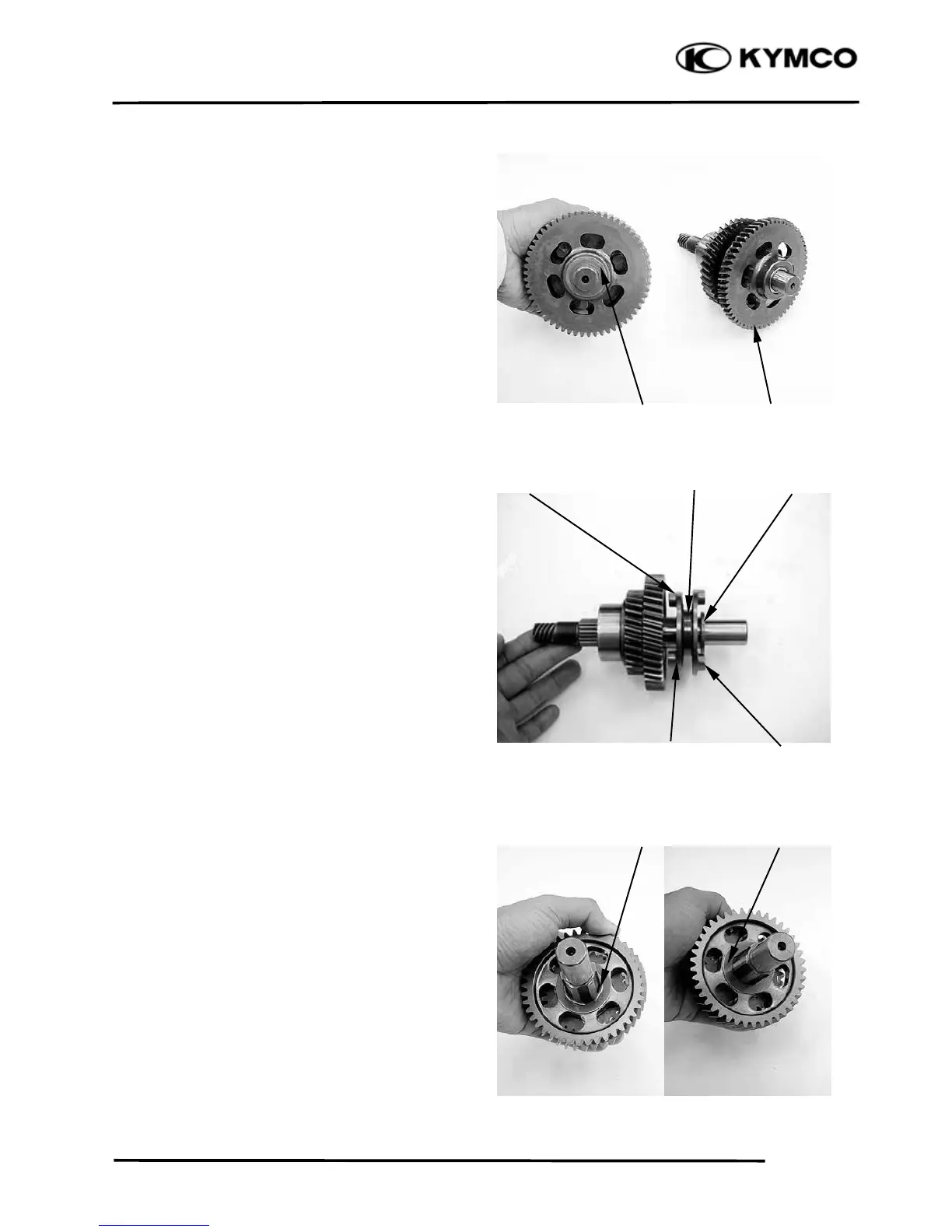

DRIVESHAFT
DISASSEMBLY/INSPECTION
Remove the washer.
Remove the reverse gear.
Reverse gear
Inspect the dog holes and teeth for damage or
wear.
Remove the washer.
Remove the reverse/low gear clutch dog.
Clutch dog
Check the gear dogs, gearshifter groove for
wear or damage.
Remove the snap ring, then remove the
washer.
Washer Reverse Gea
r
Snap Ring Washe
r
Clutch Dog Gear Dogs
Gear Dogs Gearshifter Groove Washe
r
