10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-35
MXU 300/250

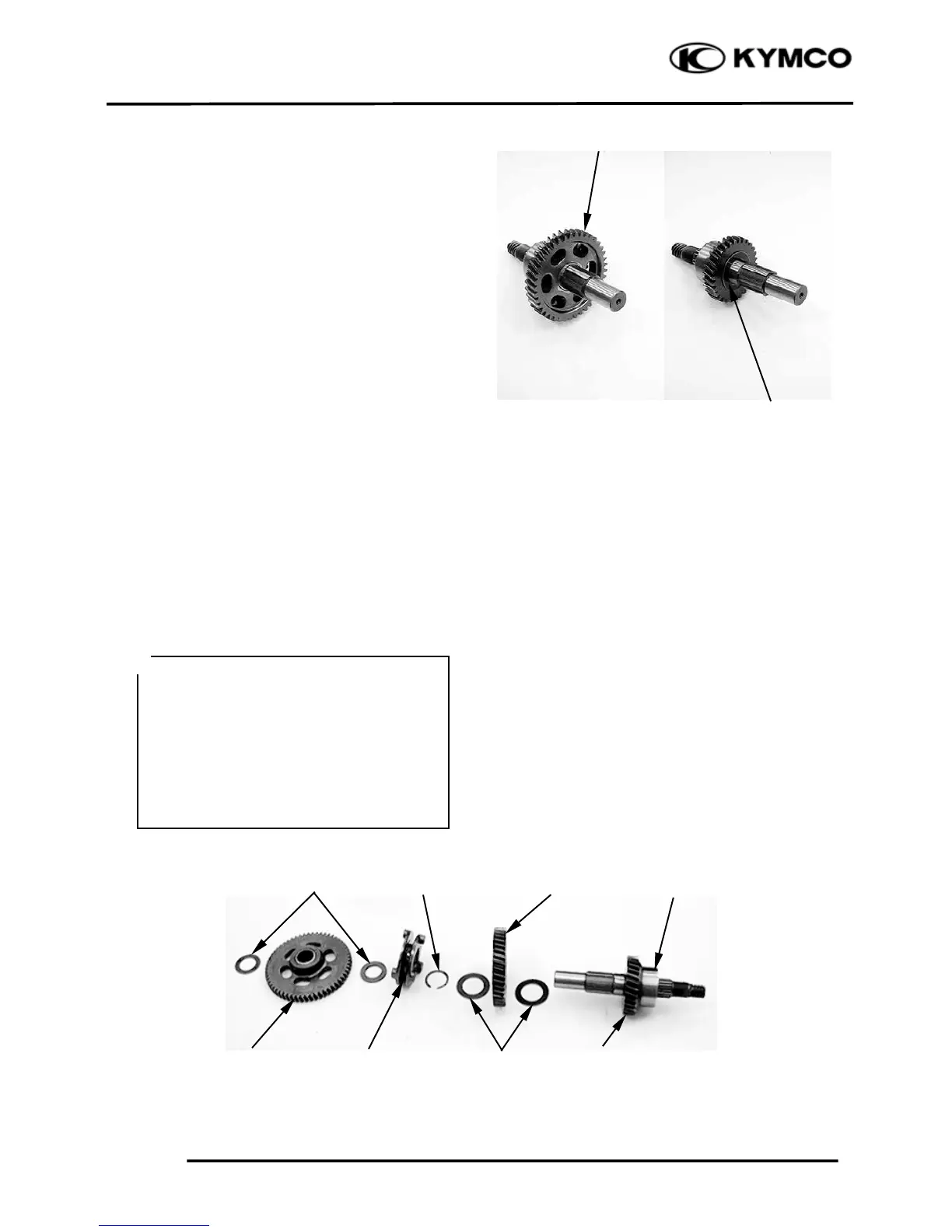

Remove the low driven gear, then remove the
washer.
Low driven gear
Inspect the dog holes and teeth for damage or
wear.
ASSEMBLY
Clean all parts in solvent.
Apply molybdenum oil solution to the gear
and sliding surface and shift fork grooves to
ensure initial lubrication.
Reverse the “DRIVESHAFT
DISASSEMBLYN” procedures to assemble
all parts into their original positions.
Washe
r
Low Driven Gea
r
Reverse Gear Clutch Dog Washers High Driven Gea
r
Washer Snap Ring Low Driven Gear Countershaf
t
● Check the gears for freedom of
movement or rotation of the driveshaft.
● Install the snap rings with the
chamfered edges facing the thrust load
side. Do not reuse a worn snap ring
which could easily spin in the groove.
● Check that the snap ring are seated in
the grooves and align their end gaps
with the grooves of the spline.
＊
