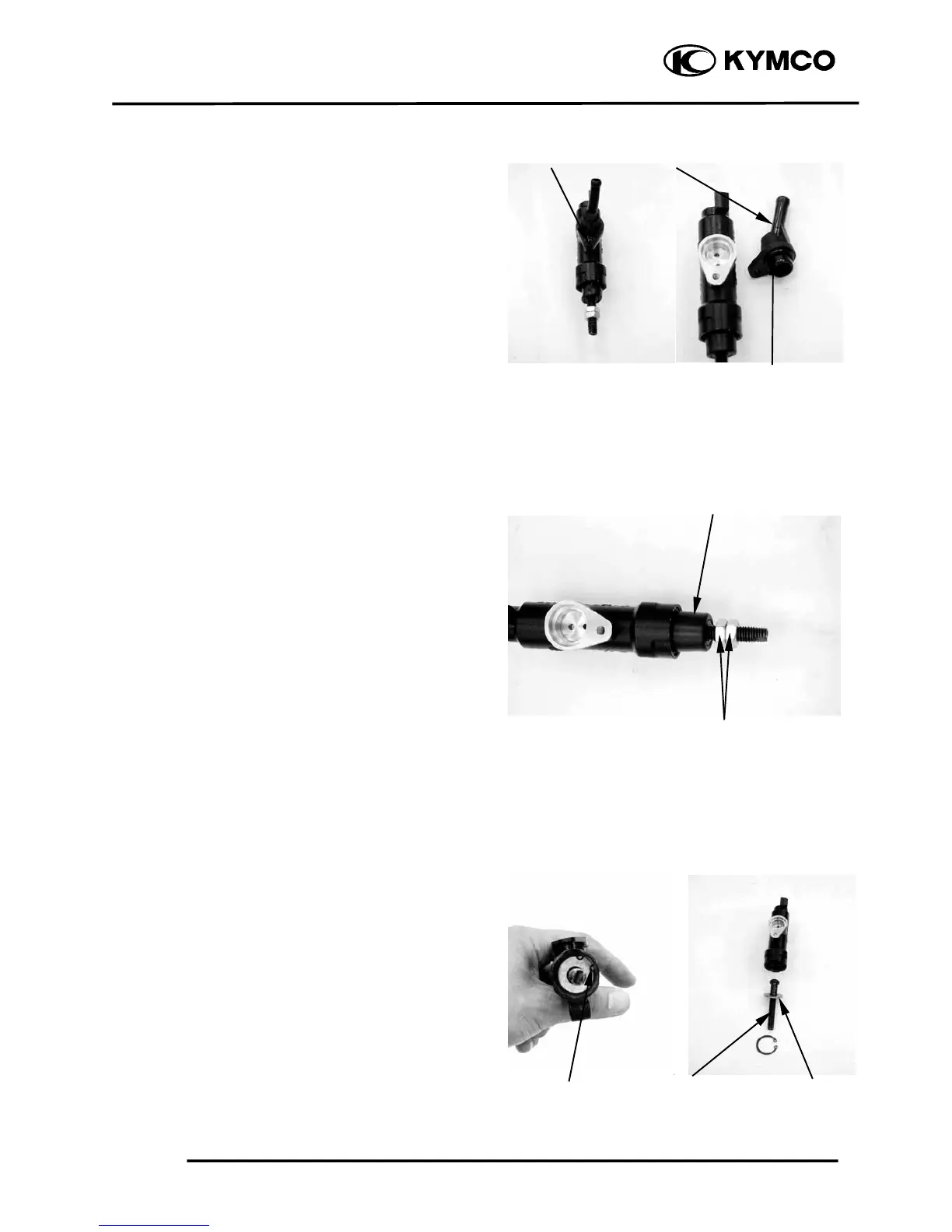

Remove the screw and remove the fluid
inlet duct.
Check the O-ring for wear or damage and
replace if necessary.
Remove the two nuts and remove the seal
boot.
Remove the circlip and then pull out the
push rod, washer, piston and spring.
Fluid Inlet Duc
t
Screw
O-ring
N
uts
Seal Boo
t
Circlip
Push Rod
Washe
r
