13. BRAKE SYSTEM
13-18
MXU 300/250

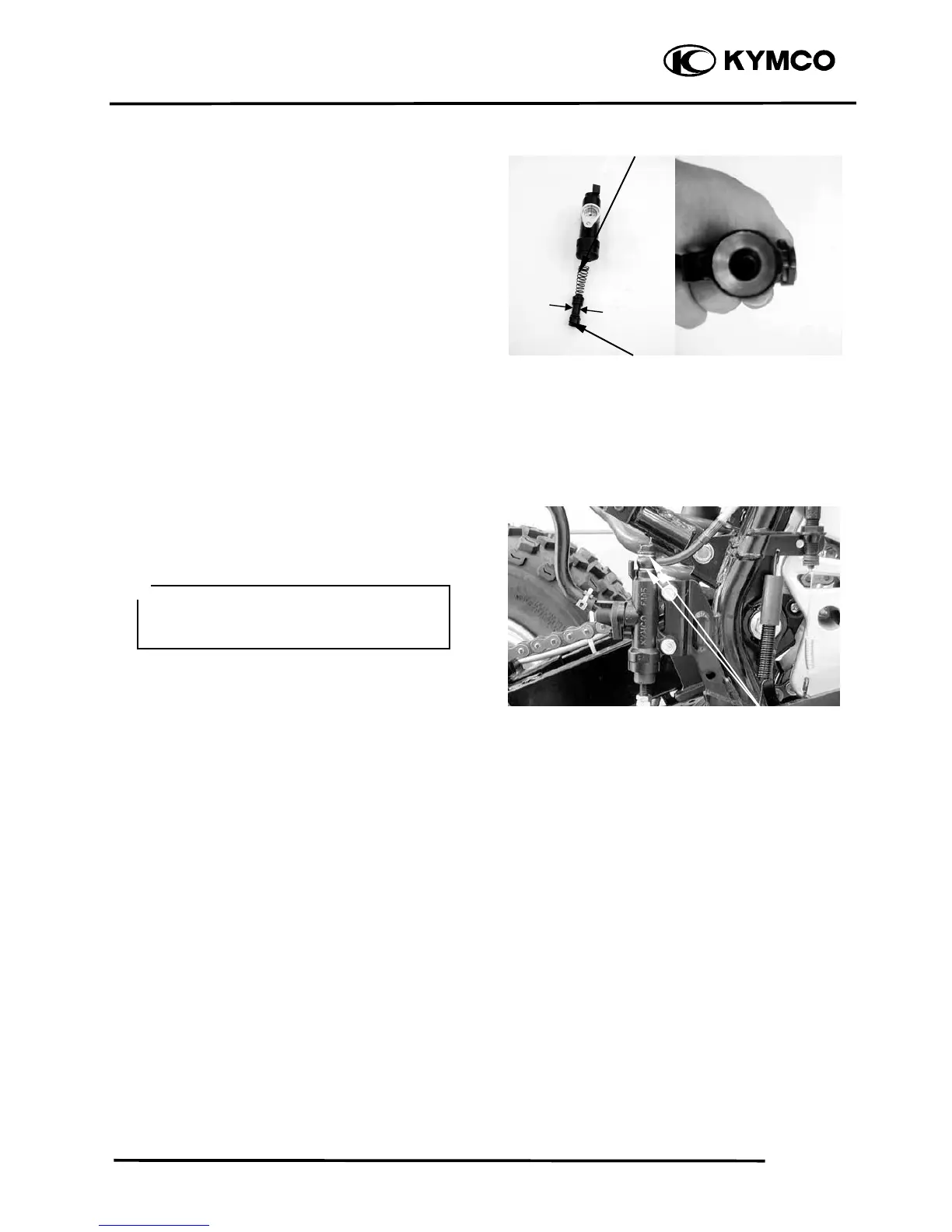

INSPECTION
Check the cylinder inside wall, and spring
for scratch, corrosion or other abnormal
condition.
If any abnormal condition is found, replace
the inner parts or master cylinder.
Before assembly, inspect the lst and 2nd
rubber cups for wear.
ASSEMBLY
Before assembly, apply brake fluid to all
removed parts.
Reverse the “MASTER CYLINDER ON
THE REAR BRAKE PEDAL
DISASSEMBLY” procedures.
Connect the brake fluid tube to the master
cylinder with the fluid bolt and new sealing
washers.
Tighten the fluid tube bolt.
Torque: 3.5 kgf-m (35 Nm, 25 lbf-ft)
Fill the brake reservoir with recommended
brake fluid to the upper level.
Bleed air from the hydraulic brake system.
(
page
13-13)
Washers
During assembly, the master cylinder,
piston and spring must be installed as a
unit without exchange.
＊
Spring
Piston
