13. BRAKE SYSTEM
13-20
MXU 300/250

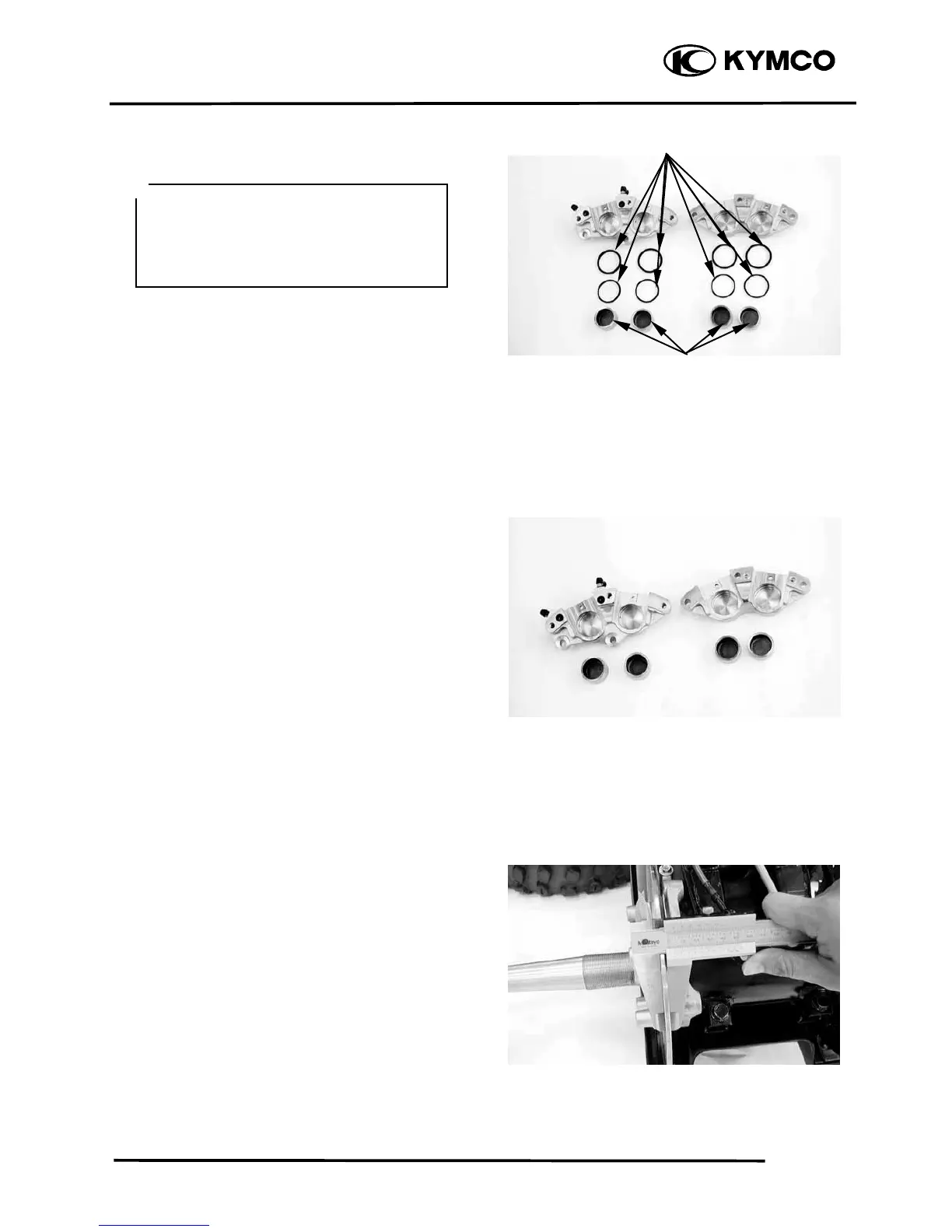

Remove the dust seals and piston seals.
INSPECTION (MXU 250)
Inspect the caliper cylinder wall and piston
surface for scratch, corrosion or other
damages.
If any abnormal condition is noted, replace
the caliper.
BRAKE DISK
Measure the brake disk thickness.
Service Limit: 3.0 mm (0.12 in)
Measure the brake disk run out.
Service Limit: 0.3 mm (0.012in)
Use care not to cause scratch on the
cylinder bore.
Do not reuse the piston seal and dust
seal that have been removed.
＊
Seals
Piston
To Next Page
