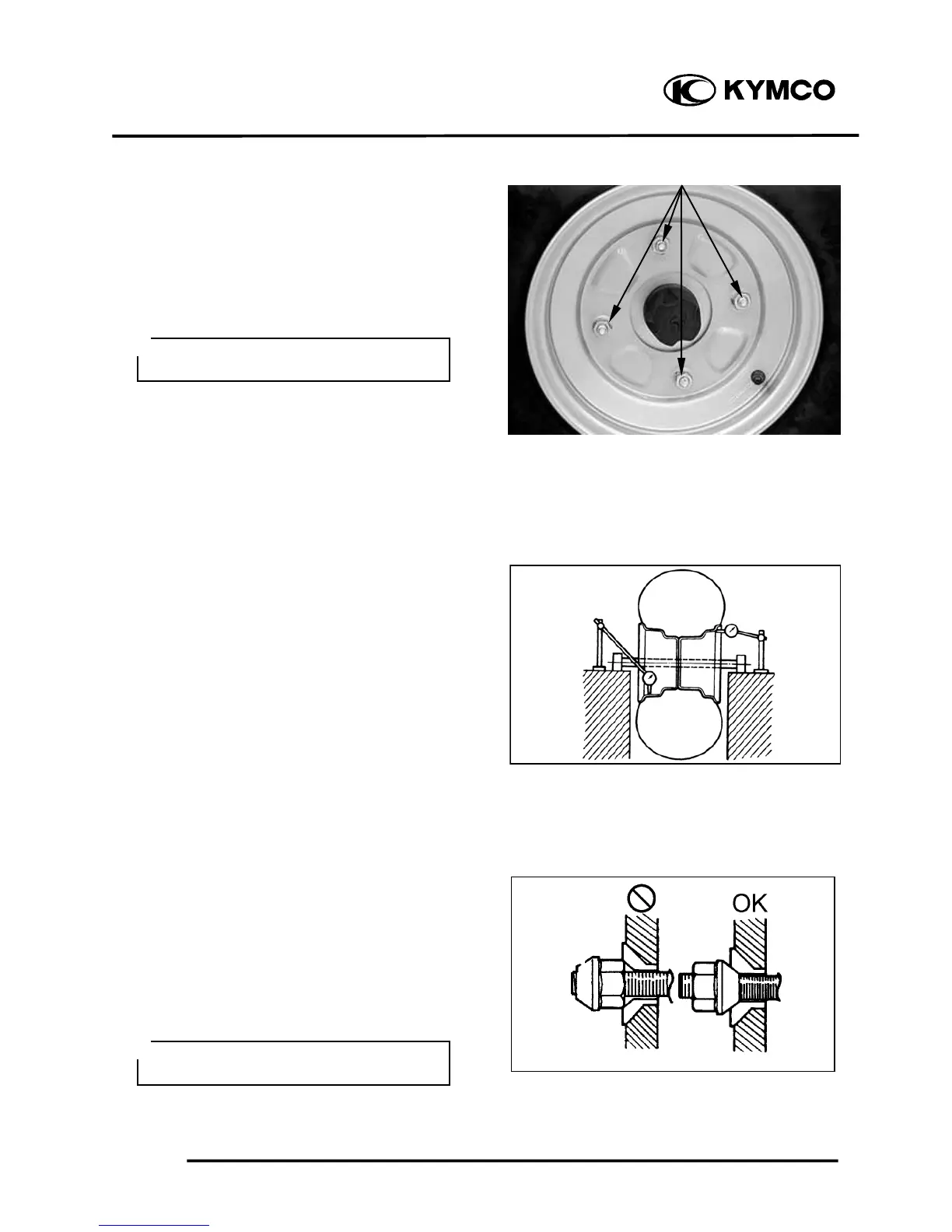

FRONT WHEEL
REMOVAL AND INSPECTION
Place the machine on a level place.
Remove four nuts attaching the front wheel
hub and front wheel.
Elevate the front wheels by placing a
suitable stand under the frame.
Measure the wheel run out.
Replace wheel or check bearing play if out
of specification
Rim run out limits:
Vertical: 2 mm (0.08 in)
Lateral: 2 mm (0.08 in)
INSTALLATION
When reinstalling a wheel, tighten the
wheel nuts in a crisscross (rather than a
circular) pattern.
Torque: 4.5 kgf-m (45 Nm, 32 lbf-ft)
Support the machine securely so there
is no danger of it falling over.
＊
N
uts
Be sure the tapered side of the wheel
nuts face the wheel rim.
＊
