KYMCO MXU 300 - FRONT WHEEL HUB

14. FRONT WHEEL/FRONT SUSPENSION/
STEERING SYSTEM
14-4
MXU 300/250
FRONT WHEEL HUB

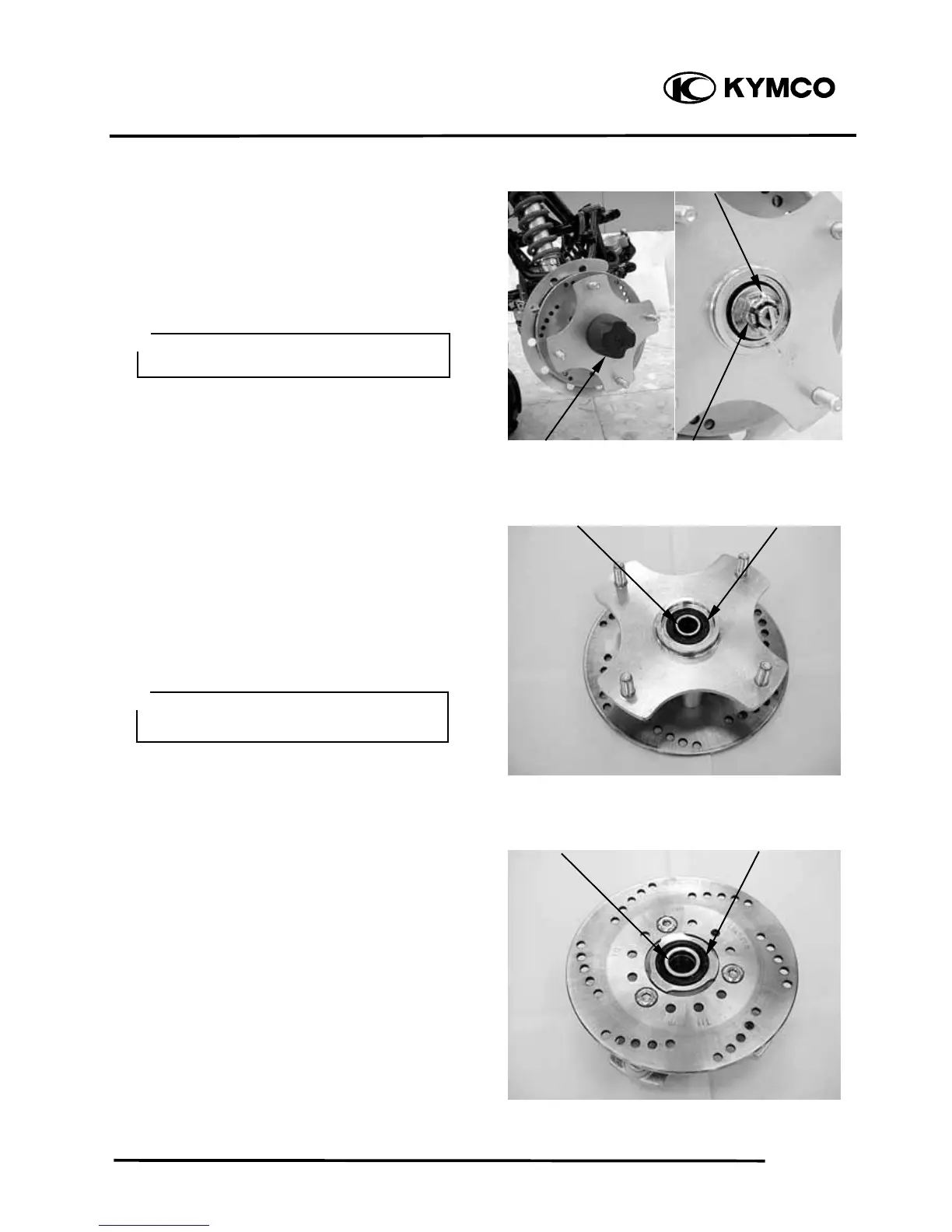

REMOVAL AND INSPECTION
Place the machine on a level place.
Remove the front wheel (
page
14-3) and
caliper. (
page
13-9)
Elevate the front wheels by placing a
suitable stand under the frame.
Remove the nut cap.
Remove the cotter pin.
Remove nut from the front wheel hub and
then remove front wheel hub.
DISASSEMBLY
Remove the outside collars.
Inspect the dust seals for wear or damage.
If any defects are found, replace the dust
seal with a new one.
Remove the dust seals by a flat-head screw
driver.
Support the machine securely so there
is no danger of it falling over.
＊
N
u
t
Cotter Pin
Outside Colla
r
Dust Seal
Outside Colla
r
Dust Seal
N
ut Cap
Place a wood block against the oute
r
edge to protect this edge.
＊
