14. FRONT WHEEL/FRONT SUSPENSION/
STEERING SYSTEM
14-12
MXU 300/250

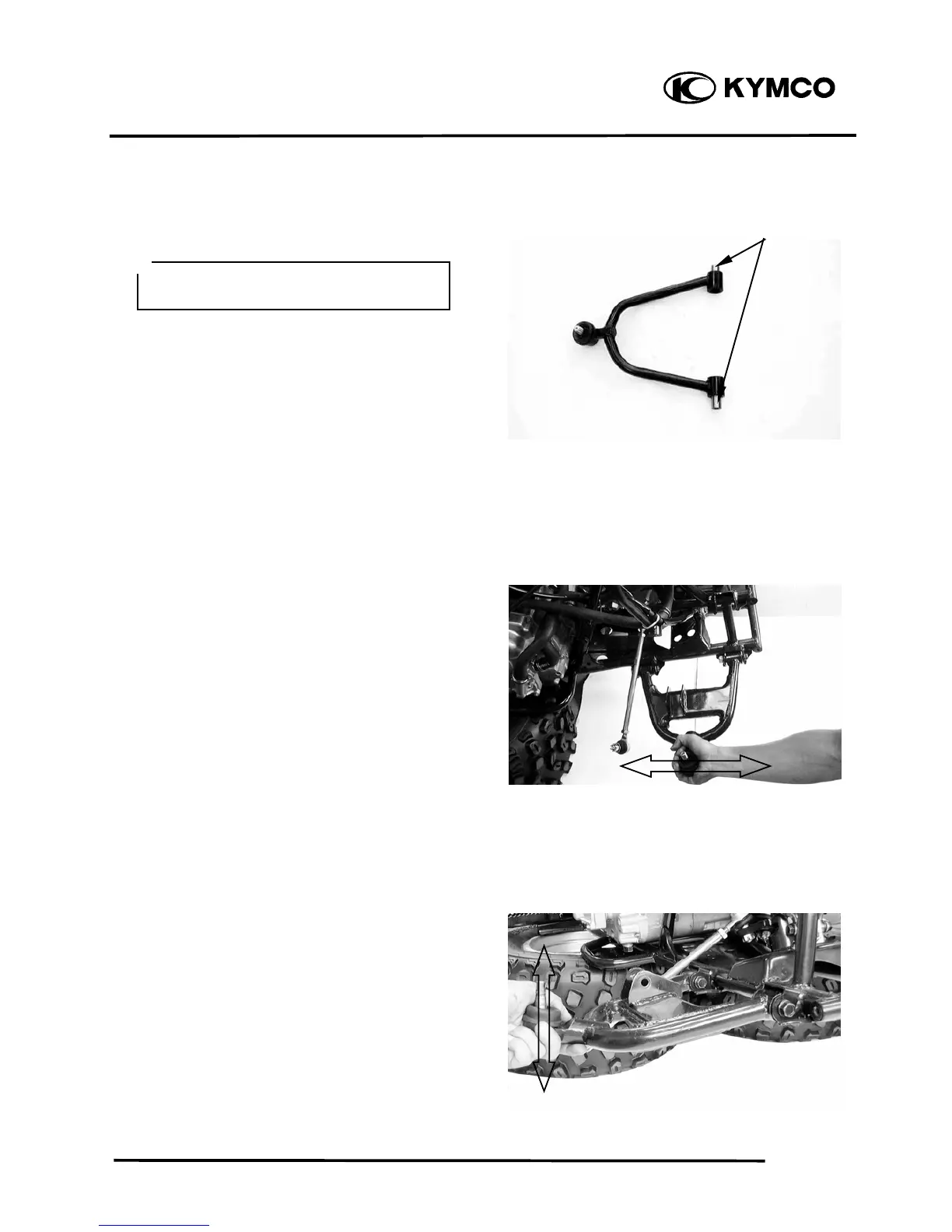

Inspect the front arm.
Cracks/bends/damage →Replace.
Inspect bushes.
Wear/damage →Replace.
Check the lower front arm brackets of the
frame.
If bent, cracked or damaged, repair or
replace the frame.
Check the tightening torque of the front
arms securing nuts.
Torque: 4.5 kgf-m (45 Nm, 32 lbf-ft)
Check the lower front arm side play by
moving it from side to side.
If side play noticeable, replace the inner
collar and bushes as a set.
Check the lower front arm vertical
movement by moving it up and down.
If vertical movement is tight, binding or
roughs, replace the inner collar and bushes
as a set.
Do not attempt to straighten a bent arm,
this may dangerously weaken the arm.
＊
Bushes
