14. FRONT WHEEL/FRONT SUSPENSION/
STEERING SYSTEM
14-18
MXU 300/250
HANDLEBAR
REMOVAL/INSPECTION

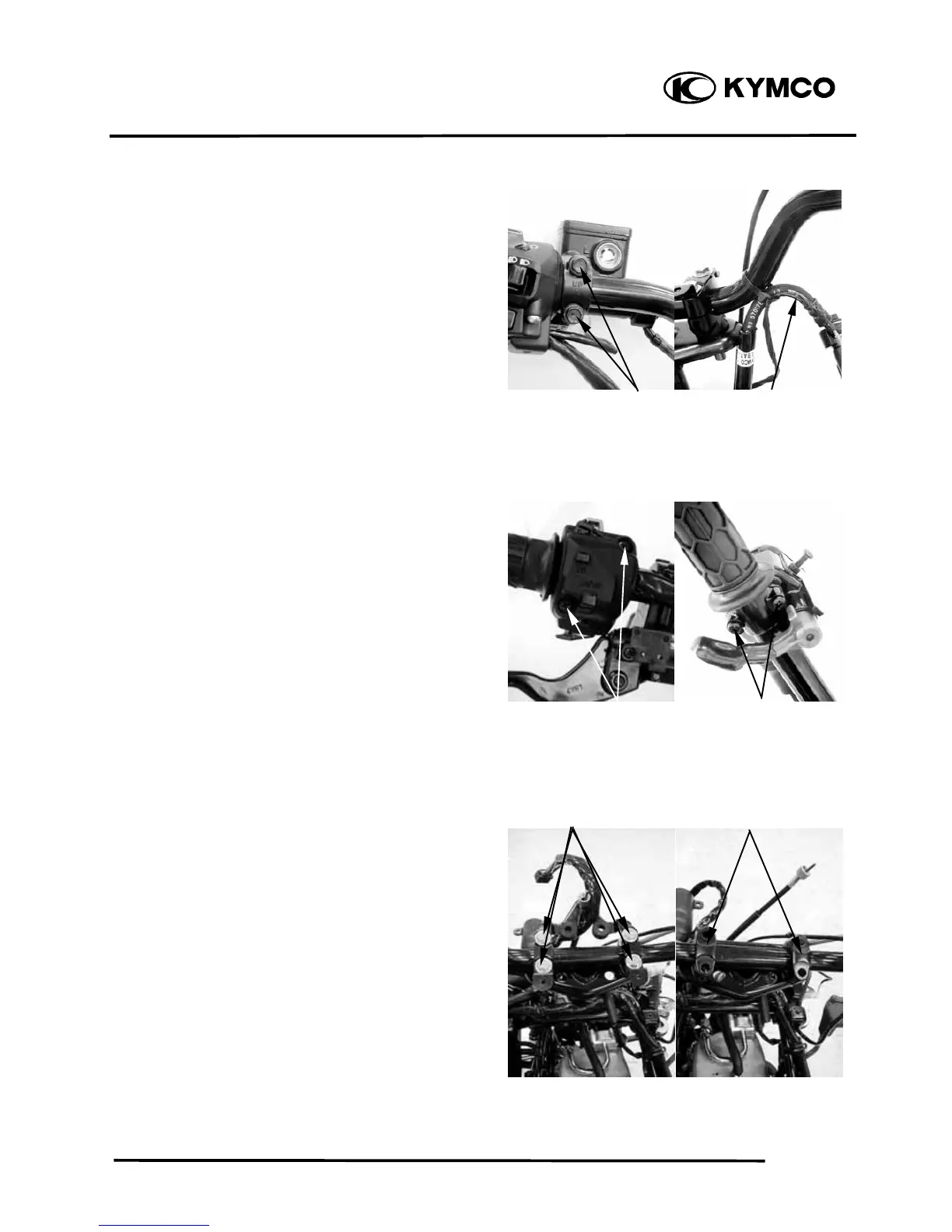

Remove the following parts:
Seat, front cover, fuel tank cover, front
fender and handlebar cover.
Refer to the “FENDERS” section in the
CHAPTER 2
Remove the right and left master cylinder
and remove bands then disconnect the rear
and front fluid tube from the handlebar.
Remove the two screws and remove the
handlebar switch.
Remove the two screws and remove throttle
unit.
Remove the four handlebar holder bolts,
then remove handlebar cover and handlebar
holder.
Bolts Brake Fluid Tube
Screws
Screws
Bolts Handlebar Holde
