14. FRONT WHEEL/FRONT SUSPENSION/
STEERING SYSTEM
14-20
MXU 300/250

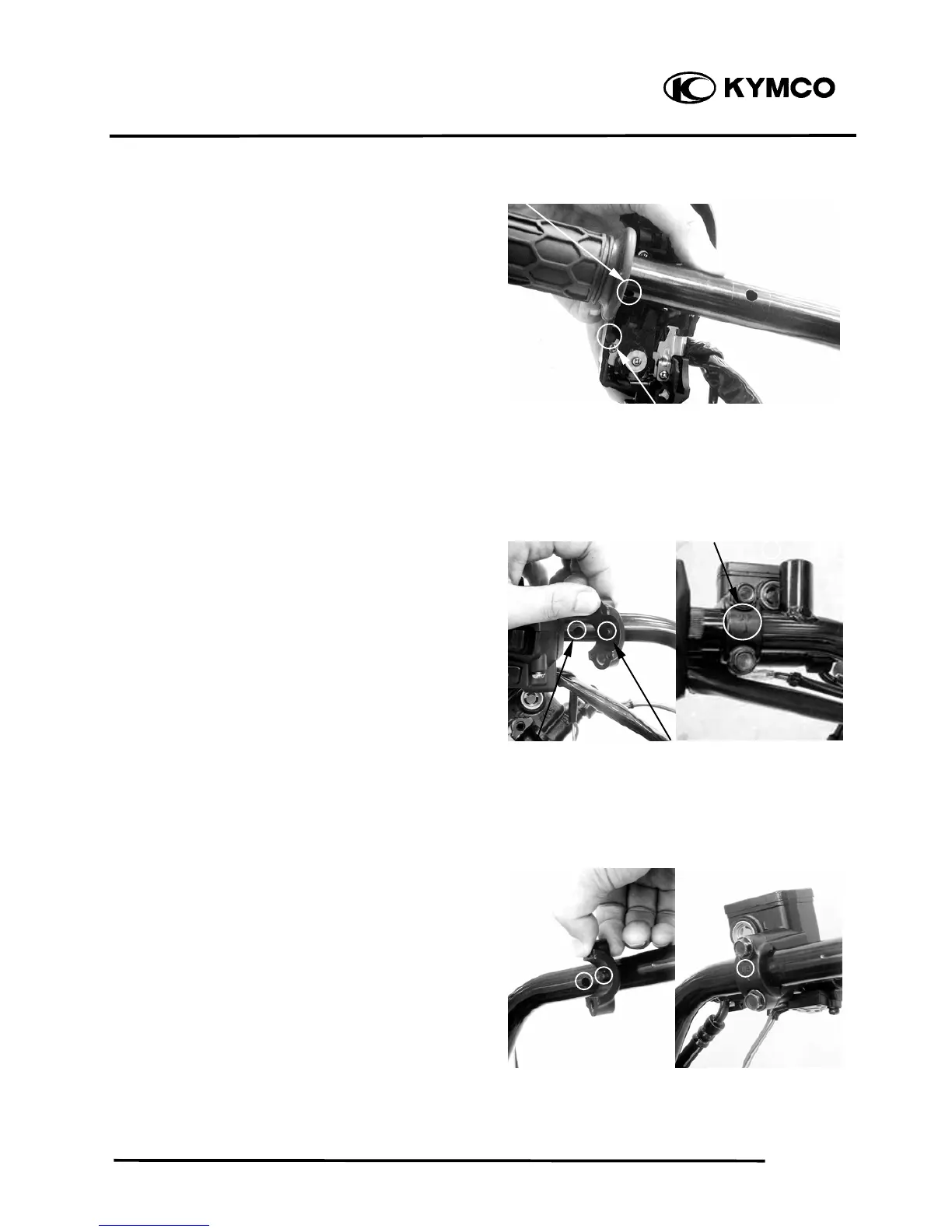

Install the handlebar switch by aligning the
pin on the handlebar switch with the hole in
the handlebar and then tighten the two
screws.
Place the right and left brake master
cylinder on the handlebar and install the
master cylinder holder with the “UP” mark
facing up, aligning the punch mark on the
handlebar with the holder joint seam. First
tighten the upper bolt and then tighten the
lower blot.
Torque: 1.2 kg-m (12 Nm, 8.6 lbf-ft)
Hole
Pin
Joint Sea
