REAR AXLE HUB ASSEMBLY
Install the new bearing and dust seal by
reversing the previous steps.
INSTALLATION
Reverse the “REAR WHEEL/AXLE/AXLE
HUB REMOVAL AND INSPECTION”
procedures.
Install the rear axle hub.
Install the rear axle.
Connect the drive chain.
Install the rear brake disk, collar inner nut,
washer and outer nut.

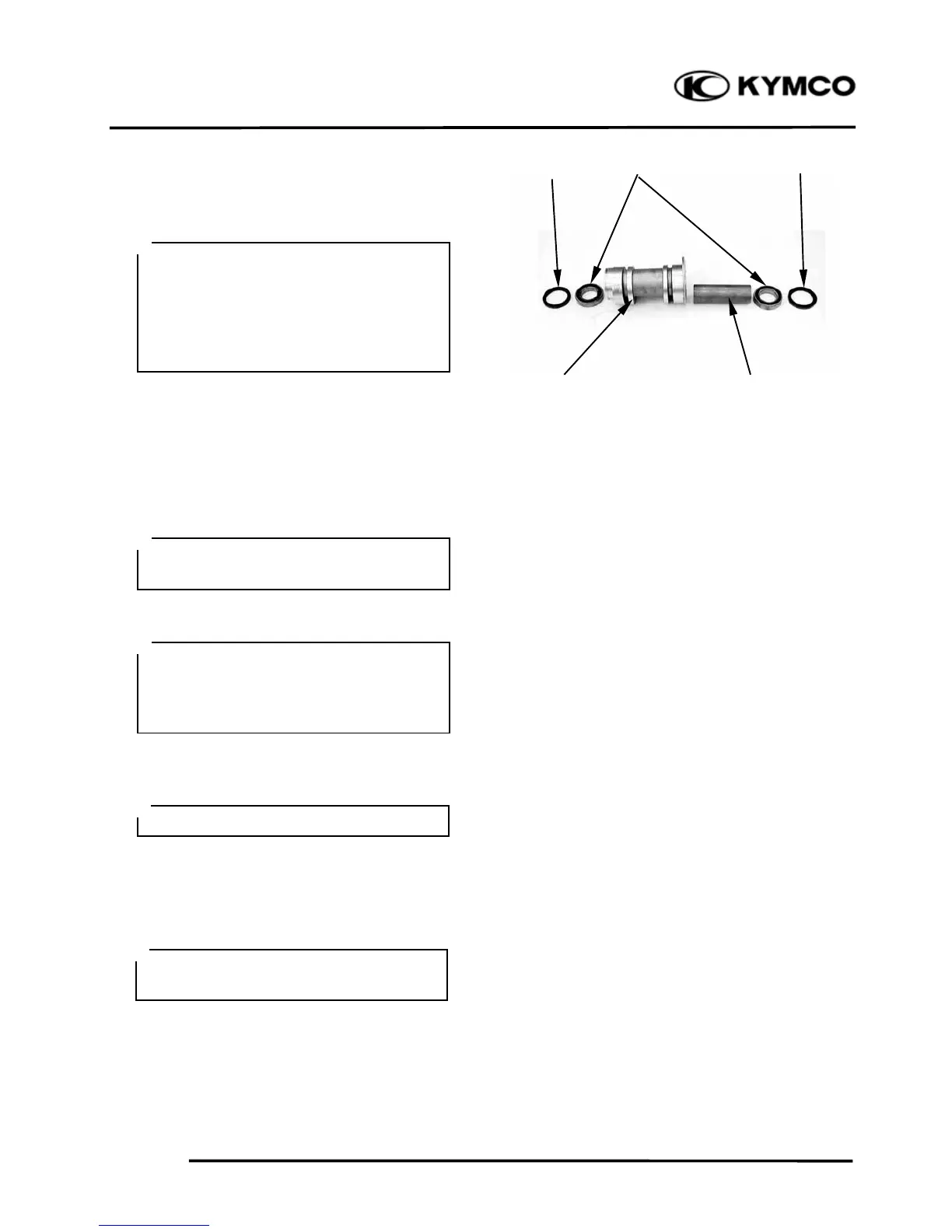

Dust Seal
Dust Seal
Bearing
Rear Axle Hub Distance Colla
r
Do not strike the center race or balls of
the bearing.
Contact should be made only with the
outer race.
Make sure install the distance collar into
the rear axle hub
＊
Apply grease onto the dust seal lips and
bearings.
＊
At this time, the rear axle hub should not
be tightened completely.
Final tightening is done after the chain
slack adjustment.
＊
Apply grease onto the rear axle splines.
＊
At this time, the nuts should not
be tightened completely.
＊
