15. REAR WHEEL/AXLE/SUSPENSION/
DRIVING MECHANISM
15-12
MXU 300/250

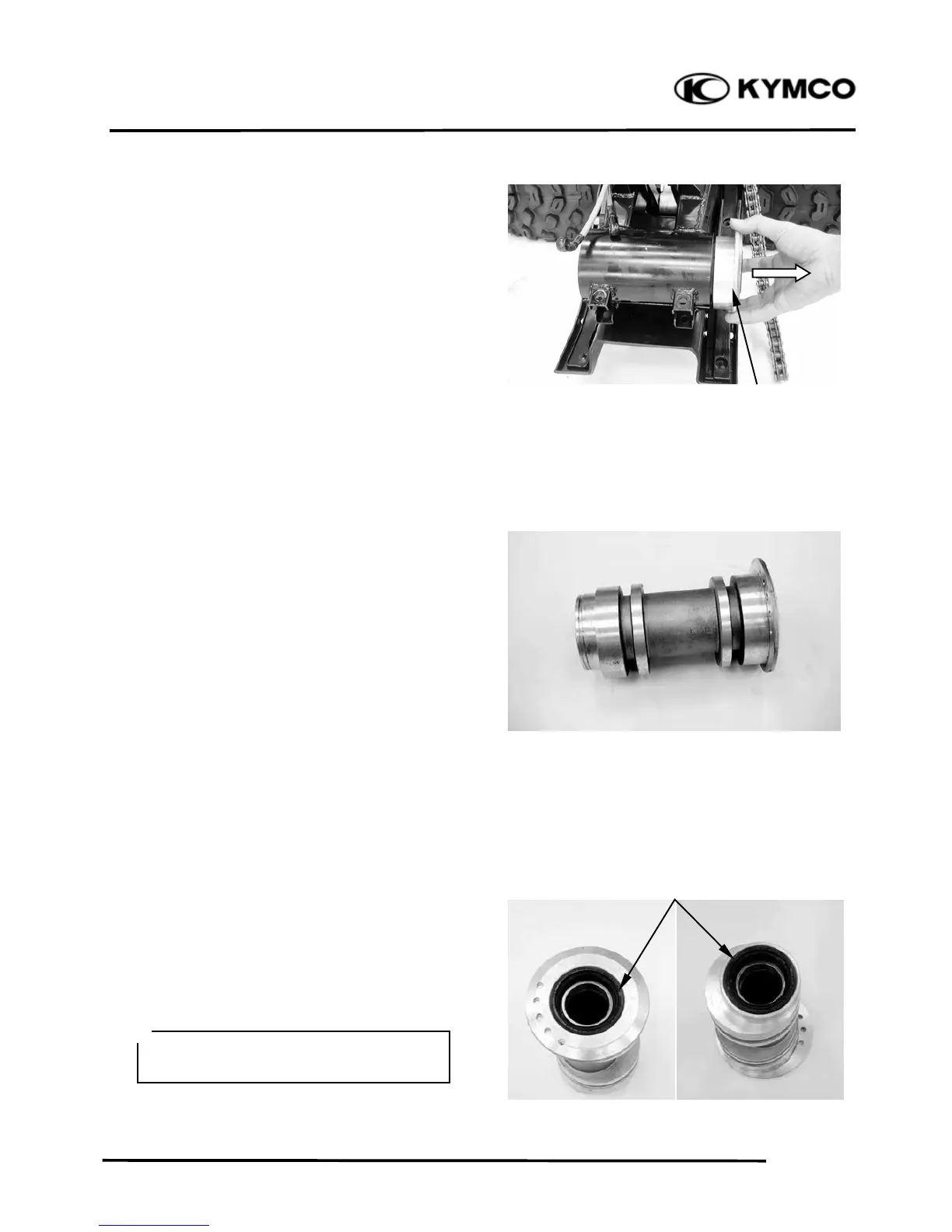

Remove the rear axle hub from right side.
Inspect rear axle hub.
Bearings allow play in the axle hub or the
bearing turns roughly → Replace.
Dust seals is wear/damage → Replace.
Axle hub is cracks/bend/damage →
Replace.
REAR AXLE HUB DISASSEMBLY
Bearing and dust seal replacement steps:
Clean the outside of the rear axle hub.
Remove the dust seal by a flat-head screw
driver.
Remove the bearing by a general bearing
puller.
Rear Axle Hub
Dust Seal
Place a wood block against the outer
edge to protect this edge.
＊
