15. REAR WHEEL/AXLE/SUSPENSION
DRIVING MECHANISM
15-11
MXU 300/250

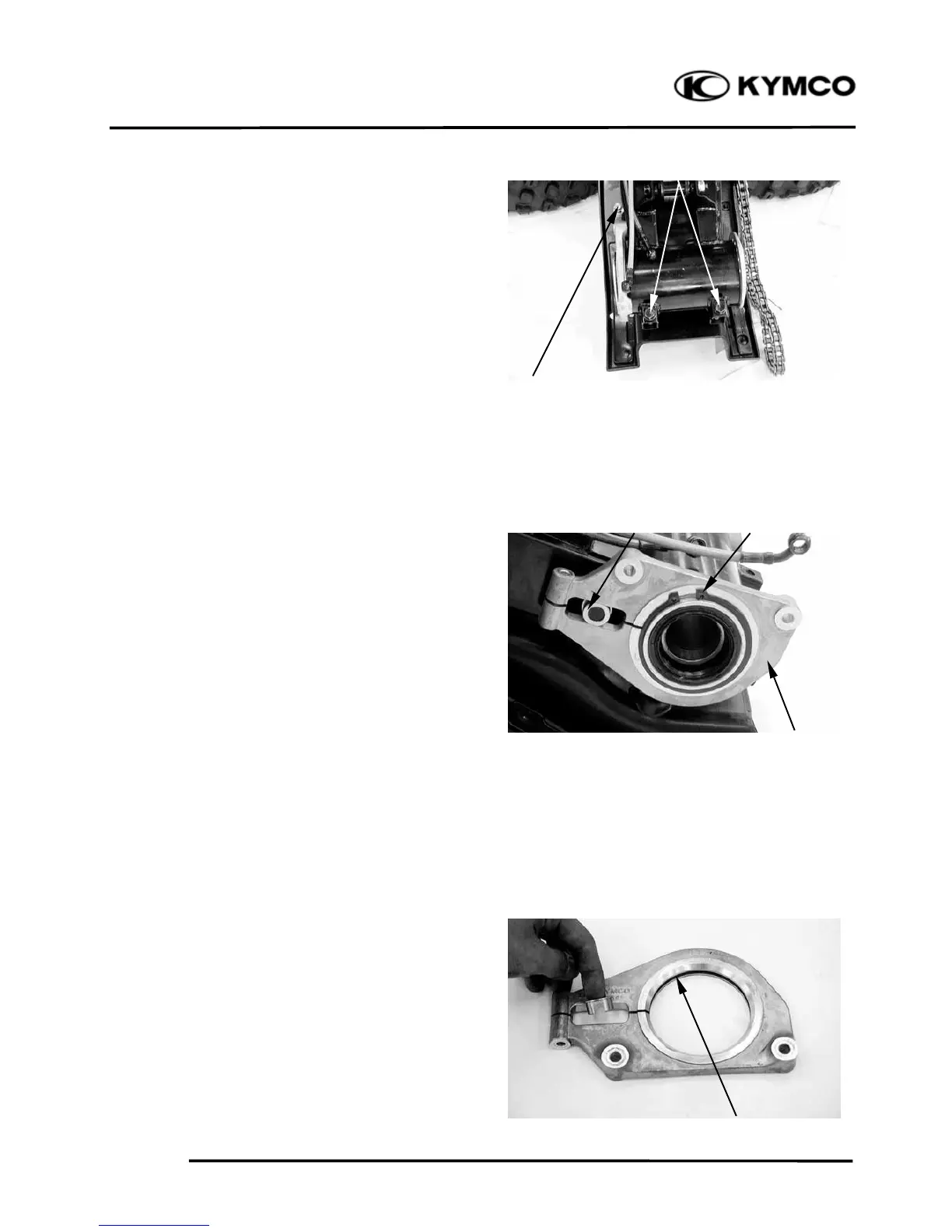

Remove the bolt at the rear caliper holder.
Remove the two bolts attaching the rear
axle hub at the rear fork.
Remove the circlip at the caliper holder and
then remove the caliper holder and collar.
Inspect the O-ring for damage.
Apply grease to the O-ring before the
caliper holder is installed.
Bol
t
Bolts
CirclipColla
r
Caliper Holde
r
O-ring
