15. REAR WHEEL/AXLE/SUSPENSION/
DRIVING MECHANISM
15-10
MXU 300/250

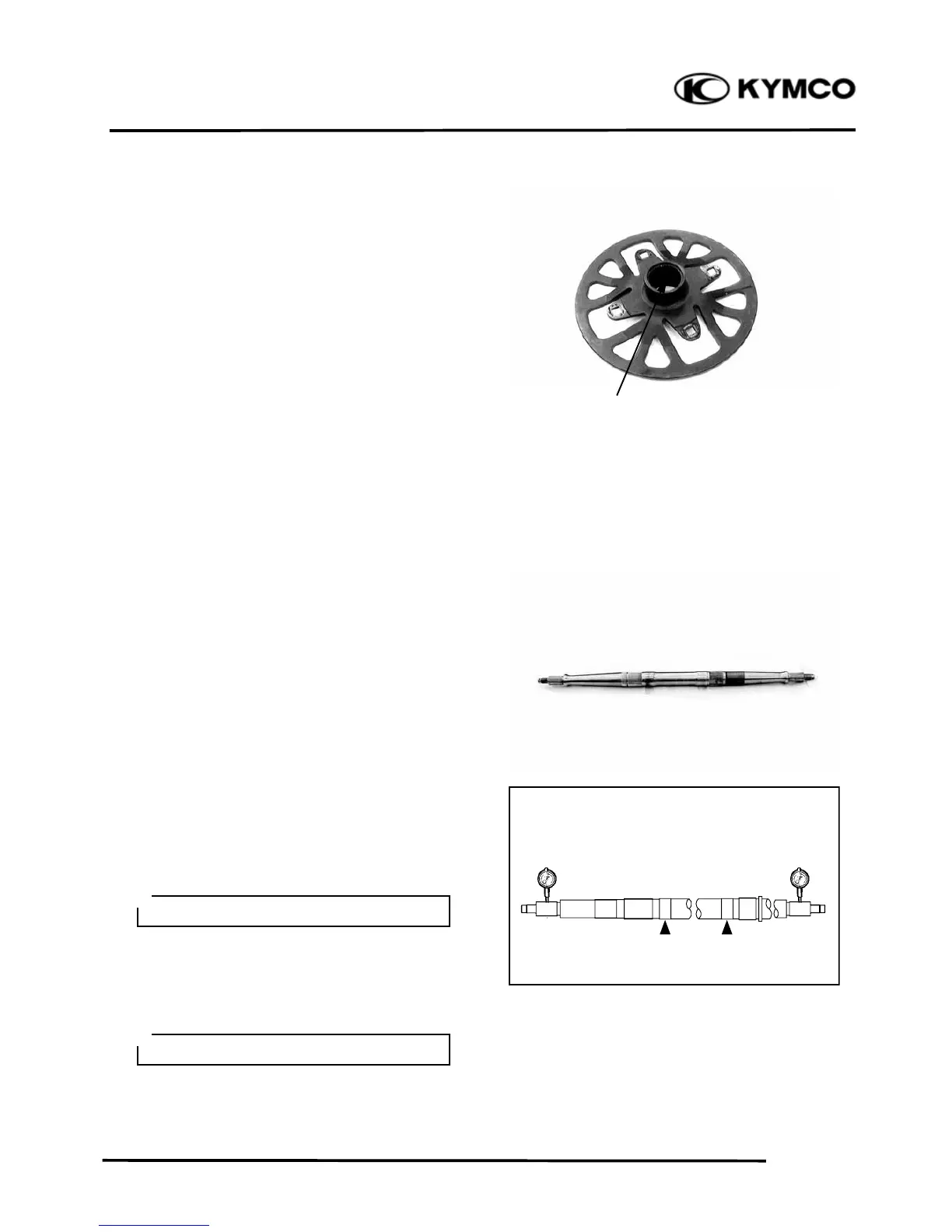

Inspect the driven sprocket holder splines.
Wear/damage → Replace.
Inspect the rear axle.
Scratched (excessively)/damage → Replace.
Inspect the splines and threads of the rear
axle
Wear/damage → Replace.
Measure the rear axle run out.
Service limit: less than 1.5 mm (0.06 in)
Out of specification → Replace.
REAR AXLE ASSEMBLY
Reverse the “REAR AXLE
DISASSEMBLY” procedures.
Splines
Do not attempt to straighten a bent axle.
＊
Apply grease onto the rear axle splines.
＊
