15. REAR WHEEL/AXLE/SUSPENSION/
DRIVING MECHANISM
15-20
MXU 300/250

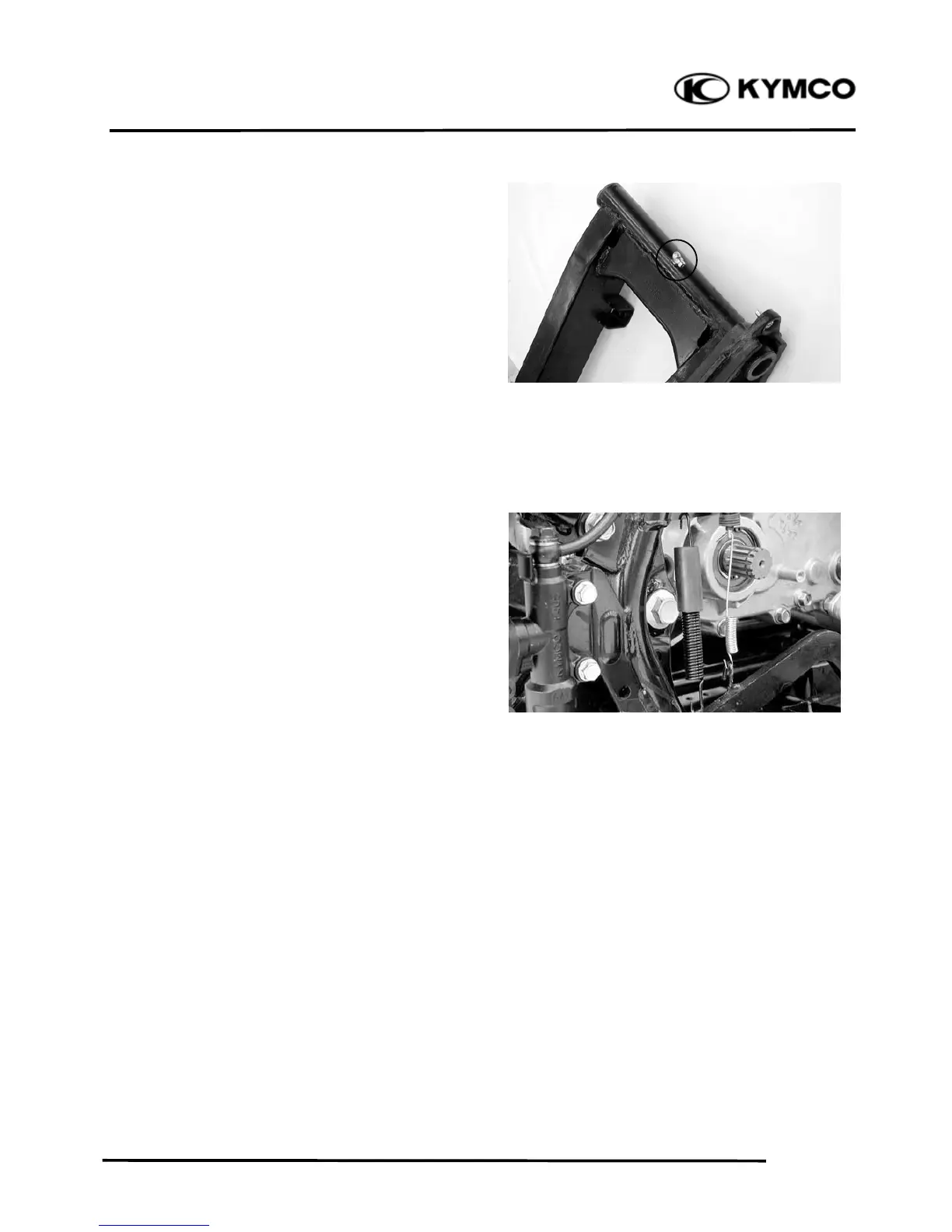

INSTALLATION
Reverse the “SWIMARM (MXU 250)
REMOVAL AND INSPECTION”
procedure.
Apply grease onto the collar, bush, pivot
bolt and thrust cover.
Install the swingarm and drive chain.
Install the pivot bolt and tightening the nut
and pivot bolt.
Torque: 7 kgf-m (70 Nm, 50 lbf-ft)
Install the shock absorber (page 15-15).
Install the rear hub and rear wheels.
Refer to the “REAR WHEEL
INSTALLATION” section.
Adjust the drive chain slack.
Refer to the “DRIVE CHAIN SLACK
ADJUSTMENT” section in the CHAPTER
3.
Drive chain slack: 30 ~ 40mm
