15. REAR WHEEL/AXLE/SUSPENSION
DRIVING MECHANISM
15-19
MXU 300/250

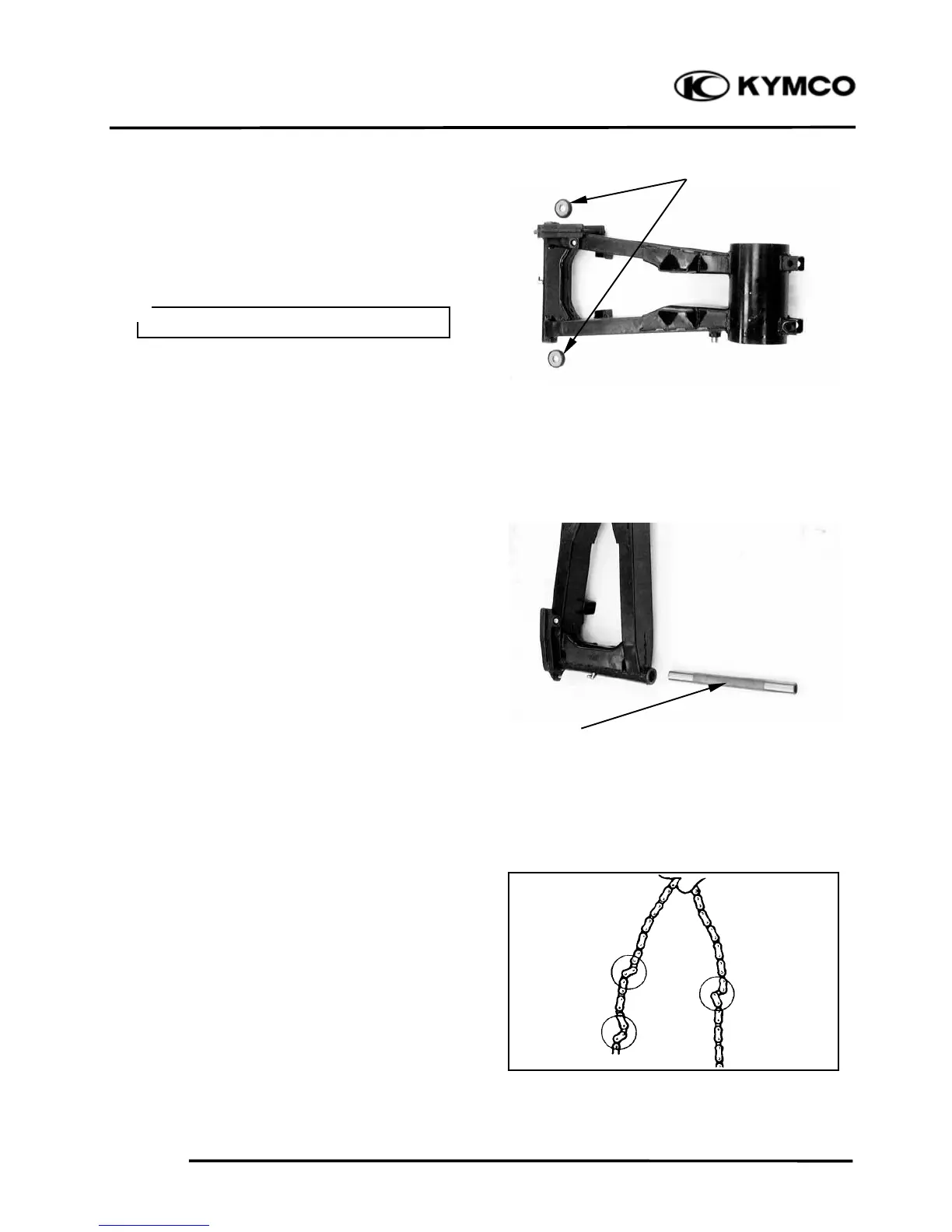

Inspect the swingarm.
Crack/bend/damage → Replace.
Roll the pivot bolt on a flat surface to
inspect the pivot shaft.
Bends → Replace.
Inspect the thrust covers, collar and bushes.
Wear/damage → Replace.
Inspect the drive chain stiffness.
Stiff →Clean and lubricate or replace.
Thrust Covers
Colla
r
Do not attempt to straighten a bent
b
olt.
＊
