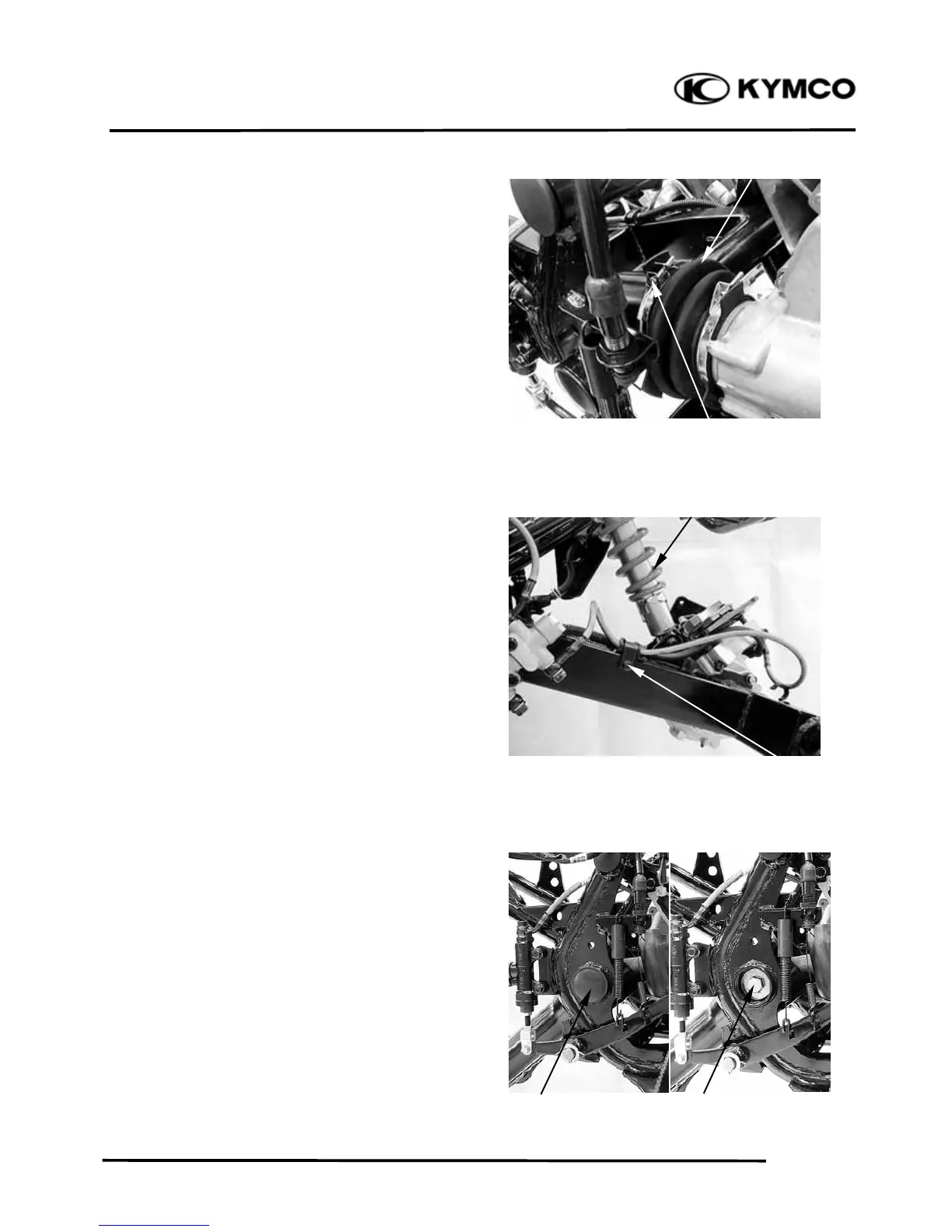

Loosen the joint boot band screw of the
swingarm side. Remove the joint boot from
the swingarm.
Remove the rear shock absorber (page 15-
15).
Remove the bolt and band, then disconnect
the rear brake fluid hoses from the
swingarm.
Remove the swingarm pivot bolt cap.
Remove the right pivot bolt.
Scerw (Swingarm side)
Cap Pivot Bol
t
Bolt/Band
Rear Shock Absorbe
r
Joint Boo
t
