15. REAR WHEEL/AXLE/SUSPENSION
DRIVING MECHANISM
15-23
MXU 300/250

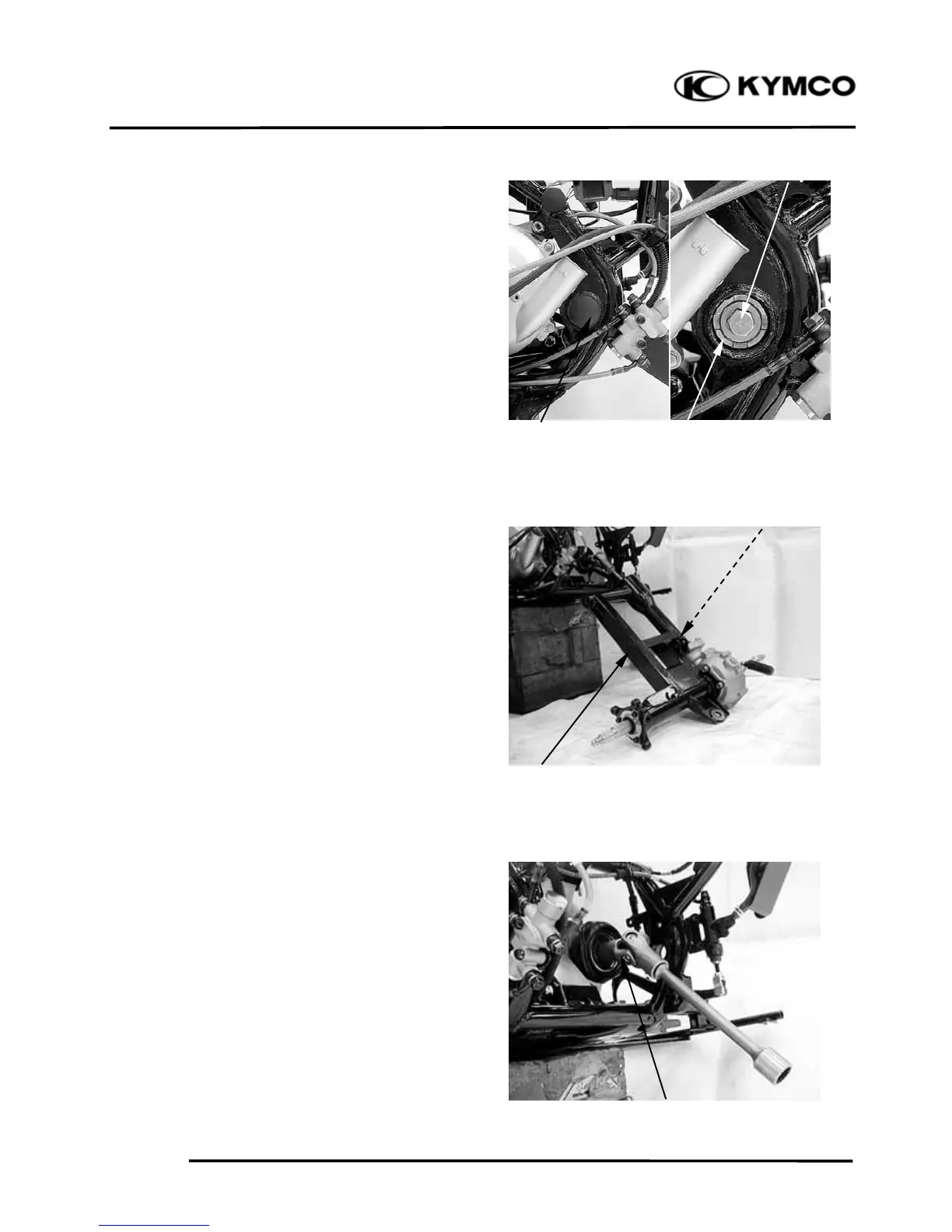

Remove the swingarm pivot bolt cap.
Remove the left pivot lock nut using the
special tool.
Special tool: Lock nut wrench F013
Remove the left pivot adjusting bolt.
Remove the swingarm, then take spring out
from the swingarm.
Disengage the universal joint from the
secondary driven bevel gear shaft splines.
Cap Lock Nu
t
Pivot Adjusting Bol
t
Universal Join
t
Spring
Swingar
m
