15. REAR WHEEL/AXLE/SUSPENSION
DRIVING MECHANISM
15-35
MXU 300/250

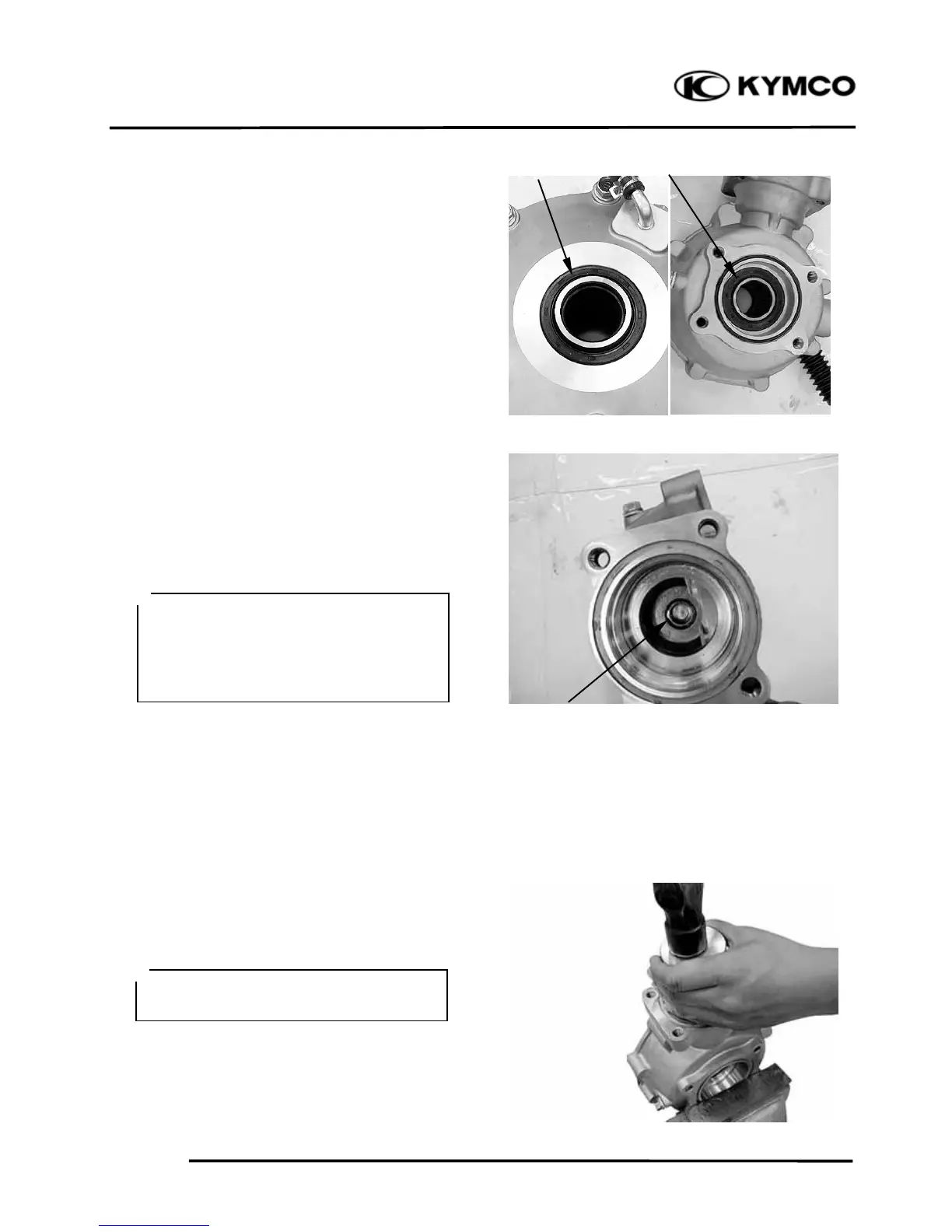

Apply grease to new oil seal lips.
Install each oil seal with the flat side facing
out until it is flush with the case or cover.
PINION NEEDLE BEARING
Remove the pinion gear (page 15-32).
Remove the snap ring.
Heat the gear case to 80° (176°F) and
remove needle bearing.
Drive the needle bearing into the case.
Install the snap ring.
Apply molybdenum disulfide grease to the
needle bearing.
PINION GEAR INSTALLATION
Drive he pinion assembly into the gear case.
Oil Seal Oil Seal
Snap Ring/Needle Bearing
Be sure to wear heavy gloves to avoid
burns when handling the heated case
cover.
Using a torch to heat the case cover may
cause warpage.
＊
Keep the driver centered with the
bearing outer race during installation.
＊
To Next Page
