15. REAR WHEEL/AXLE/SUSPENSION/
DRIVING MECHANISM
15-34
MXU 300/250

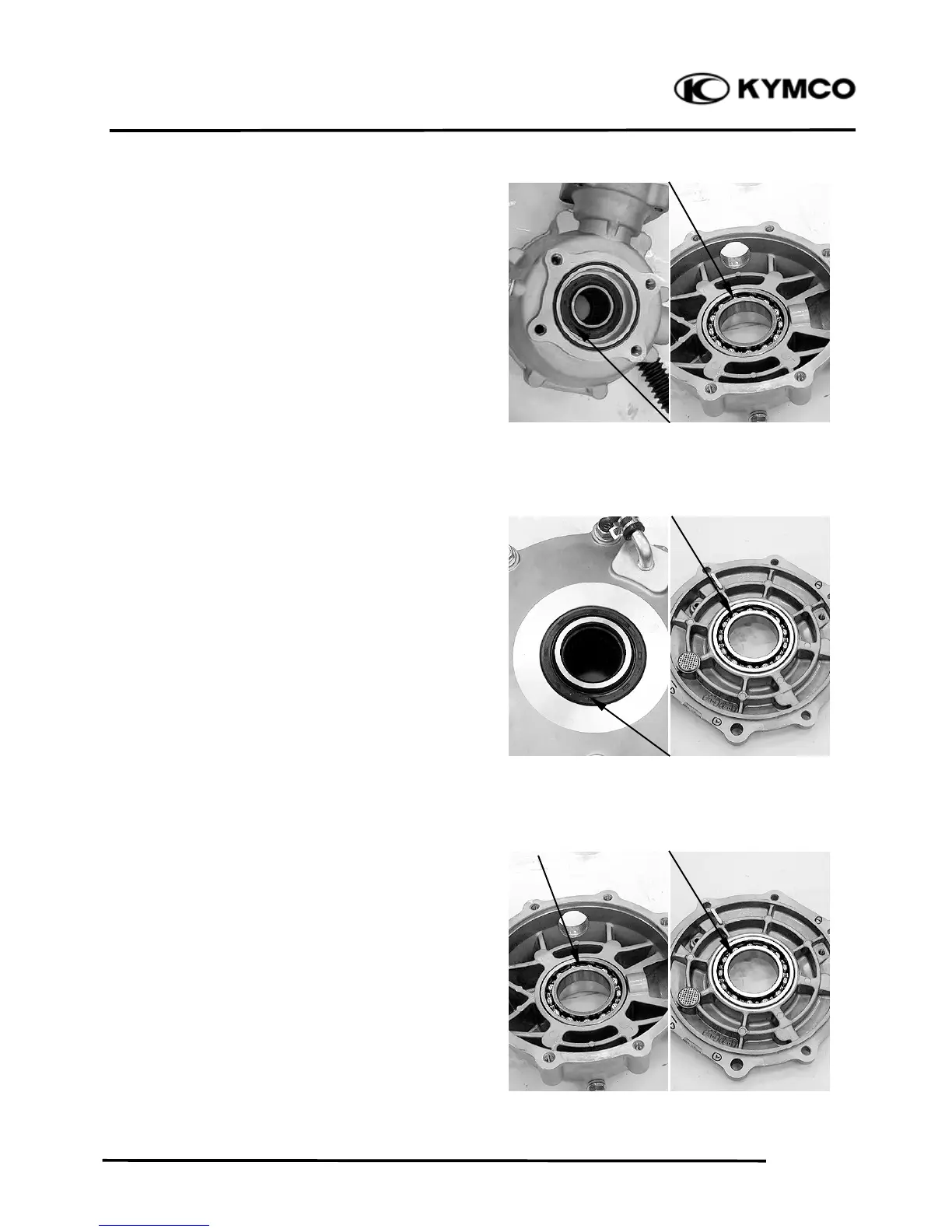

FINAL GEAR CASE BEARING
REPLACEMENT
CASE BEARING:
Remove the oil seal.
Drive the ring gear bearing out of the case.
CASE COVER BEARING:
Remove the oil seal.
Drive the ring gear bearing out of the case
cover.
Drive each bearing into the case and cover.
Oil Seal
Bearing
Bearing Bearing
Oil Seal
Bearing
