15. REAR WHEEL/AXLE/SUSPENSION
DRIVING MECHANISM
15-41
MXU 300/250

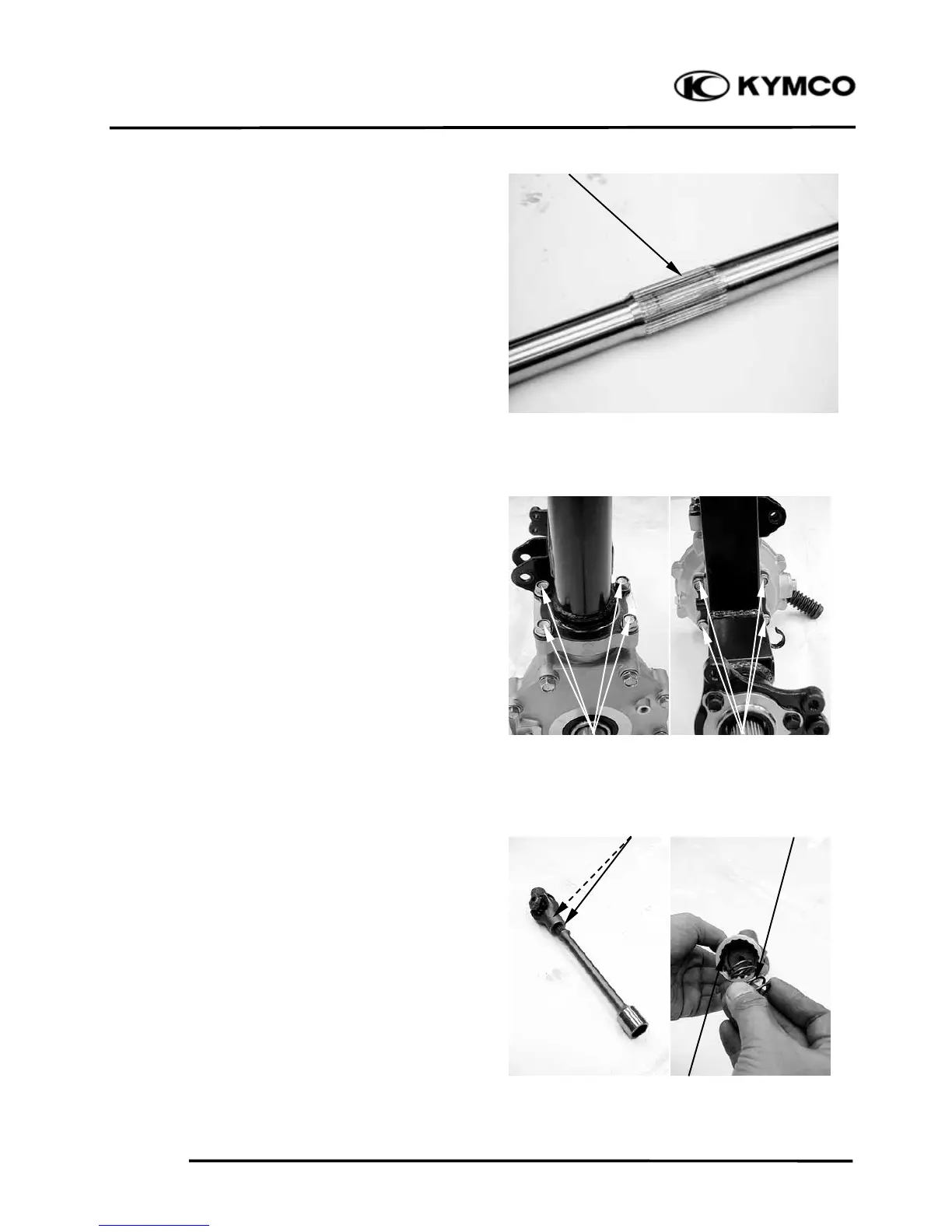

Apply molybdenum disulfide grease to the
center splines of the rear axle.
Install the rear axle into the final gear case
from left side until it is fully seated.
Install the rear axle into the axle housing
from swingarm right side and install final
gear case.
Install and tighten the mounting bolts in
several steps to the specified torque.
Torque: 55 N-m (5.5 kgf-m, 40 lbf-ft)
Apply molybdenum disulfide grease to the
universal joint splines and the drive shaft
splines.
Apply molybdenum disulfide grease to the
drive shaft splines.
Install the spring into the drive shaft
Apply Grease
Bolts Bolts
Apply Grease
Apply Grease Spring
To Next Page
