18. STARTING SYSTEM
18-6
MXU 300/250

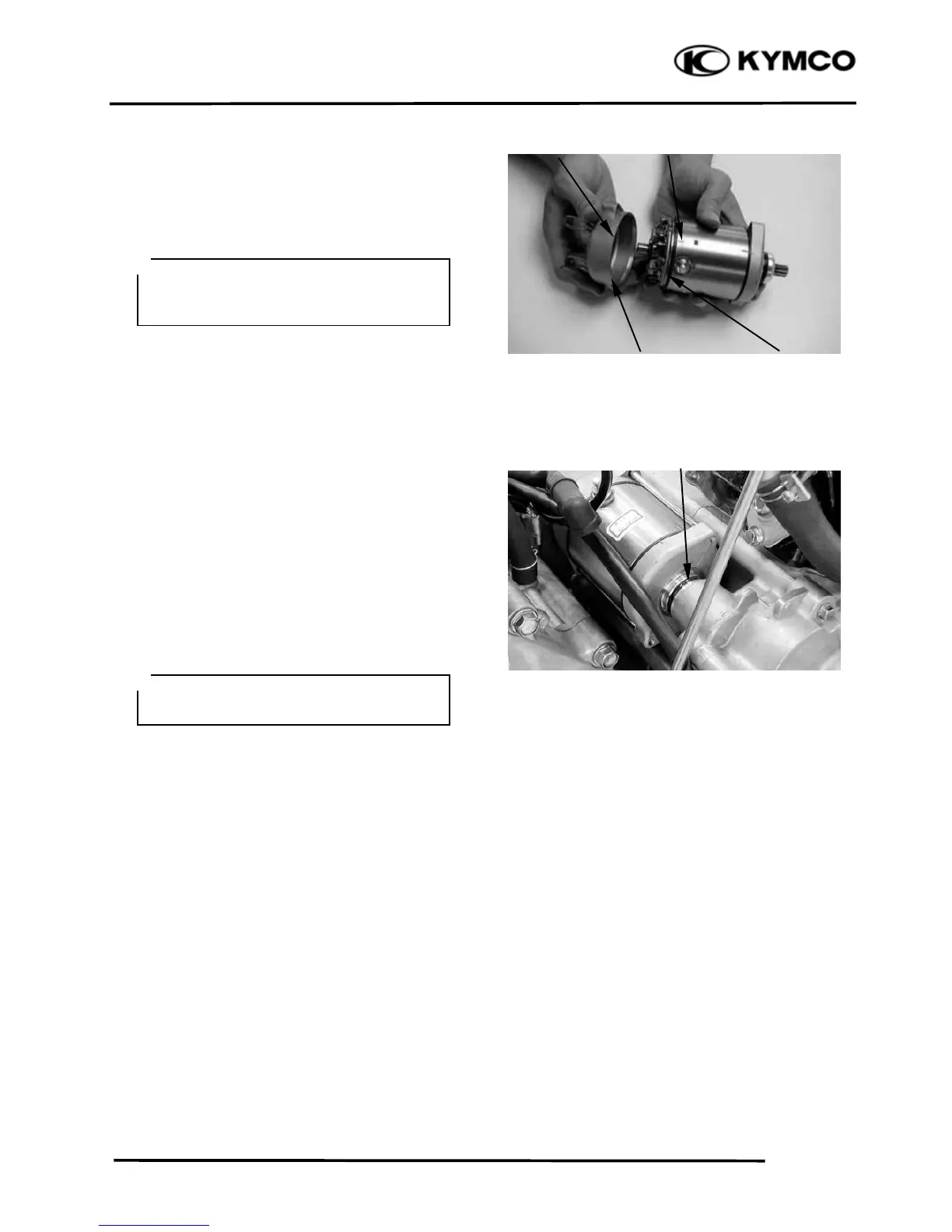

Install a new O-ring to the front cover.
Install the starter motor case, aligning the
tab on the motor case with the groove on the
front cover.
Tighten the starter motor case screws.
STARTER MOTOR INSTALLATION
Connect the starter motor cable connector
and properly install the waterproof rubber
jacket.
Check the O-ring for wear or damage and
replace if necessary.
Apply grease to the O-ring and install the
starter motor.
Tighten the two mounting bolts.
Torque: 0.8～1.2kgf-m
Groove
Motor Case
O-rin
g
O-rin
g
Tab
When assembling the front cover and
motor case, slightly press down the
armature shaft to assemble them.
＊
The starter motor cable connector must
be installed properly.
＊
