2. FRAME COVERS/EXHAUST MUFFLER
2-6
MXU 300/250

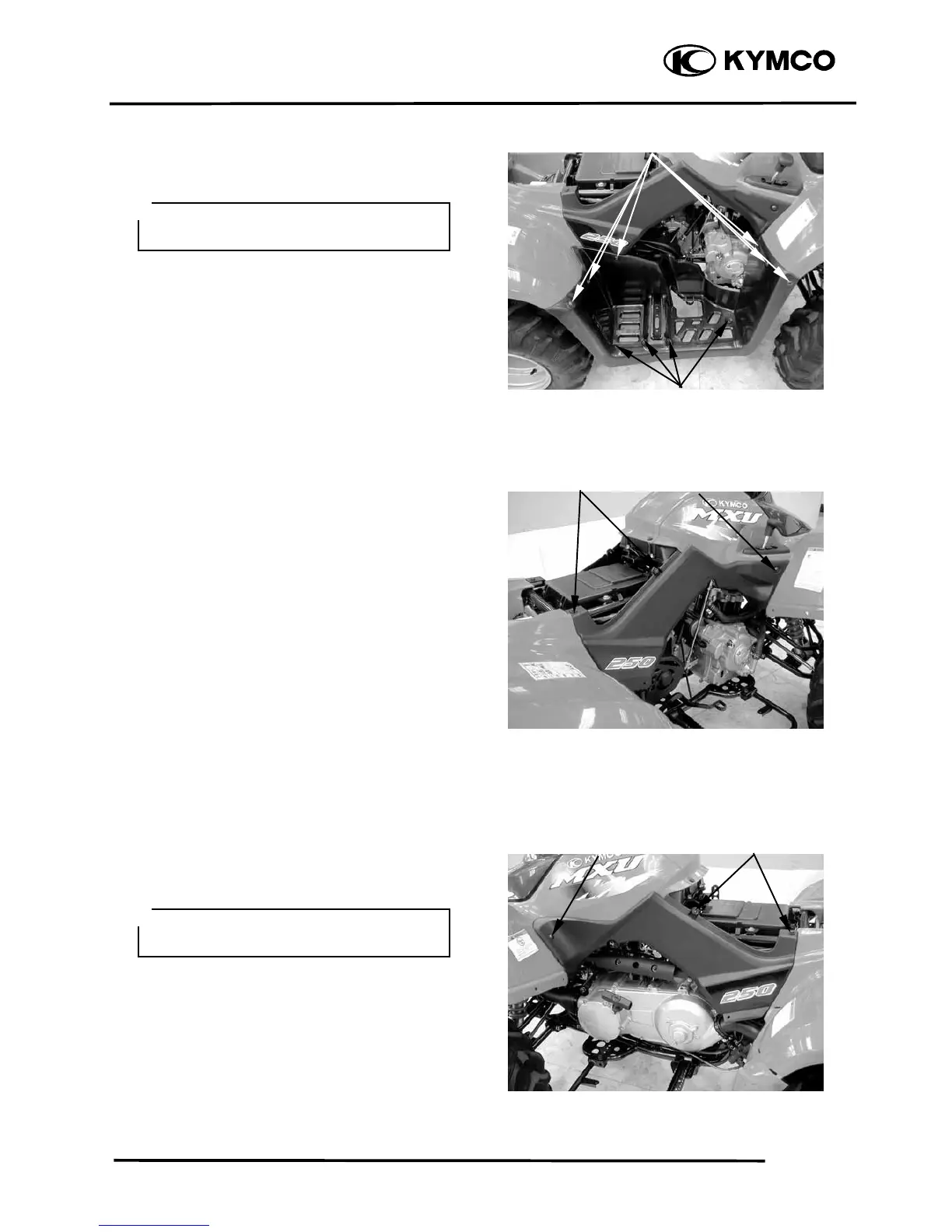

Remove 6 screws/nuts, 4 mounting bolts
and the right footboard.
Installation is in the reverse order of
removal.
RIGHT/LEFT SIDE COVER
REMOVAL/INSTALLATION
Open the seat (see page 2-3).
Remove the right/left footboard (see page 2-
5).
Remove the screw, two mounting bolts and
right side cover.
Remove the screw, two mounting bolts and
left side cover.
Installation is in the reverse order of
removal.
Mounting Bolts
Screws/Nuts
Screw Bolts
Bolts Screw
During removal, do not pull the joint
claws forcedly to avoid damage.
＊
During removal, do not pull the joint
claws forcedly to avoid damage.
＊
To Next Page
